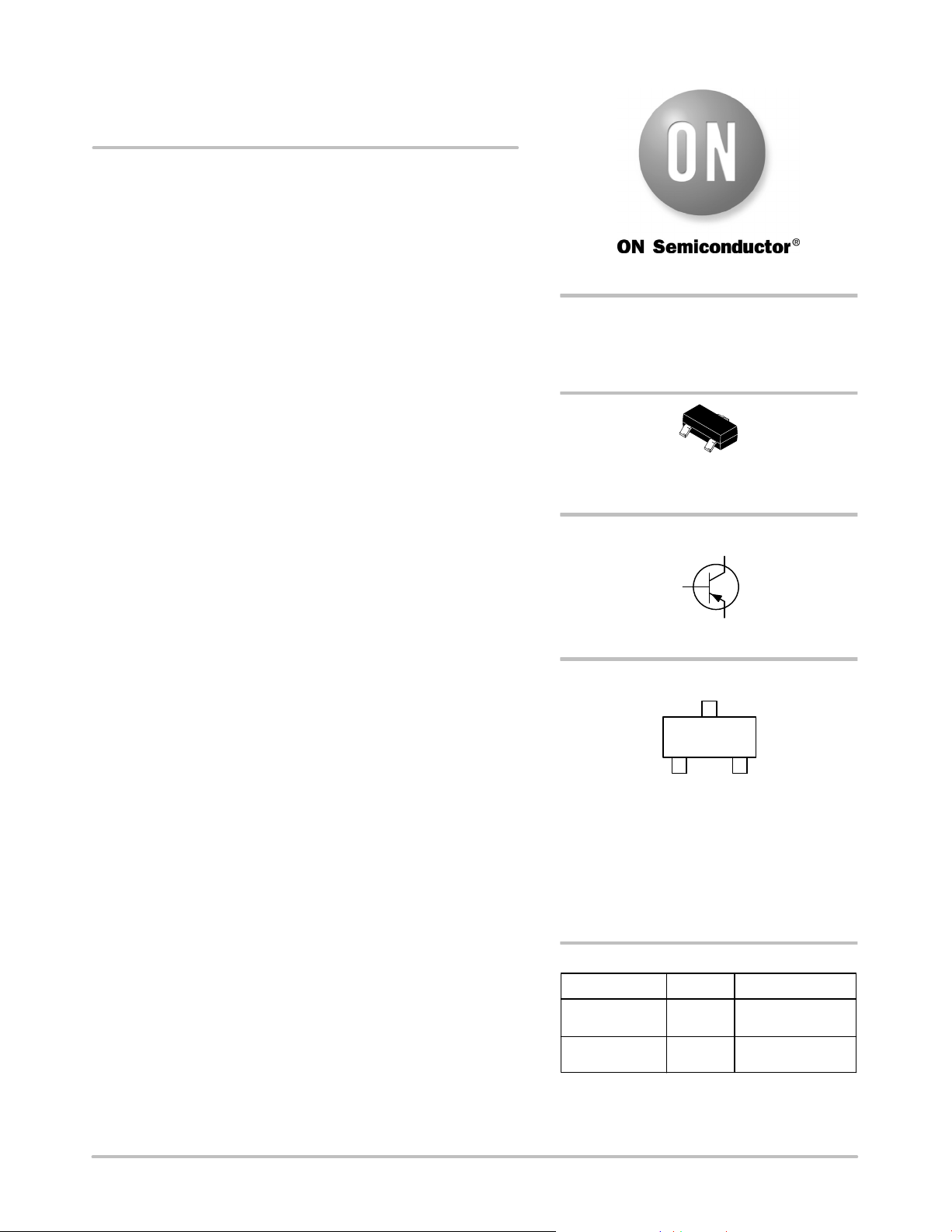

Semiconductor Components Industries, LLC, 2011
November, 2011 − Rev. 5
1 Publication Order Number:
NSS40200L/D
NSS40200LT1G,
NSV40200LT1G
40 V, 4.0 A, Low V
CE(sat)
PNP Transistor
ON Semiconductor’s e
2
PowerEdge family of low V
CE(sat)
transistors are miniature surface mount devices featuring ultra low
saturation voltage (V
CE(sat)
) and high current gain capability. These
are designed for use in low voltage, high speed switching applications
where affordable efficient energy control is important.
Typical applications are DC−DC converters and power management
in portable and battery powered products such as cellular and cordless
phones, PDAs, computers, printers, digital cameras and MP3 players.
Other applications are low voltage motor controls in mass storage
products such as disc drives and tape drives. In the automotive
industry they can be used in air bag deployment and in the instrument
cluster. The high current gain allows e
2
PowerEdge devices to be
driven directly from PMU’s control outputs, and the Linear Gain
(Beta) makes them ideal components in analog amplifiers.
Features
AEC−Q101 Qualified and PPAP Capable
NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
NSS40200LT1G SOT−23
(Pb−Free)
3,000 / Tape & Reel
MARKING DIAGRAM
COLLECTOR
3
1
BASE
2
EMITTER
SOT−23 (TO−236)
CASE 318
STYLE 6
http://onsemi.com
−40 VOLTS
4.0 AMPS
PNP LOW V
CE(sat)
TRANSISTOR
EQUIVALENT R
DS(on)
80 mW
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
1
VA M G
G
VA = Specific Device Code*
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Specific Device Code, Date Code or overbar
orientation and/or location may vary
depending upon manufacturing location.
This is a representation only and actual
devices may not match this drawing exactly.
NSV40200LT1G SOT−23
(Pb−Free)
3,000 / Tape & Reel
