Semiconductor Components Industries, LLC, 2011
November, 2011 − Rev. 6
1 Publication Order Number:
BAT54HT1/D

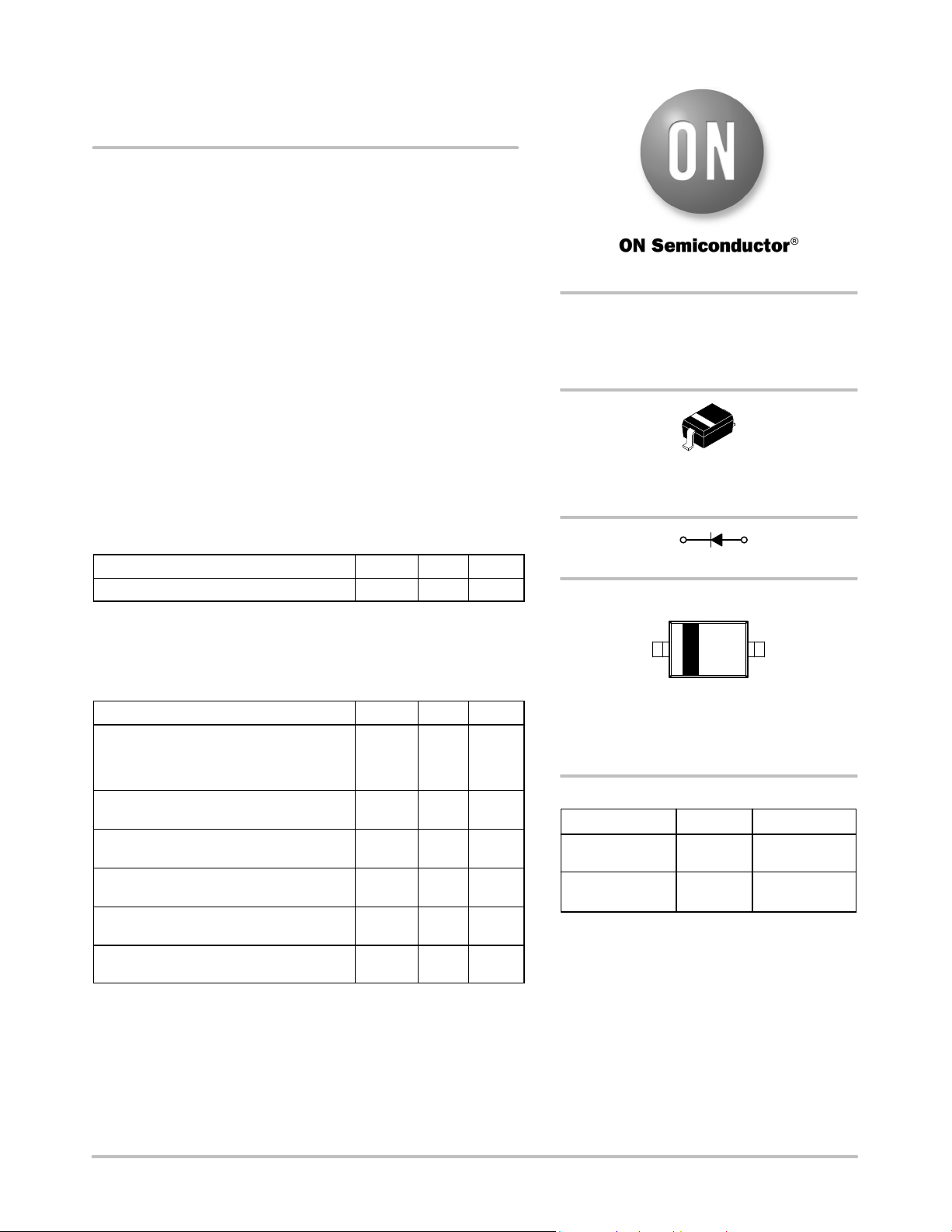

BAT54HT1G,
NSVBAT54HT1G
Schottky Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
Features
Extremely Fast Switching Speed
Low Forward Voltage − 0.35 V (Typ) @ I
F
= 10 mAdc
Device Marking: JV
AEC Qualified and PPAP Capable
NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS (T
J
= 125C unless otherwise noted)
Rating
Symbol Value Unit
Reverse Voltage V
R
30 V
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Total Device Dissipation FR−5 Board,
(Note 1)
T
A
= 25C
Derate above 25C
P
D
200
1.57
mW
mW/C
Forward Current (DC) I
F
200
Max
mA
Non−Repetitive Peak Forward Current,
t
p
< 10 msec
I
FSM
600
mA
Repetitive Peak Forward Current
Pulse Wave = 1 sec, Duty Cycle = 66%
I
FRM
300
mA
Thermal Resistance
Junction−to−Ambient
R
q
JA
635
C/W
Junction and Storage Temperature Range T
J
, T
stg
−55
to150
C
1. FR−4 Minimum Pad
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
30 VOLT SILICON
HOT−CARRIER DETECTOR
AND SWITCHING DIODES
Device Package Shipping
†
ORDERING INFORMATION
SOD−323
CASE 477
STYLE 1
1
CATHODE
2
ANODE
MARKING DIAGRAM
http://onsemi.com
BAT54HT1G SOD−323
(Pb−Free)
3,000 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
JVM G
G
2
1
JV = Device Code
M = Date Code
G = Pb−Free Package
(Note: Microdot may be in either location)
NSVBAT54HT1G SOD−323
(Pb−Free)
3,000 /
Tape & Reel
