I
LOAD
R
SHUNT
V
BUS
–
+
V
OUT
V
CC
R
L
R
1
R
2
R
4
R
3
R
5
R
6
V
CC
V
CC
Copyright © 2016, Texas Instruments Incorporated
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
Reference
Design
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
OPA330
,
OPA2330
,
OPA4330
SBOS432G –AUGUST 2008–REVISED AUGUST 2016
OPAx330 50-μV V
OS
, 0.25-μV/°C, 35-μA CMOS Operational Amplifiers
Zero-Drift Series
1
1 Features
1
• Unmatched Price Performance
• Low Offset Voltage: 50 µV (Maximum)
• Zero Drift: 0.25 µV/°C (Maximum)
• Low Noise: 1.1 µV
PP
, 0.1 Hz to 10 Hz
• Quiescent Current: 35 µA (Maximum)
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input and Output
• Internal EMI Filtering
• microSize Packages: DSBGA, SC70, VQFN
2 Applications
• Battery-Powered Instruments
• Temperature Measurements
• Transducer Applications
• Electronic Scales
• Medical Instrumentation
• Handheld Test Equipment
• Current Sense

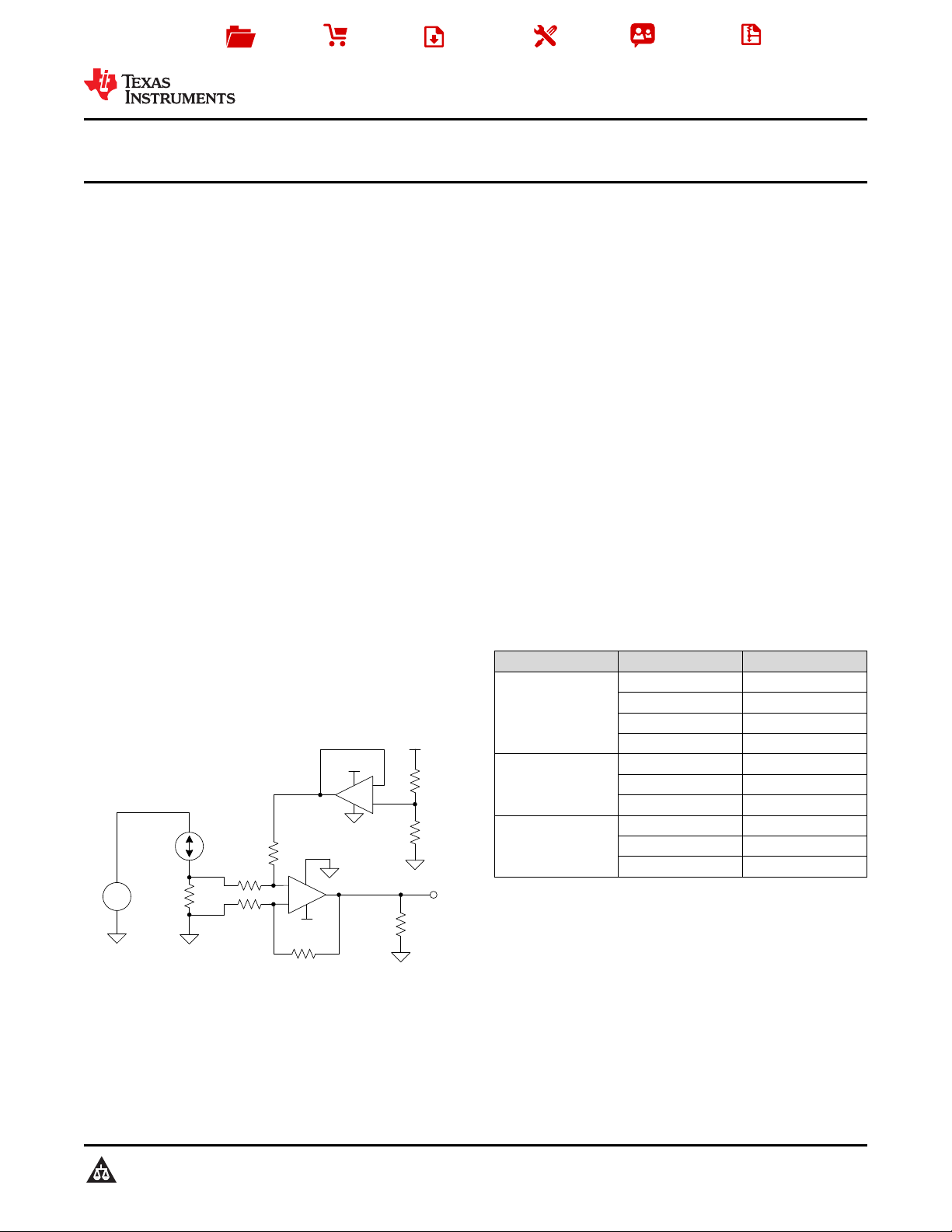

Bidirectional, Low-Side Current Sense
3 Description
The OPA330 series of CMOS operational amplifiers
offer precision performance at a very competitive
price. These devices are members of the Zero-Drift
family of amplifiers which use a proprietary auto-
calibration technique to simultaneously provide low
offset voltage (50-μV maximum) and near-zero drift
over time and temperature at only 35 μA (maximum)
of quiescent current. The OPA330 family features rail-
to-rail input and output in addition to near-flat 1/f
noise, making this amplifier ideal for many
applications and much easier to design into a system.
These devices are optimized for low-voltage
operation as low as 1.8 V (±0.9 V) and up to 5.5 V
(±2.75 V).
The OPA330 (single version) is available in the 5-pin
DSBGA, 5-pin SC70, 5-pin SOT-23, and 8-pin SOIC
packages. The OPA2330 (dual version) is offered in 3
mm × 3 mm, 8-pin SON, 8-pin VSSOP, and 8-pin
SOIC packages. The OPA4330 is offered in the
standard 14-pin SOIC and 14-pin TSSOP packages,
as well as in the space-saving 14-pin VQFN package.
All versions are specified for operation from –40°C to
125°C.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
OPA330
SOIC (8) 4.90 mm × 3.91 mm
SOT (5) 2.90 mm × 1.60 mm
SC70 (5) 2.00 mm × 1.25 mm
DSBGA (5) 0.00 mm × 0.00 mm
OPA2330
SOIC (8) 4.90 mm × 3.91 mm
VSSOP (8) 3.00 mm × 3.00 mm
SON (8) 3.00 mm × 3.00 mm
OPA4330
SOIC (14) 8.65 mm × 3.91 mm
TSSOP (14) 5.00 mm × 4.40 mm
VQFN (14) 3.50 mm × 3.50 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
