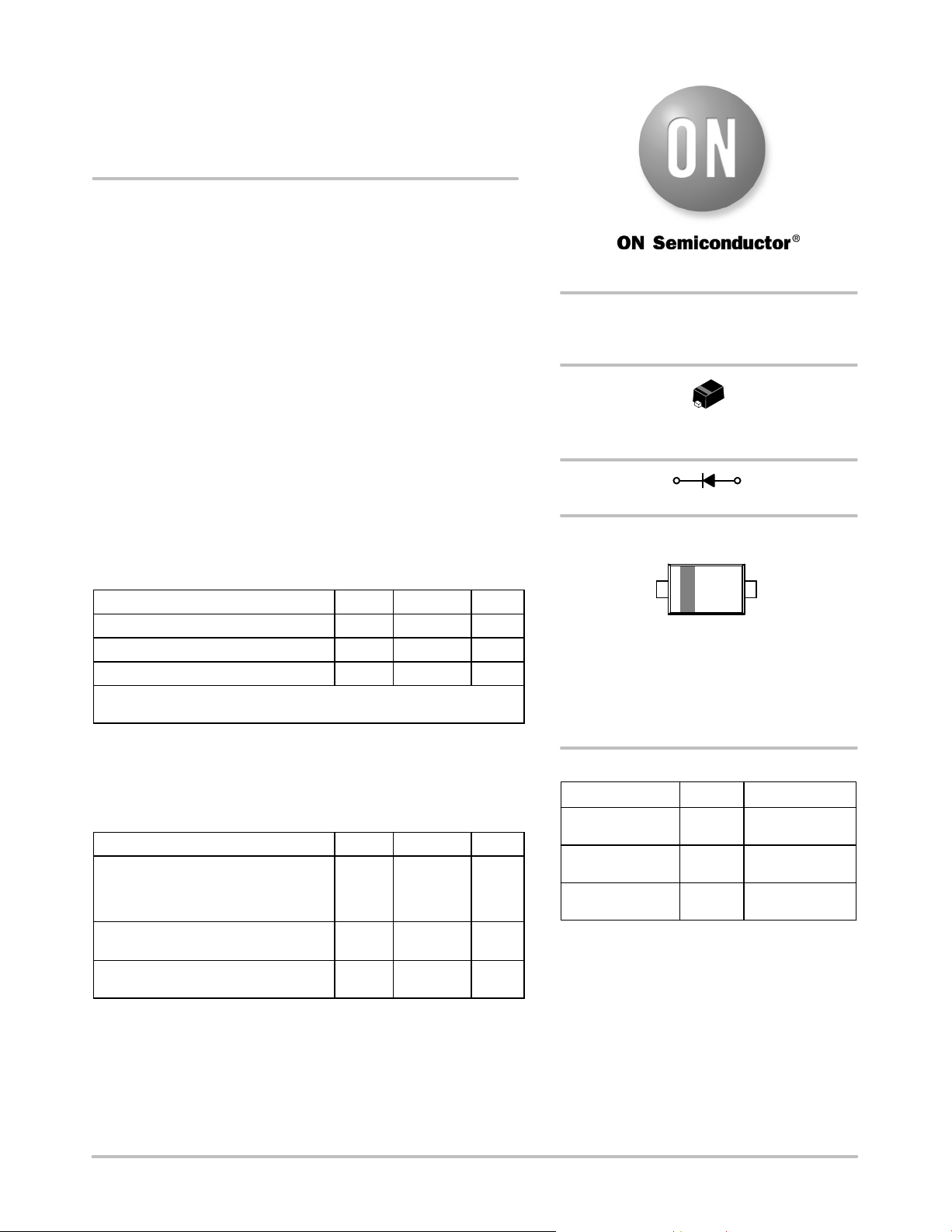

Semiconductor Components Industries, LLC, 2011
November, 2011 − Rev. 8
1 Publication Order Number:
RB521S30T1/D
RB521S30T1G,
NSVRB521S30T1G,
RB521S30T5G
Schottky Barrier Diode
These Schottky barrier diodes are designed for high−speed
switching applications, circuit protection, and voltage clamping.
Extremely low forward voltage reduces conduction loss. Miniature
surface mount package is excellent for hand−held and portable
applications where space is limited.
Features
Extremely Fast Switching Speed
Extremely Low Forward Voltage 0.5 V (max) @ I
F
= 200 mA
Low Reverse Current
AEC Qualified and PPAP Capable
NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Reverse Voltage V
R
30 Vdc
Forward Current DC I
F
200 mA
Peak Forward Surge Current (Note 1) I
FSM
1.0 A
ESD Rating: Class 1C per Human Body Model
ESD Rating: Class C per Machine Model
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. 60 Hz for 1 cycle.
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Total Device Dissipation FR−5 Board,
(Note 2)
T
A
= 25C
Derate above 25C
P
D
200
1.57
mW
mW/C
Thermal Resistance,
Junction−to−Ambient
R
q
JA
635
C/W
Junction and Storage Temperature
Range
T
J
, T
stg
−55 to +125 C
2. FR−5 Minimum Pad.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
30 V SCHOTTKY
BARRIER DIODE
Device Package Shipping
†
ORDERING INFORMATION
RB521S30T1G SOD−523
(Pb−Free)
4 mm Pitch
3,000/Tape & Reel
1
CATHODE
2
ANODE
RB521S30T5G SOD−523
(Pb−Free)
2 mm Pitch
8,000/Tape & Reel
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
SOD−523
CASE 502
MARKING DIAGRAM
5M M G
G
12
5M = Device Code
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation may vary depending
upon manufacturing location.
NSVRB521S30T1G SOD−523
(Pb−Free)
4 mm Pitch
3,000/Tape & Reel
4 mm Pitch
3,000/Tape & Reel
