RSQ035P03
Transistor
1/4
DC-DC Converter (−30V, −3.5A)
RSQ035P03
zFeatures
1) Low On-resistance.(65mΩ at 4.5V)
2) High Power Package.
3) High speed switching.
4) Low voltage drive.(4.5V)
zApplications

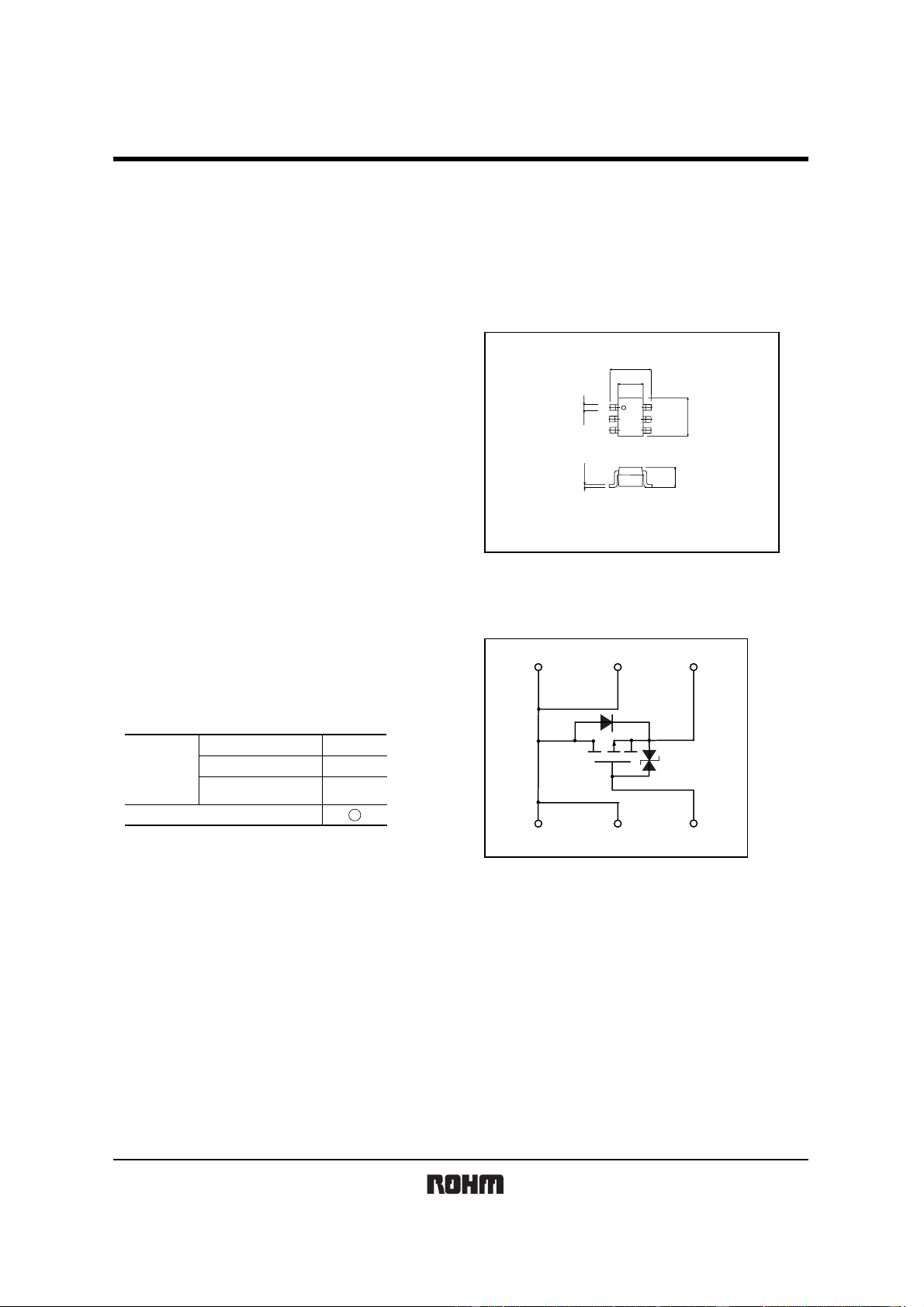

zExternal dimensions (Units : mm)
1.6
2.8
0.4
0.16
(
3
)
0.85
(
2
)
2.9
(
1
)
Each lead has same dimensions
Abbreviatedsymbol : TM
(6)(5)(4)
TSMT6
DC-DC converter
zStructure
Silicon P-channel
MOSFET
zPackaging specifications
Taping
RSQ035P03
Type
TR
3000
Package
Basic ordering unit
(pieces)
Code
zEquivalent circuit
(1)
∗1
∗2
∗1 ESD PROTECTION DIODE
(1)DRAIN
(2)DRAIN
(3)GATE
(4)SOURCE
(5)DRAIN
(6)DRAIN
(2) (3)
(4)(5)(6)
∗2 BODY DIODE
