RT9179
1
DS9179-09 April 2008 www.richtek.com

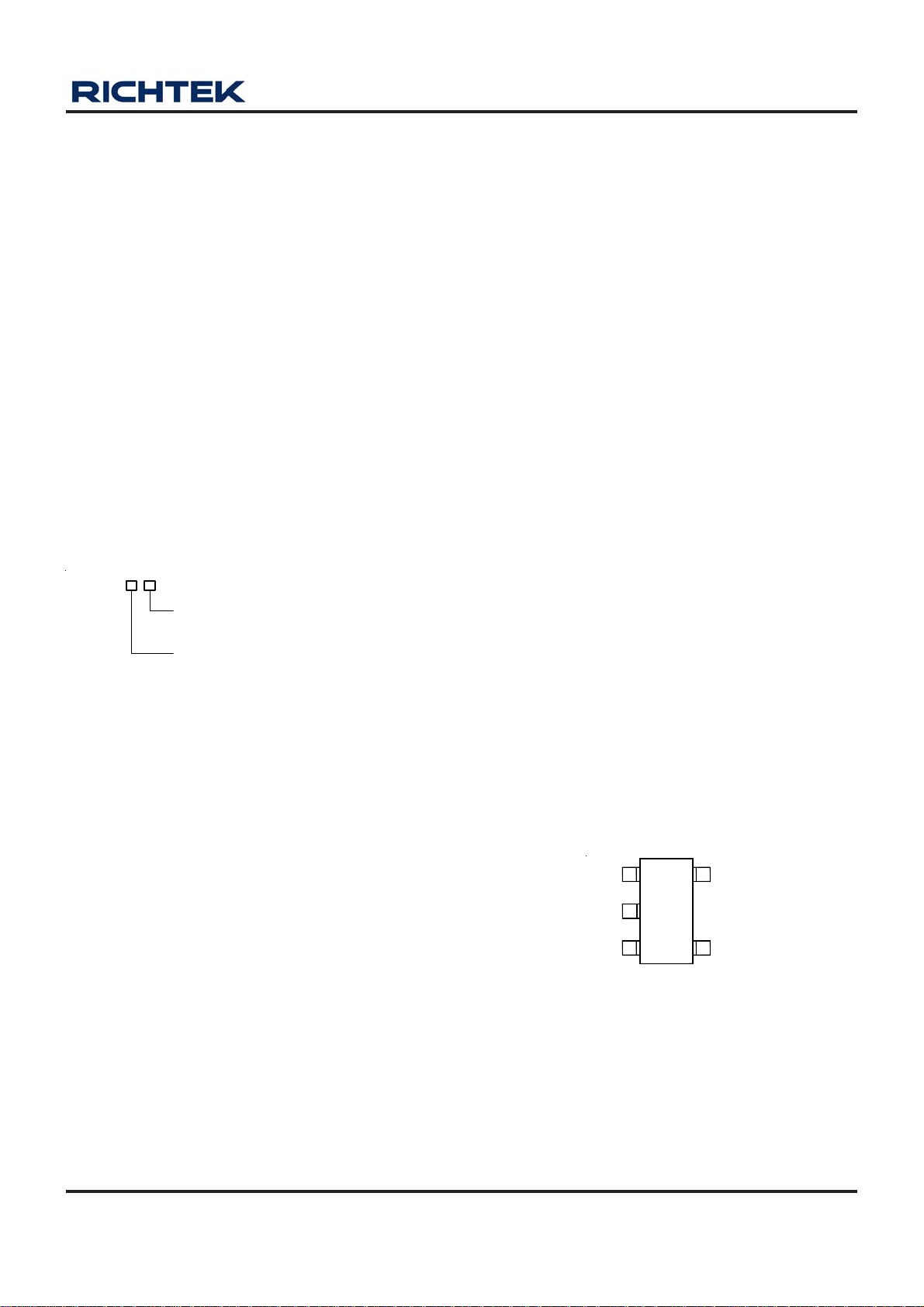

Pin Configurations
Marking Information
For marking information, contact our sales representative
directly or through a Richtek distributor located in your
area, otherwise visit our website for detail.
Adjustable, 300mA LDO Regulator with Enable
General Description
The RT9179 is a high performance linear voltage regulator
with enable high function and adjustable output with a
1.175V reference voltage. It operates from an input of 3V
to 5.5V and provides output current up to 300mA with two
external resistors to set the output voltage ranges from
1.175V to 4.5V.
The RT9179 has superior regulation over variations in line
and load. Also it provides fast respond to step changes in
load. Other features include over-current and over-
temperature protection. The device has enable pin to reduce
power consumption in shutdown mode.
The devices is available in the popular SOT-23-5 package.
Applications
z Battery-Powered Equipment
z Graphic Card
z Peripheral Cards
z PCMCIA Card
Ordering Information
Features
zz
zz
z 300mV Dropout @ 300mA
zz
zz
z 150uA Low Ground Pin Current
zz
zz
z Excellent Line and Load Regulation
zz
zz
z <1uA Standby Current in Shutdown Mode
zz
zz
z Guaranteed 300mA Output Current
zz
zz
z Stable with 1uF Input and Output Ceramic Capacitor
zz
zz
z Adjustable Output Voltage Ranges from 1.175V to
4.5V
zz
zz
z Over-Temperature/Over-Current Protection
zz
zz
z RoHS Compliant and 100% Lead (Pb)-Free
(TOP VIEW)
SOT-23-5
Note :
Richtek Pb-free and Green products are :
`RoHS compliant and compatible with the current require-
ments of IPC/JEDEC J-STD-020.
`Suitable for use in SnPb or Pb-free soldering processes.
`100% matte tin (Sn) plating.
2
3
5
4
1
VIN
GND
ADJEN
VOUT
RT9179
Package Type
B : SOT-23-5
Operating Temperature Range
P : Pb Free with Commercial Standard
G : Green (Halogen Free with Commer-
cial Standard)
