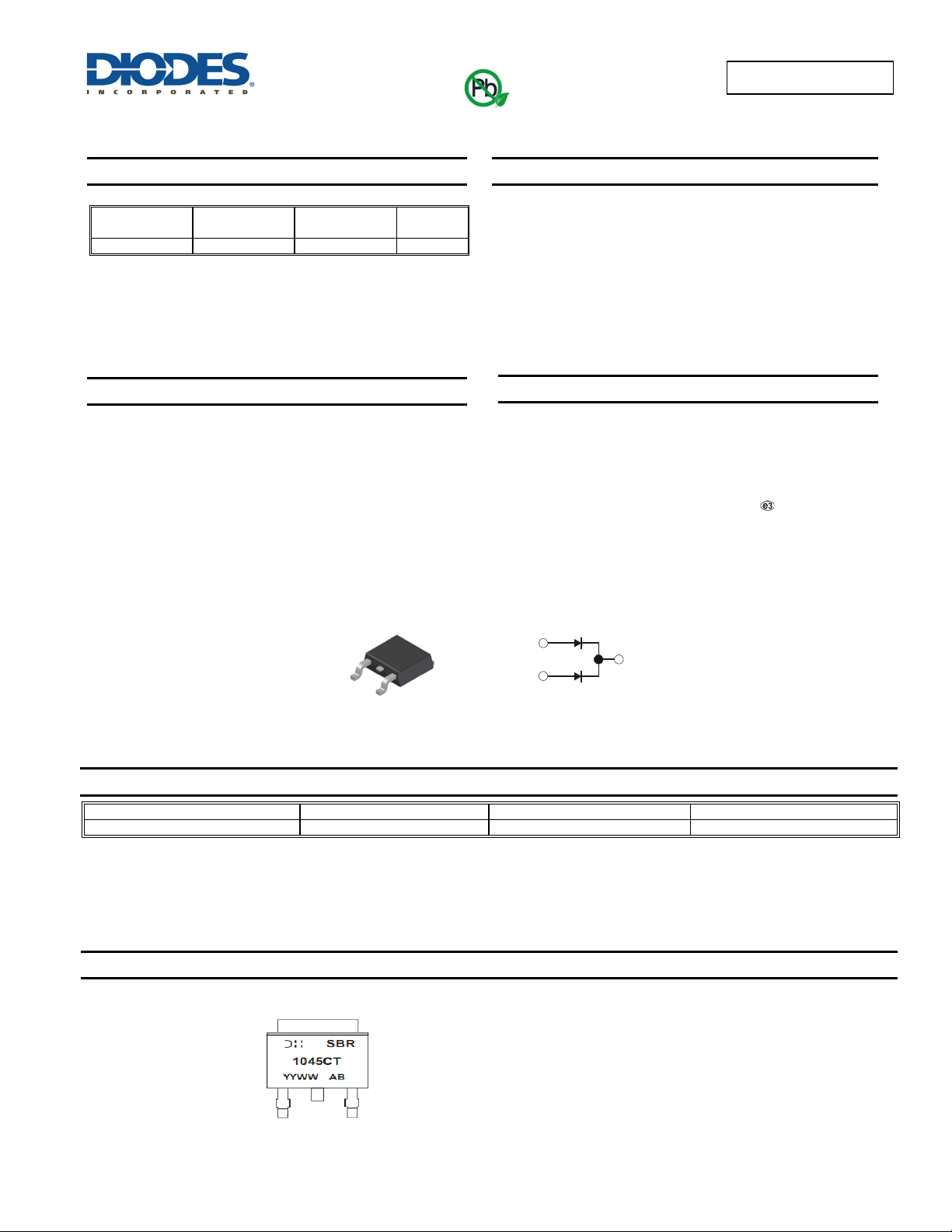

SBR is a registered trademark of Diodes Incorporated.
SBR1045CTLQ
Document number: DS36094 Rev. 2 - 2
1 of 5
www.diodes.com
October 2013
© Diodes Incorporated
SBR1045CTLQ
10A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A)
V
F
max (V)
@+25°C
I
R max
(mA)
@+25°C
45 10 0.55 0.3
Description and Applications
This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as:
DC – DC Converters
DC/AC Inverters
AC/DC Power Supplies
Features
100% Avalanche Tested
Patented SBR technology provides a superior avalanche
Reduced ultra-low forward voltage drop (VF); better efficiency
and cooler operation.
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight: 0.33 grams (approximate)
Ordering Information (Note 4)
Part Number Compliance Case Packaging
SBR1045CTLQ-13 Automotive TO252 (DPAK) 2500 pieces/reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
SBR1045CT = Product Type Marking Code
A
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year, ex: 13 = 2013
WW = Week (01 - 53)
Green
Top View
2
1
3
Polarity
TO252
