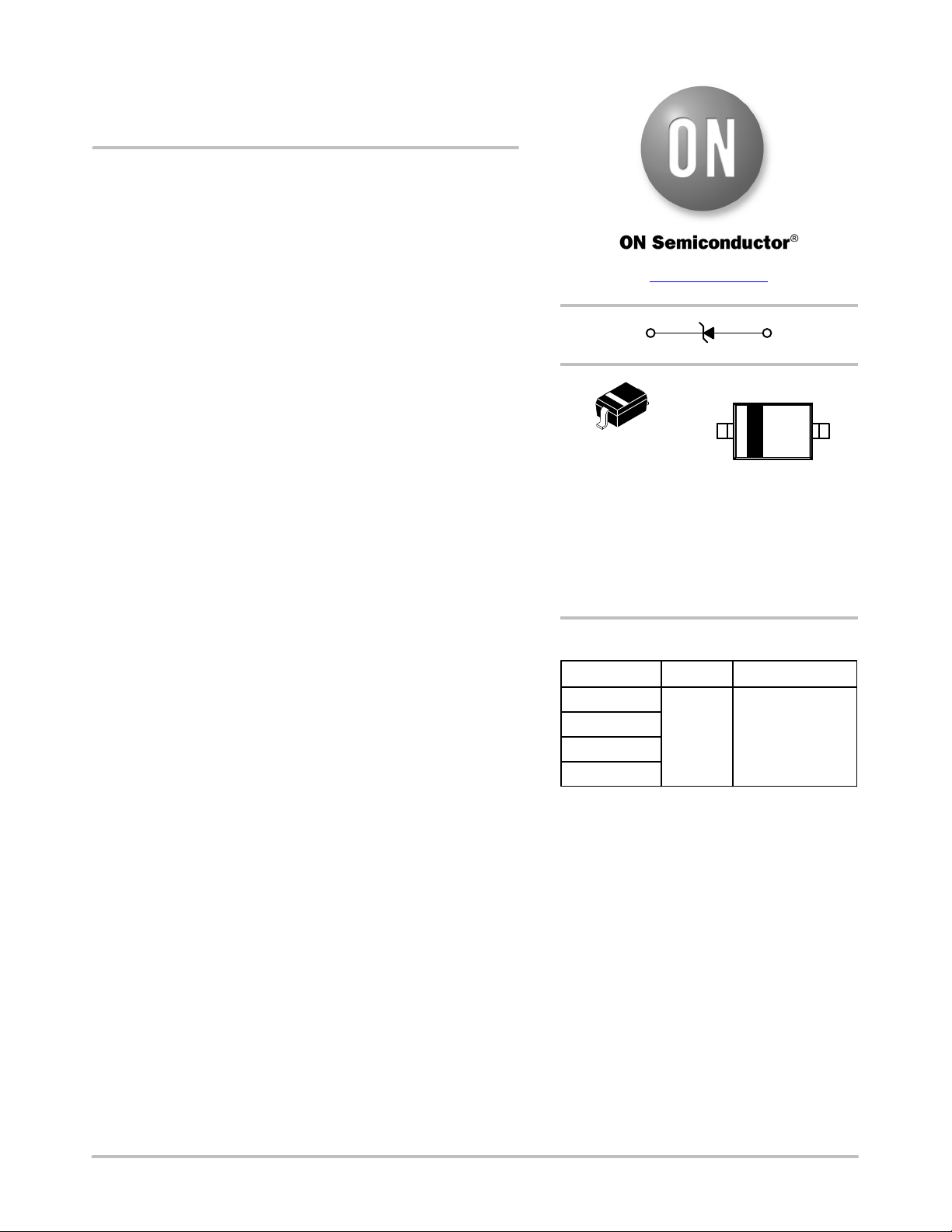

SD05T1Series,
SZSD05T1Series
ESD Protrection Diode
SOD−323 Diodes for ESD Protection
These surge protection diodes are designed for applications requiring
transient overvoltage protection capability. They are intended for use in
voltage and ESD sensitive equipment such as computers, printers,
business machines, communication systems, medical equipment and
other applications. These devices are ideal for situations where board
space is at a premium.
Specification Features:
• Steady State Power Routing of 300 mW
• Peak Power − 350 W (8 20 ms)
• Low Leakage
• Cathode Indicated by Polarity Band
• Package Weight: 4.507 mg/wmt
• Meets IEC61000−4−2 Level 4, 15 kV (Air), 8 kV (Contact)
• Meets IEC6100−4−4 Level 4, 40 A
• Meets IEC6100−4−5 (Lightning), 24 A
• Meets 16 kV Human Body Model ESD Requirements
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
Epoxy Meets UL 94, V−0
LEAD FINISH: 100% Matte Sn (Tin)
MOUNTING POSITION: Any
QUALIFIED MAX REFLOW TEMPERATURE: 260°C
Device Meets MSL 1 Requirements
Use the Device Number to order the 7 inch/3,000 unit reel.
Replace the “T1” with “T3” in the Device Number to order the
13 inch/10,000 unit reel.
www.onsemi.com
SOD−323
CASE 477
STYLE 1
MARKING DIAGRAM
xx = Specific Device Code
ZA = SD05T1
ZC = SD12T1
M = Month Code
G = Pb−Free Package
(Note: Microdot may be in either location)
Device Package Shipping
†
ORDERING INFORMATION
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
xx MG
G
SD05T1G
SOD−323
(Pb−Free)
3000/Tape & Reel
SZSD05T1G
SD12T1G
SZSD12T1G
