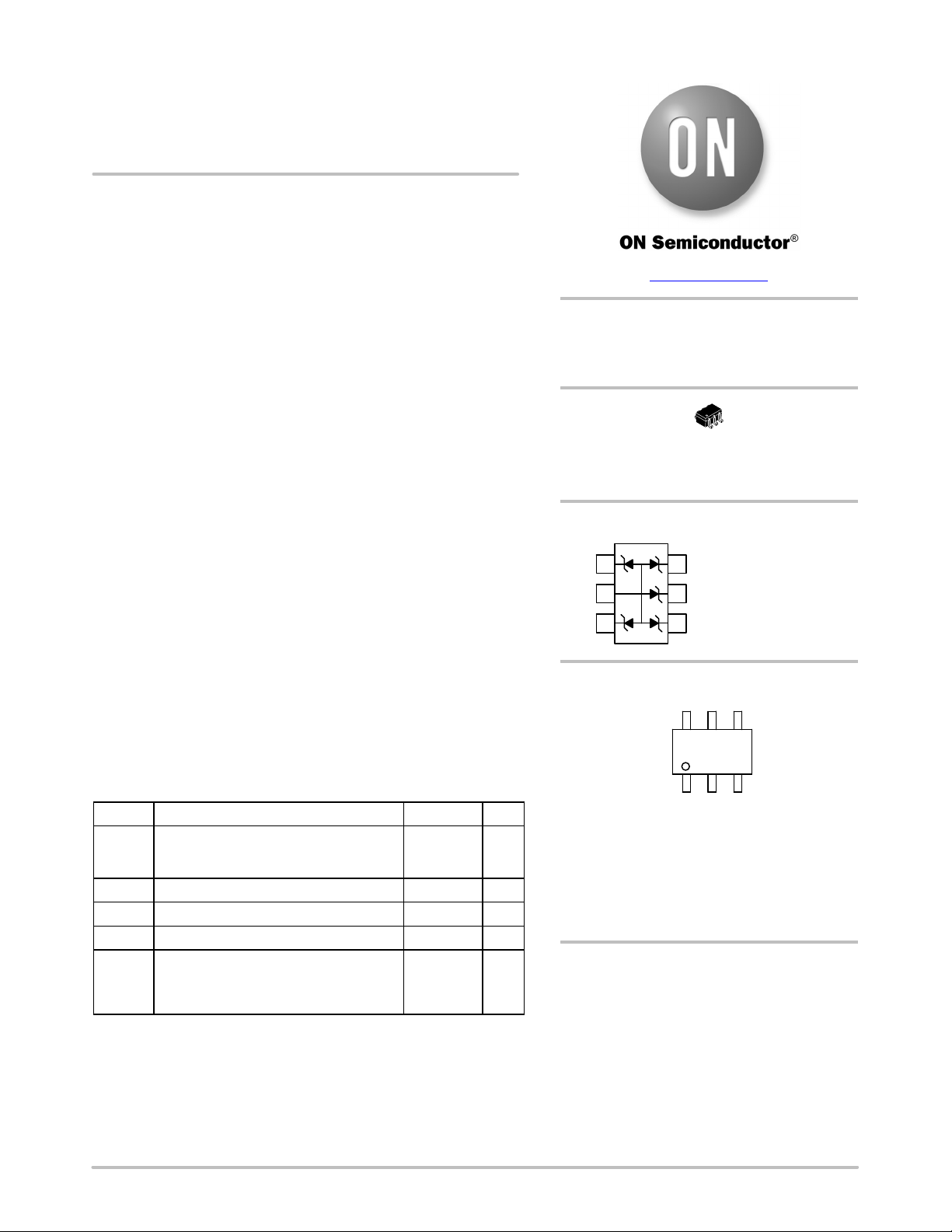

© Semiconductor Components Industries, LLC, 2012
November, 2017 − Rev. 5
1 Publication Order Number:
SMF05C/D
SMF05CT1G, SMF12CT1G,
SMF15CT1G, SMF24CT1G,
SZSMF12CT1G
ESD Protection Diode Array,
5-Line
This 5−line surge protection array is designed for application
requiring transient voltage protection capability. It is intended for use
in over−transient voltage and ESD sensitive equipment such as
computers, printers, automotive electronics, networking
communication and other applications. This device features a
monolithic common anode design which protects five independent
lines in a single SC−88 package.
Features
• Protects up to 5−Line in a Single SC−88 Package
• Peak Power Dissipation − 100 W (8 x 20 ms Waveform)
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model
and Class C (Exceeding 400 V) per Machine Model.
• Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
• Flammability Rating of UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• Pb−Free Packages are Available*
Applications
• Hand−Held Portable Applications
• Networking and Telecom
• Automotive Electronics
• Serial and Parallel Ports
• Notebooks, Desktops, Servers
MAXIMUM RATINGS (T
J
= 25°C unless otherwise specified)
Symbol Rating Value Unit
P
PK
1 Peak Power Dissipation
8 x 20 ms Double Exponential Waveform
(Note 1)
100
W
T
J
Operating Junction Temperature Range −40 to 125 °C
T
STG
Storage Temperature Range −55 to 150 °C
T
L
Lead Solder Temperature (10 s) 260 °C
ESD Human Body Model (HBM)
Machine Model (MM)
IEC 61000−4−2 Air (ESD)
IEC 61000−4−2 Contact (ESD)
16000
400
15000
15000
V
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Nonrepetitive current pulse per Figure 3.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
SC−88 FIVE SURGE
PROTECTION
100 W PEAK POWER
SC−88
CASE 419B
STYLE 24
1
2
3
6
5
4
MARKING DIAGRAM
PIN ASSIGNMENT
PIN 1. CATHODE
2. ANODE
3. CATHODE
4. CATHODE
5. CATHODE
6. CATHODE
www.onsemi.com
XX = Specific Device Code
6J = SMF05C
6K = SZSMF12C/SMF12C
6L = SMF15C
6M= SMF24C
M = Date Code
G =Pb−Free Package
XX
M
G
G
1
6
See detailed ordering and shipping information in the package
dimensions section on page 3 of this data sheet.
ORDERING INFORMATION
