74LVC1G06
Document number: DS32272 Rev. 8 - 2
1 of 14
www.diodes.com
July 2014
© Diodes Incorporated
74LVC1G06
SINGLE INVERTER BUFFER/DRIVER WITH OPEN DRAIN OUTPUT
Description
The 74LVC1G06 is a single inverter gate with an open drain output.
The device is designed for operation with a power supply range of
1.65V to 5.5V. The input is tolerant to 5.5V allowing this device to be
used in a mixed voltage environment. The device is fully specified for
partial power down applications using I
OFF
. The I
OFF
circuitry disables
the output preventing damaging current backflow when the device is
powered down. The open-drain output can be connected to other
open drain outputs to implement active-low wired-OR or active-high
wired-AND functions. The maximum sink current is 32mA.
Features
• Wide Supply Voltage Range from 1.65 to 5.5V
• 24mA Sink Current at 3.3V
• CMOS Low Power Consumption
• I
OFF
Supports Partial-Power-Down Mode Operation
• Inputs Accept up to 5.5V
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 100mA per JESD 78, Class I
• Range of Package Options
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

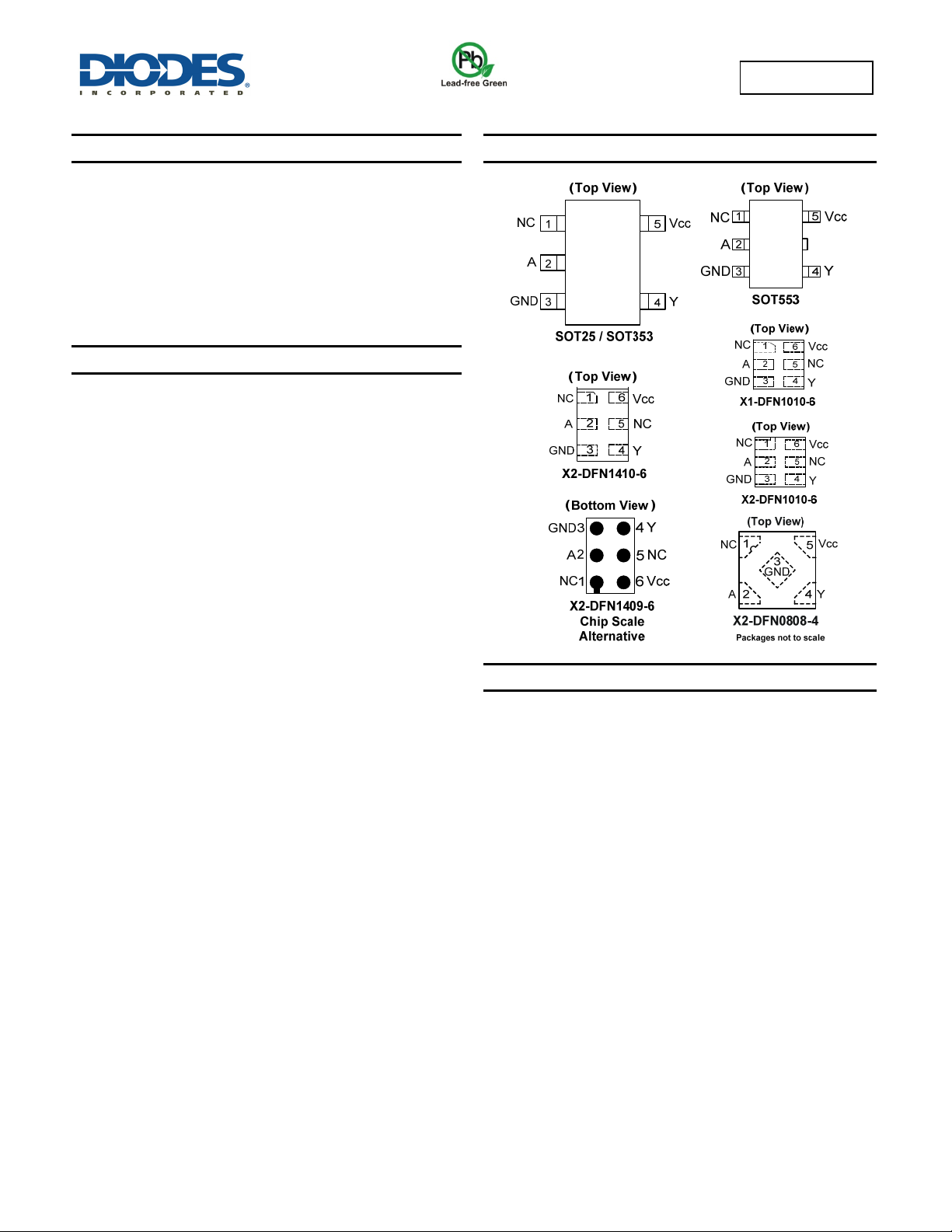

Pin Assignments
Applications
• Voltage Level Shifting
• General Purpose Logic
• Power Down Signal Isolation
• Wide Array of Products Such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-Readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation / GPS
MP3 players ,Cameras, Video Recorders
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
