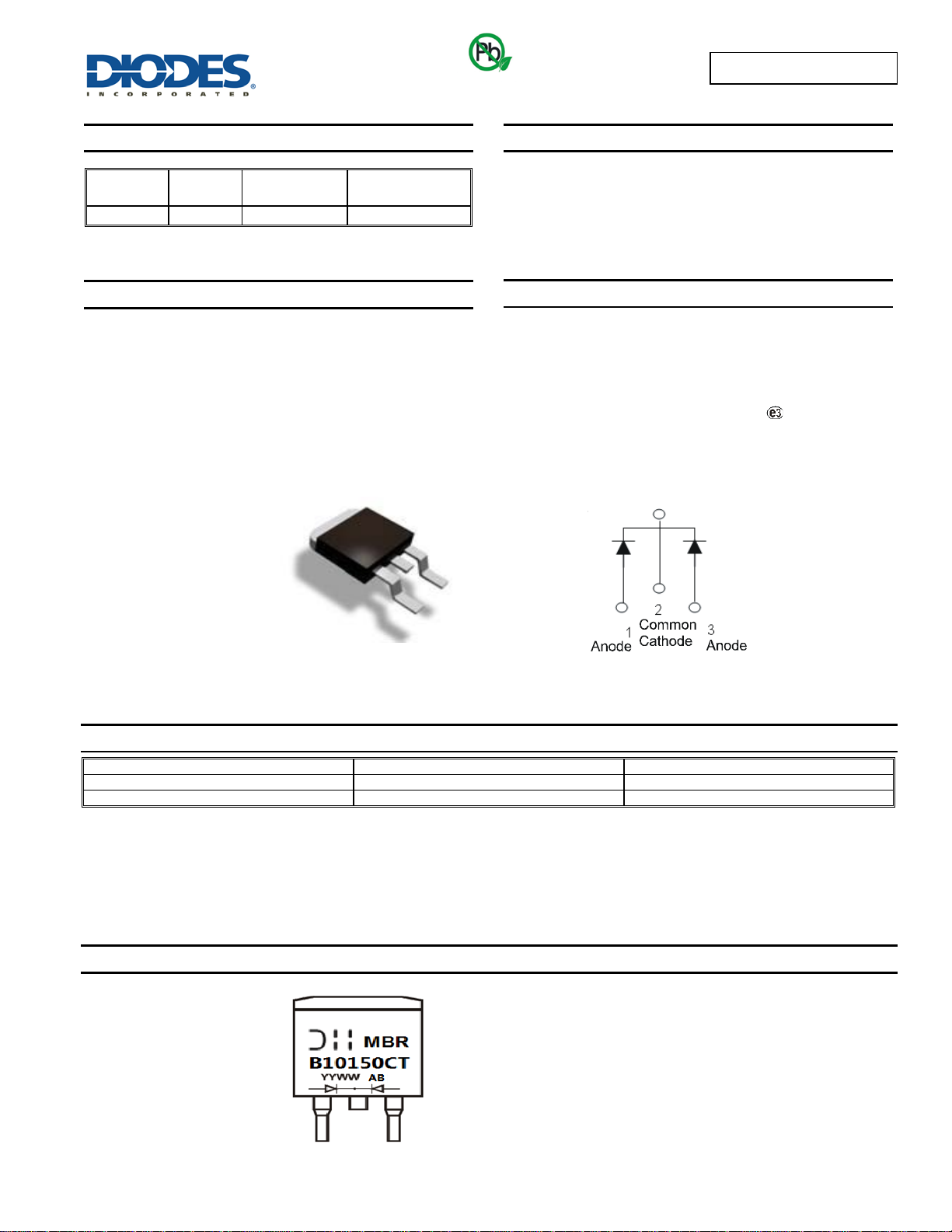

MBRB10150CT
ADVANCED INFORMATION
10A SCHOTTKY BARRIER RECTIFIER
Product Summary
MBRB10150CT (Per Leg)
Description
This Schottky Barrier Rectifier is
designed to meet the stringent
requirements of Commercial Applications.
• Polarity Protection Diode
• Re-Circulating Diode
• Switching Diode
V
RRM
(V) I
O
(A)
V
F
(MAX)
(V)
@ +25°C
I
R
(MAX)
(mA)
@ +25°C
150
5
0.89
0.05
Features and Benefits
• Guard Ring Die Construction for Transient Protection
• High Surge Current Capability
• Low Forward Voltage Drop
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: TO263AB (D2PAK)
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Polarity: See Below
• Weight: TO263AB — 1.6 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
MBRB10150CT
TO263AB (D2PAK)
50 pieces/tube
MBRB10150CT-13
TO263AB (D2PAK)
800 pieces/tube
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Package Pin Out
TO263AB
MBRB10150CT = Product Type Marking Code
AB
= Foundry and Assembly Code
YYWW = Date
Code Marking
YY = Last
Two Digits of Year (ex: 14 = 2014)
WW = Week (01
- 53)
Green
MBRB10150CT
Document number: DS37111 Rev. 4 - 2
1 of 5
www.diodes.com
September 2014
© Diodes Incorporated
