Capacitance Range
.10 µF – 10 µF
.33 µF – 33 µF
1.2 µF – 68 µF
2.7 µF – 68 µF
5.6 µF – 220 µF
12.0 µF – 330 µF
For more information, samples
and engineering kits,
please visit us at www.kemet.com
or call 1.877.myKEMET.
SA0912
Copyright © 2012 KEMET
Why Choose KEMET
KEMET applies world-class service and quality
to deliver industry-leading, high performance
capacitance solutions worldwide. With 95% of
possible dielectric solutions, KEMET offers the
world’s most complete line of surface mount
and through-hole capacitor technologies across
tantalum, ceramic, film, aluminum and paper
dielectrics. One world. One KEMET.

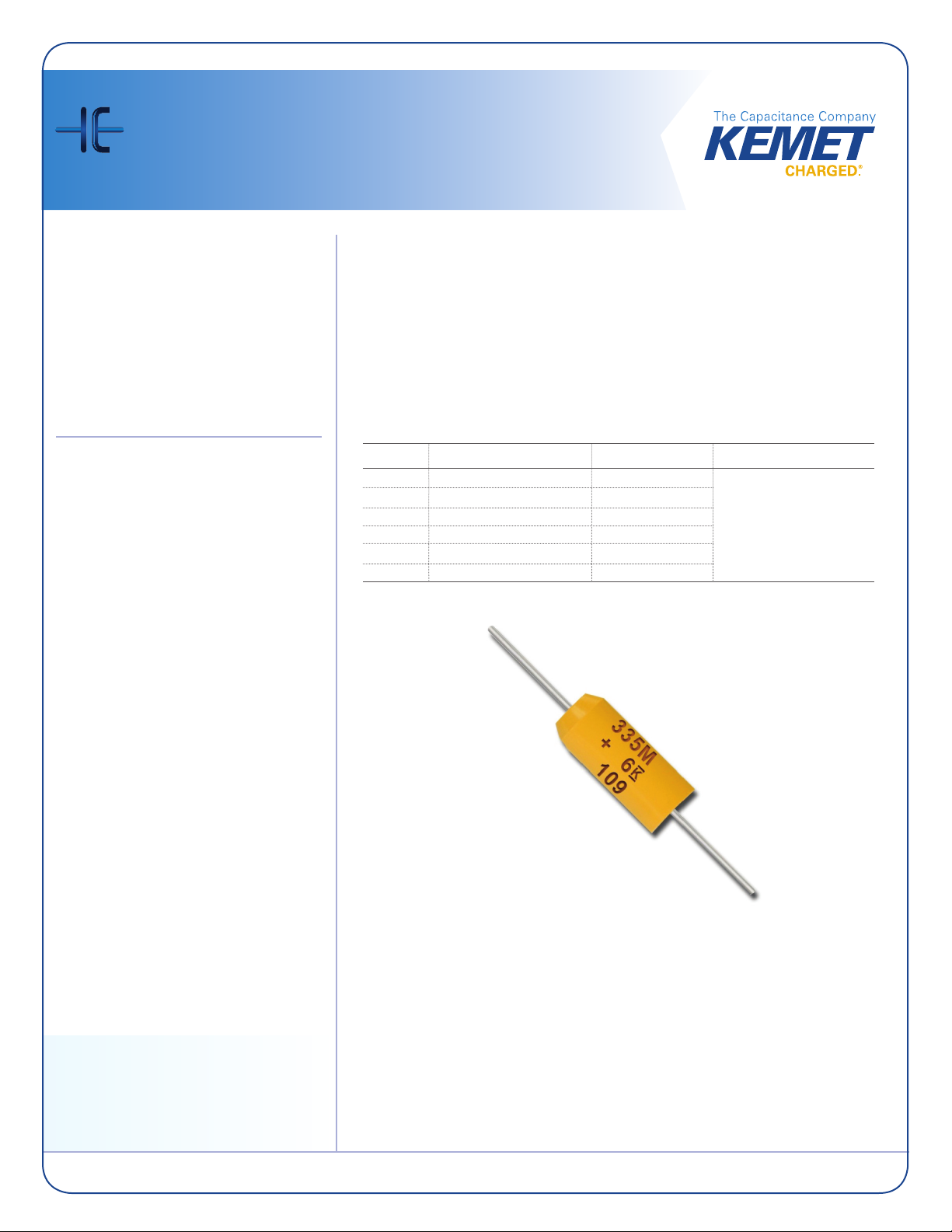

Axial Through-Hole Tantalum
T322 Commercial & T323 Military Series
PRODUCTS
Programs Supported
• Military/Aerospace
• Commercial computer, communications and other electronic equipment
• Bypass and filtering
• Decoupling
• Blocking
• RC timing circuits
Electrical/Physical Characteristics
A
B
C
D
E
F
Case Size Dimensions, DxLxW (inches)
.095 x .0260 x .020
.110 x .290 x .020
.180 x .345 x .020
.180 x .420 x .020
.280 x .530 x .025
.300 x .710 x .025
Characteristics
• 2V – 5V
• 5%, 10% and 20% tolerances
• Operating temperature range
55°C to 125°C
• Available RoHS compliant
• Tape & reel packaging available
Features & Benefits
• T323 Series qualified under MIL-PRF-49137/1
& 5 as Military Style CX01 & CX05
• Complete line of extended-range molded
solid tantalum capacitors
• Designed specifically for high-speed
automatic insertion applications
• High capacitance-to-volume ratio while
maintaining excellent performance
• Low ESR/impedance at high frequencies
• 100% tin and tin/lead termination options
Product Checklist
• What is the circuit operating temperature?
• What is the circuit operating voltage?
• Are there any voltage spikes expected?
• Are there any environmental concerns
such as temperature, moisture or vibration?
• What are the physical space restrictions?
