TLV271/ TLV272
Document number: DS35394 Rev. 6 - 2
1 of 17
www.diodes.com
July 2014
© Diodes Incorporated
NEW PRODUCT
TLV271/TLV272
CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS
Description
The TLV27x provides a higher performance alternative to the TLC27x
series of op-amps. These devices take the minimum operating supply
voltage down to 2.7V over the extended industrial temperature range
while adding the rail-to-rail output swing feature.
This makes it an ideal alternative to the TLC27x family for
applications where rail-to-rail output swings are essential. The
TLV27x also provides 2-MHz bandwidth from only 550μA supply
current.
The TLV27x is fully specified for 5V and
±5V supplies. The maximum
recommended supply voltage is 16V. The devices can be operated
from a variety of rechargeable cells from ±8V down to ±1.35V.
The CMOS inputs enable use in high-impedance sensor interfaces,
with the lower voltage operation making an attractive alternative for
the TLC27x in battery-powered applications.
The 2.7-V operation makes it compatible with Li-Ion powered systems
and the operating supply voltage range of many micro-power micro-
controllers available today.
All parts are available in SOIC packaging; the TLV271 is additionally
available in the SOT25 package. Two temperature grades are
available for the parts; C grade offers 0 to +70°C operating, I grade
offers -40°C to +125°C operating.
Features
• High performance alternative to TLC27x series
• Rail to rail output
• Wide bandwidth: 2MHz
• High slew rate: 2.0 V/µs
• Wide range of supply voltages: 2.7V to 16V
• Low supply current: 550µA per channel
• Low input noise voltage: 35nV/√Hz
• Low input bias current: 1pA
• Specified temperature ranges:
0°C to +70°C: commercial grade
-40°C to +125°C: industrial grade
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

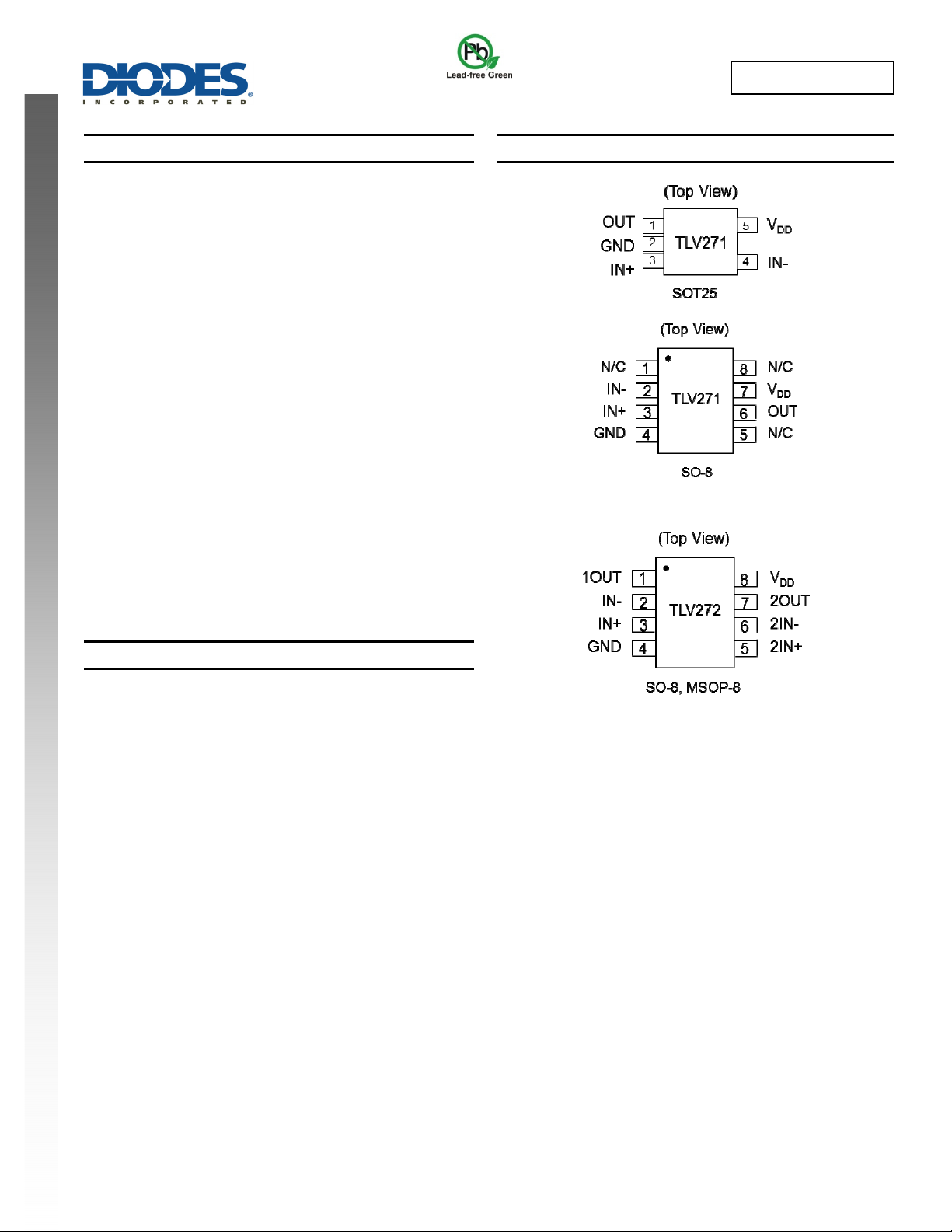

Pin Assignments
