TPD6F002
SLLS876B –AUGUST 2008–REVISED MAY 2016
TPD6F002 Six-Channel EMI Filter for LCD Display and FPD-Link
1
1 Features
1
• Six-Channel EMI Filtering for Data Ports
– –57-dB Crosstalk Attenuation at 100 MHz
– –35-dB Insertion Loss at 800 MHz
– –3-dB Bandwidth at 100 MHz
• Robust ESD Protection Exceeds IEC 61000-4-2
(Level 4)
– ±20-kV IEC 61000-4-2 Contact Discharge
– ±30-kV IEC 61000-4-2 Air-Gap Discharge
• Pi-Style (C-R-C) Filter Configuration
(R = 100 Ω, C
TOTAL
= 34 pF)
• Low Leakage Current: 20 nA (Maximum)
• Space-Saving WSON Package (3 mm × 1.35 mm)
2 Applications
• LCD Display Interface
• GPIO
• Memory Interface
• Data Lines at Flex Cables
• FPD-Link
3 Description
The TPD6F002 device is a highly-integrated device
that provides a six-channel Electromagnetic
Interference (EMI) filter and a TVS based ESD
protection diode array. The low-pass filter array
suppresses EMI/RFI emissions for data ports subject
to electromagnetic interference. The TVS diode array
is rated to dissipate ESD strikes above the maximum
level specified in the IEC 61000-4-2 international
standard. The high level of integration, combined with
its small easy-to-route DSV package, allows this
device to provide great circuit protection for LCD
displays, memory interfaces, GPIO lines, and FPD-
Link.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TPD6F002 WSON (12) 3.00 mm × 1.35 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

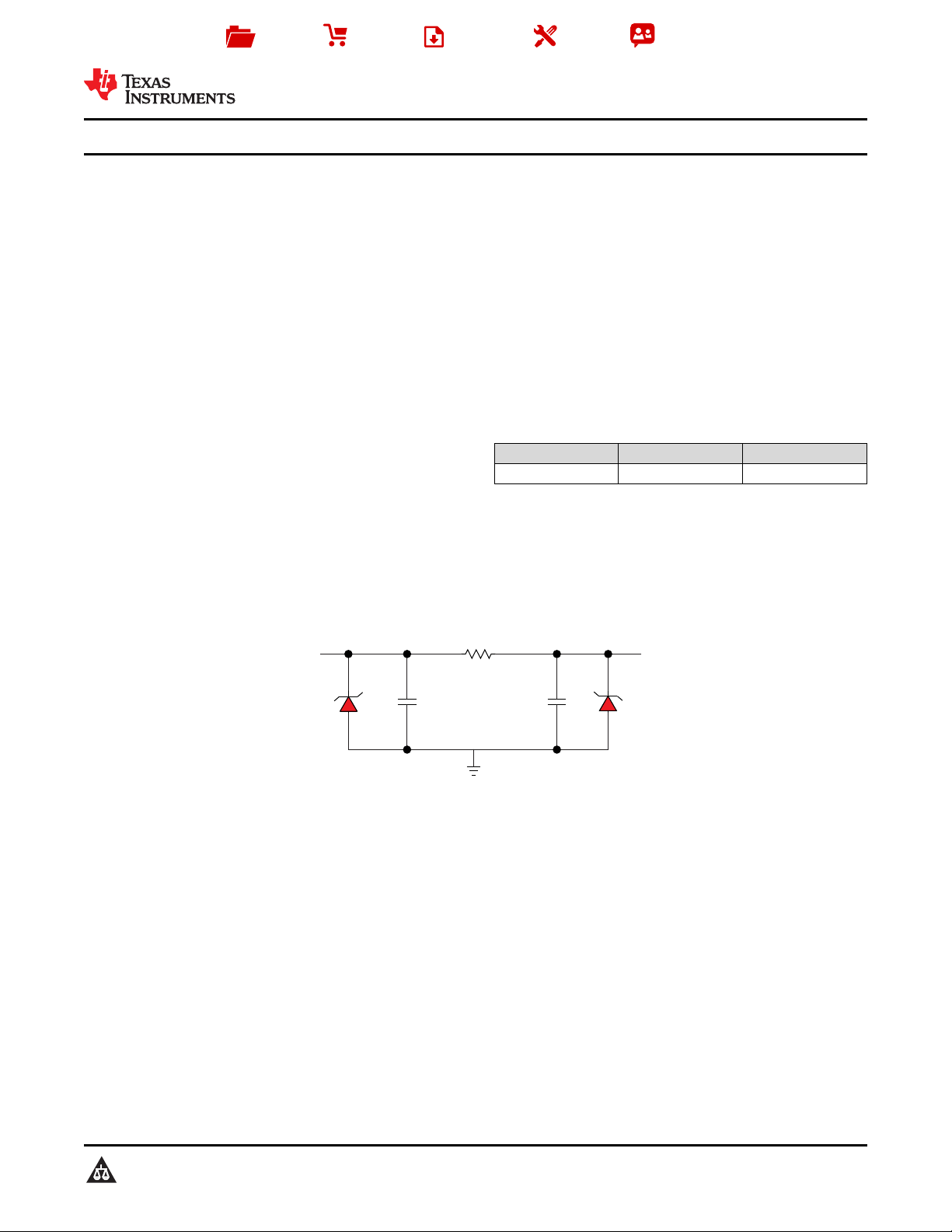

Equivalent Schematic Representation
