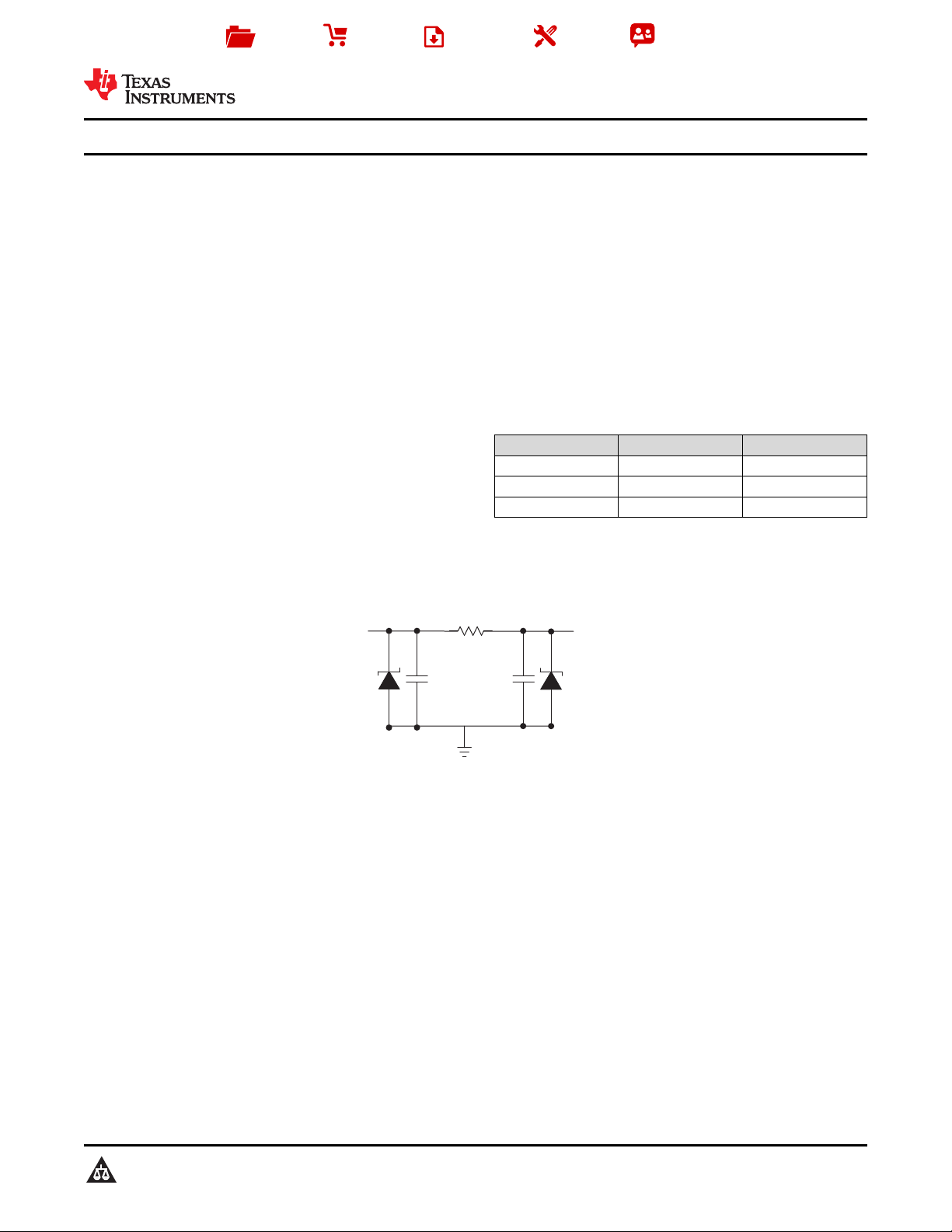

TPD4F003
,
TPD6F003
,
TPD8F003
SLLS907E –AUGUST 2008–REVISED AUGUST 2014
TPDxF003 Four-, Six-, and Eight-Channel EMI Filters With Integrated ESD Protection
1 Features 3 Description
The TPDxF003 family is a series of highly integrated
1
• Four-, Six-, and Eight-Channel EMI Filtering for
devices designed to provide Electromagnetic
Data Ports
Interference (EMI) filtering in all systems subjected to
• –3 dB Bandwidth of 200 MHz
electromagnetic interference. These filters also
• Greater than 25 dB attenuation at 1 GHz
provide a Transient Voltage Suppressor (TVS) diode
circuit for Electrostatic Discharge (ESD) protection
• IEC 61000-4-2 Level 4 ESD Protection
which prevents damage to the application when
– ±12-kV Contact Discharge
subjected to ESD stress far exceeding IEC 61000-4-2
– ±20-kV Air Gap Discharge
(Level 4).
• Pi-Style (C-R-C) Filter Configuration
The TPDxF003 family is specified for –40°C to 85°C
(R = 100 Ω, C
TOTAL
= 17 pF)
operation. These filters are also packaged in space-
• Low 10-nA Leakage Current
saving 0.4-mm pitch DQD packages.
• Easy Flow-Through Routing
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
2 Applications
TPD4F003 WSON (8) 1.70 mm x 1.35 mm
• Display Interfaces
TPD6F003 WSON (12) 2.50 mm x 1.35 mm
• Cell Phones
TPD8F003 WSON (16) 3.30 mm x 1.35 mm
• Tablets
(1) For all available packages, see the orderable addendum at
• SVGA Video Connections
the end of the datasheet.
• Memory Interfaces
Equivalent Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Verzeichnis
- ・ Konfiguration des Pinbelegungsdiagramms on Seite 3
- ・ Abmessungen des Paketumrisses on Seite 13 Seite 15 Seite 16
- ・ Markierungsinformationen on Seite 13
- ・ Blockdiagramm on Seite 1 Seite 7 Seite 9
- ・ Typisches Anwendungsschaltbild on Seite 9 Seite 10
- ・ Technische Daten on Seite 4
- ・ Anwendungsbereich on Seite 1 Seite 9 Seite 27
- ・ Elektrische Spezifikation on Seite 4
