Security Surveillance IC Solutions
www.intersil.com
Techwell
Techwell

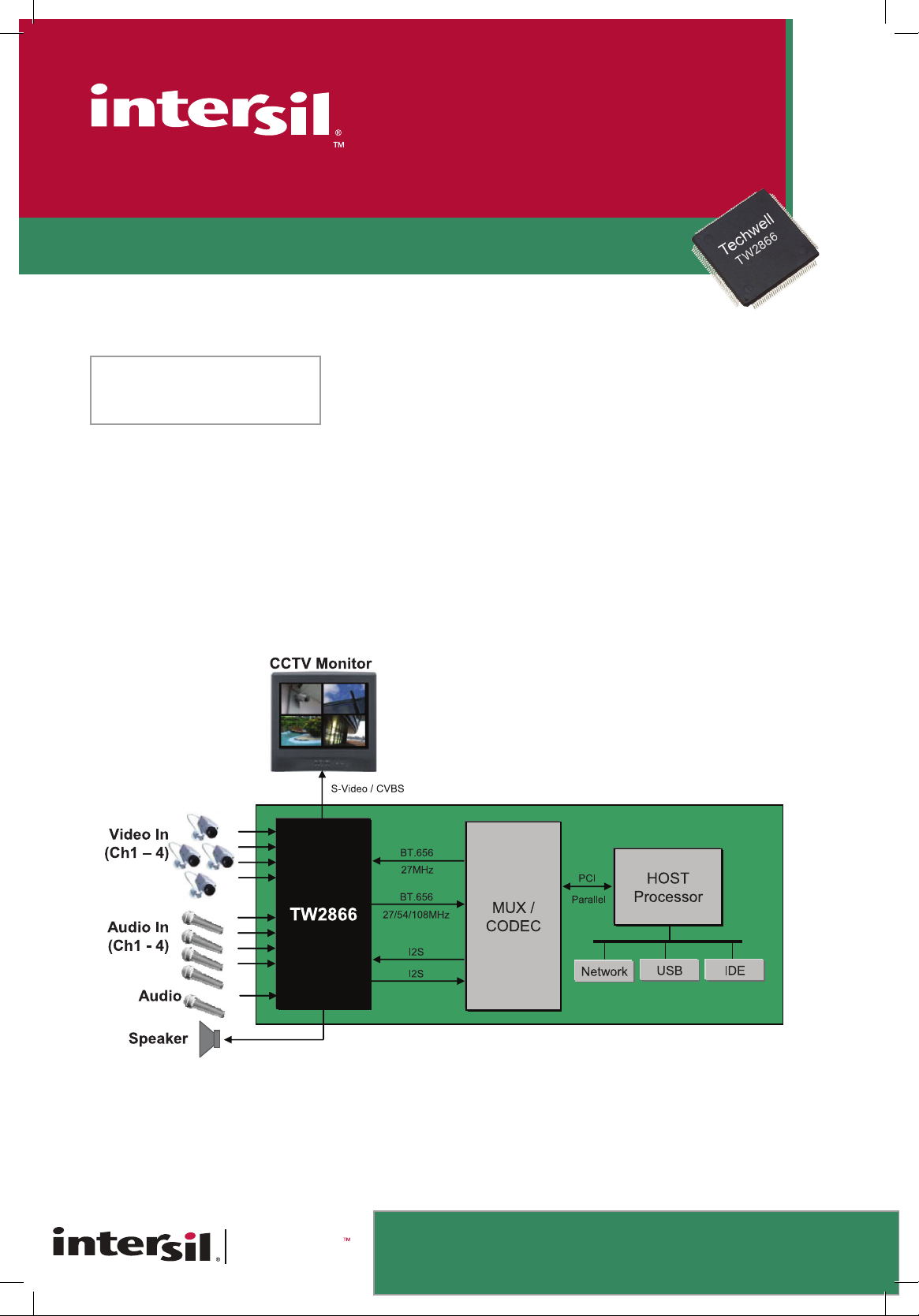

The TW2866 is Techwell’s second-generation 4-in-1 video decoder and audio codec plus video encoder for security surveillance
applications. The device includes four high quality NTSC/PAL/SECAM video decoders that convert analog composite video
signal to digital component YCbCr data. Each channel contains a 10-bit ADC and proprietary clamp/gain controller and
utilizes 4H comb filter for separating luminance & chrominance to reduce cross noise artifacts. The TW2866 adopts image
enhancement techniques such as IF compensation filter, CTI and programmable peaking. In addition, TW2866 includes one
NTSC/PAL video encoder with two 10-bit DACs to support CVBS and YC output. The TW2866 also includes an audio codec
which has five audio ADCs and one DAC. A built-in audio controller can generate digital outputs for recording/mixing and
accepts digital input for playback.
TW2866
4-Channel Video Decoder and Audio Codec plus
Video Encoder for Security Applications
Target Applications
–
Embedded DVR
– Video Server
– DVR PCI Card
