1/176November 2002
µPSD323X
Flash Programmable System Devices
with 8032 Microcontroller Core and 64Kbit SRAM
FEATURES SUMMARY
■ The µPSD323XDevices combine a Flash PSD
architecture with an 8032 microcontroller core.
The µPSD323X Devices of Flash PSDs feature
dual banks of Flash memory, SRAM, general
purpose I/O and programmable logic, supervi-
sory functions and access via USB, I
2
C, ADC,
DDC and PWM channels, and an on-board
8032 microcontroller core, with two UARTs,
three 16-bit Timer/Counters and two External
Interrupts. As with other FlashPSD families,the
µPSD323X Devices are also in-system pro-
grammable (ISP) via a JTAG ISP interface.
■ Large 8KByte SRAM with battery back-up
option
■ Dual bank Flash memories
– 128KByte or 256KByte main Flash memory
– 32KByte secondary Flash memory
■ Content Security
– Block access to Flash memory
■ ProgrammableDecodePLDforflexibleaddress
mapping of all memories within 8032 space.
■ High-speed clockstandard 8032core (12-cycle)
■ USB Interface (some devices only)
■ I
2
C interface for peripheral connections
■ 5 Pulse Width Modulator (PWM) channels
■ Analog-to-Digital Converter (ADC)
■ Standalone Display Data Channel (DDC)
■ Six I/O ports with up to 50 I/O pins
■ 3000 gate PLD with 16 macrocells
■ Supervisor functions with Watchdog Timer
■ In-System Programming (ISP) via JTAG
■ Zero-Power Technology
■ Single Supply Voltage
– 4.5 to 5.5V
– 3.0 to 3.6V

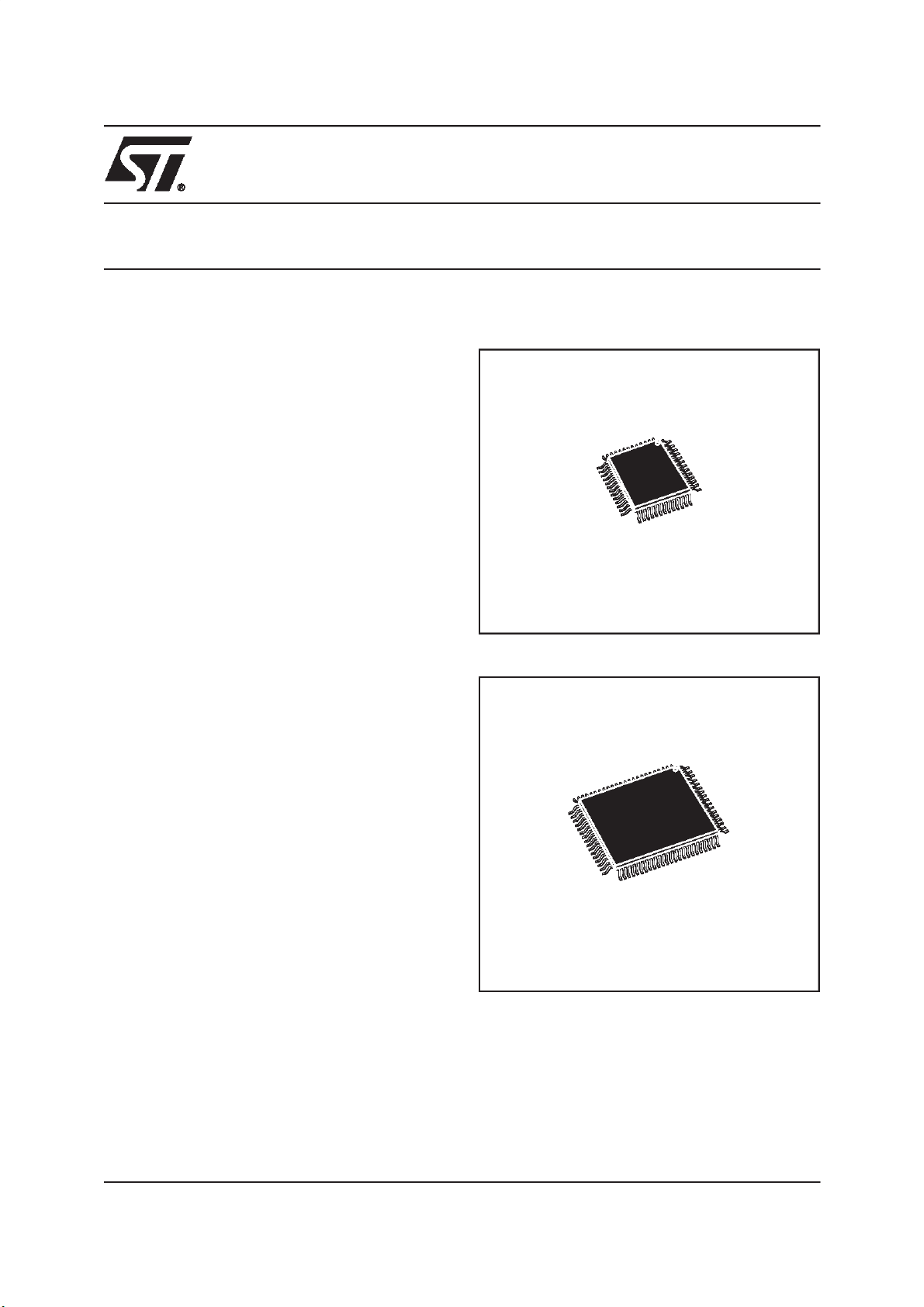

Figure 1. 52-lead, Thin, Quad, Flat Package
Figure 2. 80-lead, Thin, Quad, Flat Package
TQFP52 (T)
TQFP80 (U)
