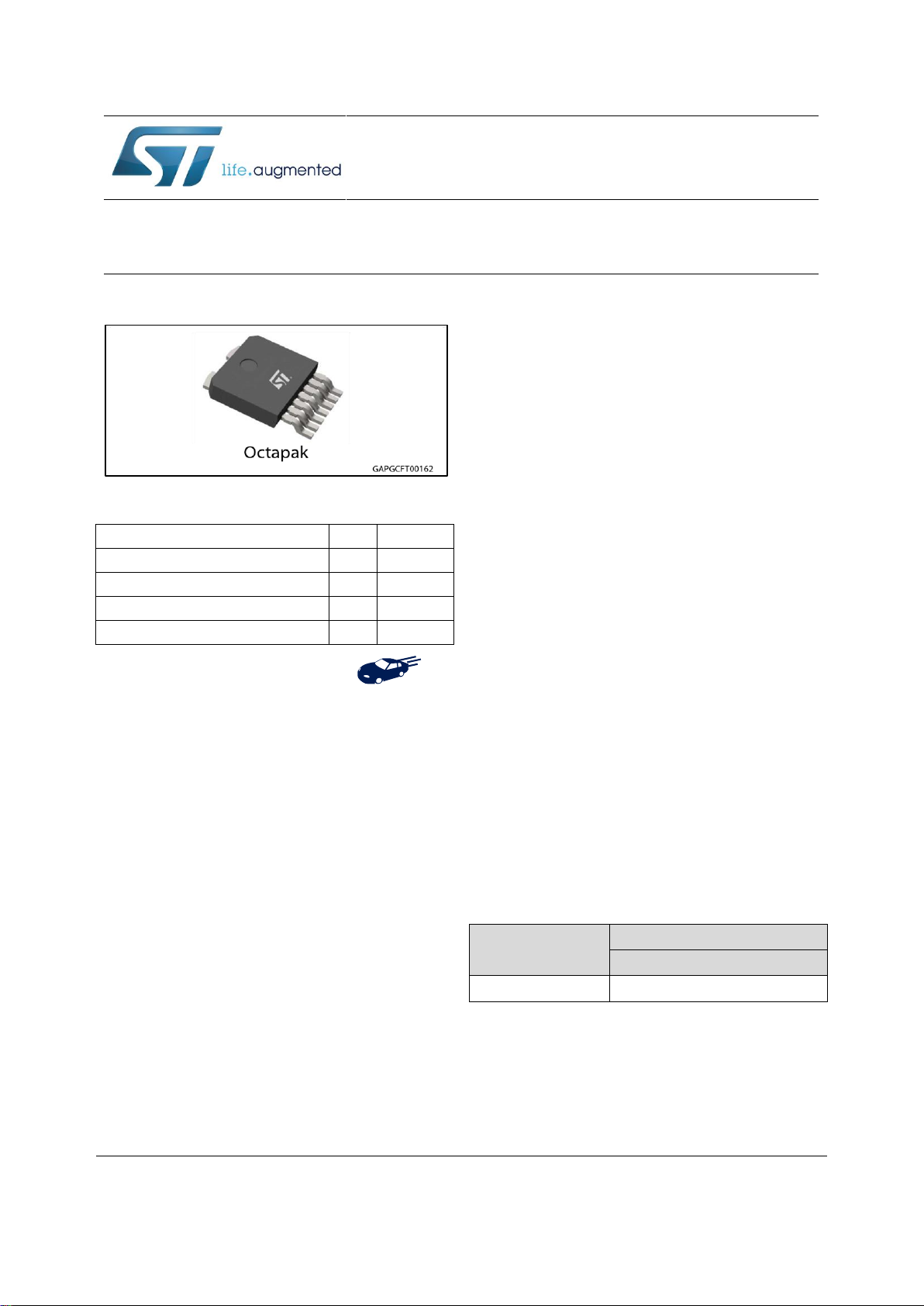

July 2016
DocID027770 Rev 4
1/37
This is information on a product in full production.
www.st.com
VN7004CLH
High-side driver with CurrentSense analog feedback
for automotive applications
Datasheet - production data
Features
Max transient supply voltage
V
CC
40 V
Operating voltage range
V
CC
4 to 28 V
Typ. on-state resistance (per Ch)
R
ON
4 mΩ
Current limitation (typ)
I
LIMH
135 A
Stand-by current (max)
I
STBY
0.5 µA
AEC-Q100 qualified
General
Single channel smart high-side driver
with CurrentSense analog feedback
Very low standby current
Compatible with 3.0 V and 5 V CMOS
outputs
Diagnostic functions
Overload and short to ground (power
limitation) indication
Thermal shutdown indication
OFF-state open-load detection
Output short to V
CC
detection
Protections
Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Loss of ground and loss of V
CC
Configurable latch-off on
overtemperature or power limitation
Reverse battery
Electrostatic discharge protection
Applications
All types of Automotive resistive, inductive
and capacitive loads
Specially intended for Automotive
Headlamps
Description
The device is a single channel high-side driver
manufactured using ST proprietary VIPower
®
technology and housed in the Octapak package.
The device is designed to drive 12 V automotive
grounded loads through a 3 V and 5 V CMOS-
compatible interface, and to provide protection
and diagnostics.
The device integrates advanced protective
functions such as load current limitation, overload
active management by power limitation and
overtemperature shutdown.
A combination of INPUT and FR_DIAG pins
latches the output in case of fault, disables the
latch-off functionality and enables OFF-state
diagnostic.
Table 1: Device summary
Package
Order codes
Tape and reel
Octapak
VN7004CLHTR
