This is information on a product in full production.
October 2014 DocID022375 Rev 9 1/48
VND7140AJ-E
Double channel high-side driver with MultiSense analog feedback
for automotive applications
Datasheet
-
production data
Features
• Automotive qualified
• General
– Double channel smart high-side driver with
MultiSense analog feedback
– Very low standby current
– Compatible with 3 V and 5 V CMOS
outputs
• MultiSense diagnostic functions
– Multiplexed analog feedback of: load
current with high precision proportional
current mirror, V
CC
supply voltage and
T
CHIP
device temperature
– Overload and short to ground (power
limitation) indication
– Thermal shutdown indication
– OFF-state open-load detection
– Output short to V
CC
detection
– Sense enable/ disable
• Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Configurable latch-off on overtemperature
or power limitation with dedicated fault
reset pin
– Loss of ground and loss of V
CC
– Reverse battery with external components
– Electrostatic discharge protection
Applications
• All types of Automotive resistive, inductive and
capacitive loads
• Specially intended for automotive signal lamps
(up to R10W or LED Rear Combinations)
Description
The VND7140AJ-E is a double channel high-side
driver manufactured using ST proprietary
VIPower
®
technology and housed in

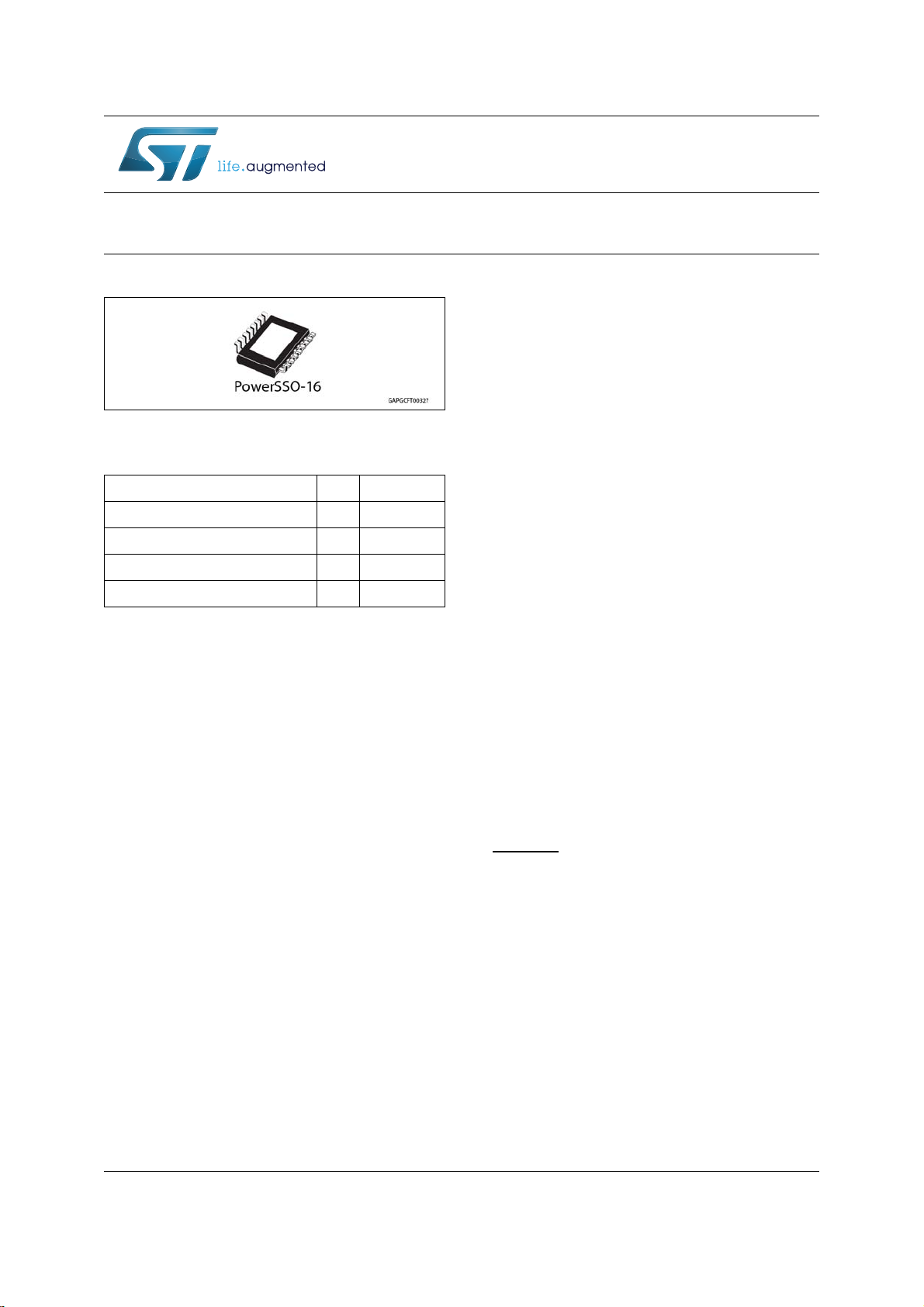

PowerSSO-16 package. The device is designed
to drive 12 V automotive grounded loads through
a 3 V and 5 V CMOS-compatible interface,
providing protection and diagnostics.
The device integrates advanced protective
functions such as load current limitation, overload
active management by power limitation and
overtemperature shutdown with configurable
latch-off.
A FaultRST
pin unlatches the output in case of
fault or disables the latch-off functionality.
A dedicated multifunction multiplexed analog
output pin delivers sophisticated diagnostic
functions including high precision proportional
load current sense, supply voltage feedback and
chip temperature sense, in addition to the
detection of overload and short circuit to ground,
short to V
CC
and OFF-state open-load. A sense
enable pin allows OFF-state diagnosis to be
disabled during the module low-power mode as
well as external sense resistor sharing among
similar devices.
Max transient supply voltage V
CC
40 V
Operating voltage range V
CC
4 to 28 V
Typ. on-state resistance (per Ch) R
ON
140 mΩ
Current limitation (typ) I
LIMH
12 A
Standby current (max) I
STBY
0.5 µA
www.st.com
