ZXGD3004E6
Document Number DS33382 Rev. 2 - 2
1 of 8
www.diodes.com
March 2018
© Diodes Incorporated

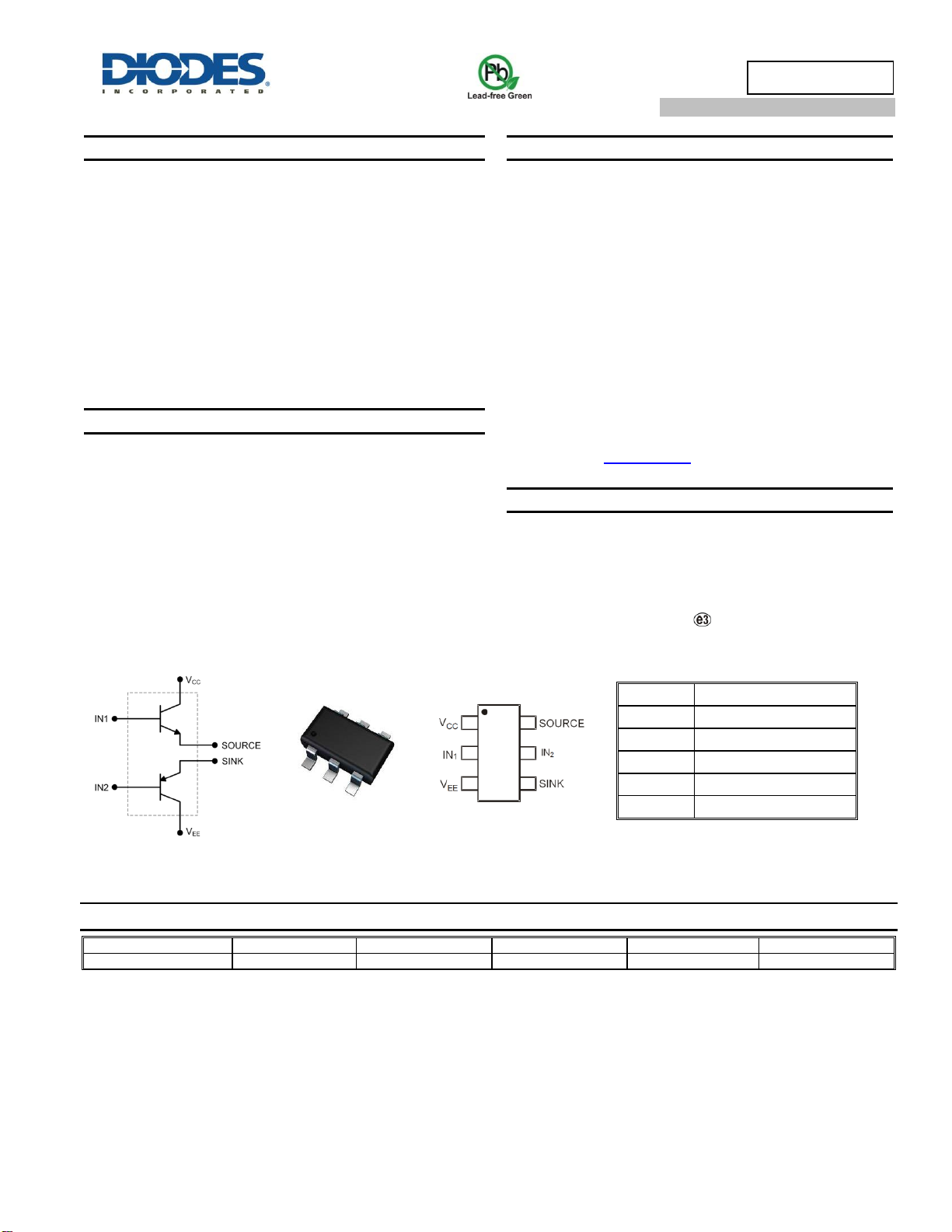

ZXGD3004E6
40V 8A GATE DRIVER IN SOT26
Description
The ZXGD3004E6 is a high-speed, non-inverting single gate driver
designed for switching MOSFETs or IGBTS. It can transfer up to 8A
peak source/source current into the gate for effective charging and
discharging of the capacitive gate load.
This gate driver ensures rapid switching of the MOSFET to minimize
power losses and distortion in high current switching applications. It can
typically drive 1.9A into the low gate impedance with just 10mA input
from a controller. The turn-on and turn-off switching behaviour of the
MOSFET can be individually tailored to suit an application. By defining
the switching characteristics appropriately, EMI and cross conduction
can be reduced.
Applications
Gate Driving Power MOSFET and IGBTs in:
AC-DC Power Supplies (SMPS)
DC-DC Converters
DC-AC Inverters (i.e. Solar)
1, 2 and 3-Phase Motor Control Circuits
Amplifier Output Stages
Features
High-Gain Buffer with Typically 1.9A Output from 10mA Input
8 Amps Peak Output Current
40V Supply for +20V to -18V Gate Driving to Prevent dV/dt
Induced False Triggering and Minimize On-Losses
Emitter-Follower that is Rugged to Latch-Up/Shoot-Though
Fast Switching Emitter-Follower Configuration
1ns Propagation Delay Time
14ns Rise/Fall Time, 1500pF load
Optimized Pin-Out to Simplify PCB Layout and Reduce
Parasitic Trace Inductances
Near-Zero Quiescent Supply Current
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (ZXGD3004E6Q)
Mechanical Data
Case: SOT26
Case Material: Molded Plastic. ―Green‖ Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.018 grams (Approximate)
Ordering Information (Note 4)
Product
Compliance
Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
ZXGD3004E6TA
AEC-Q101
3004
7
8
3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green"
and Lead-Free.
3. Halogen and Antimony free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Pin Name
Pin Function
V
CC
Driver Supply High
IN
1
& IN
2
Driver Input *
V
EE
Supply Voltage Low
SOURCE
Source Current Output **
SINK
Sink Current Output **
Top View
Pin-Out
Top View
SOT26
* Typically connect IN1 & IN2 together
** Typically connect SOURCE & SINK together
