ZXMC3AMC
Document number: DS35088 Rev. 1 - 2
1 of 11
www.diodes.com
December 2010
© Diodes Incorporated
ZXMC3
A
MC
A
Product Line o
f
Diodes Incorporated
30V COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(on)
max
I
D
max
T
A
= 25°C
(Notes 4 & 7)
Q1 30V
120mΩ @ V
GS
= 10V
3.7A
180mΩ @ V
GS
= 4.5V
3.0A
Q2 -30V
210mΩ @ V
GS
= -10V
-2.7A
330mΩ @ V
GS
= -4.5V
-2.2A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
• MOSFET gate drive
• LCD backlight inverters
• Motor control
• Portable applications
Features and Benefits
• Low profile package, for thin applications
• Low R
θJA
, thermally efficient package
• 6mm
2
footprint, 50% smaller than TSOP6 and SOT23-6
• Low on-resistance
• Fast switching speed
• “Lead-Free”, RoHS Compliant (Note 1)
• Halogen and Antimony Free. "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: DFN3020B-8
• Terminals: Pre-Plated NiPdAu leadframe
• Nominal package height: 0.8mm
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Solderable per MIL-STD-202, Method 208
• Weight: 0.013 grams (approximate)
Ordering Information (Note 3)
Part Number Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXMC3AMCTA C01 7 8 3000
Notes: 1. No purposefully added lead
2. Diodes Inc's "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.

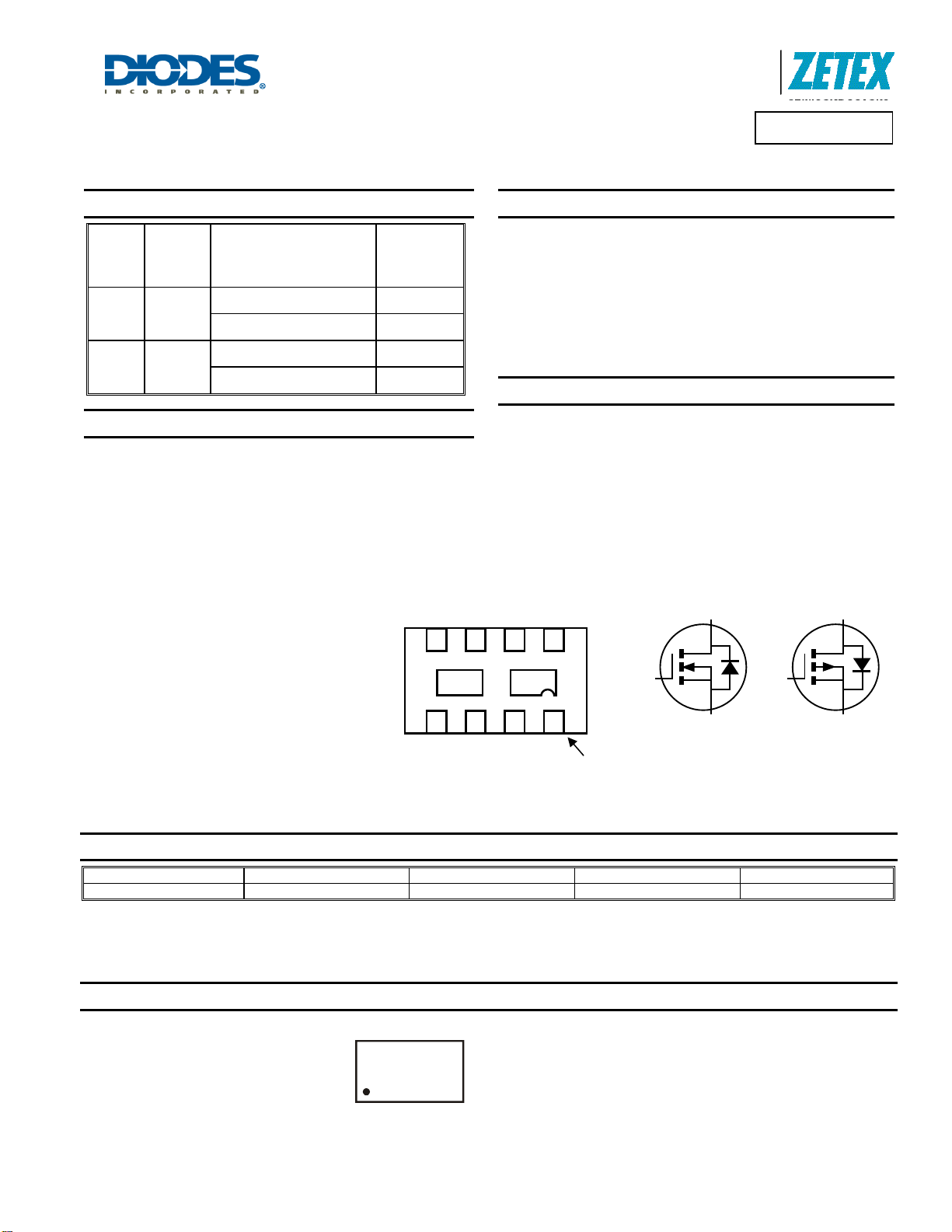

Marking Information
Bottom View
Pin-Out
D2 D2 D1 D1
G2 S2 G1 S1
D2
D1
Pin 1
Equivalent Circuit
D2
S2
G2
D1
Q1 N-Channel Q2 P-Channel
S1
G1
Top View
Bottom View
DFN3020B-8
C01 = Product Type Marking Code
Top view, Dot Denotes Pin 1
C01
