ZXMN6A07F
Document Number DS33547 Rev. 9 - 2
1 of 8
www.diodes.com
July 2015
© Diodes Incorporated

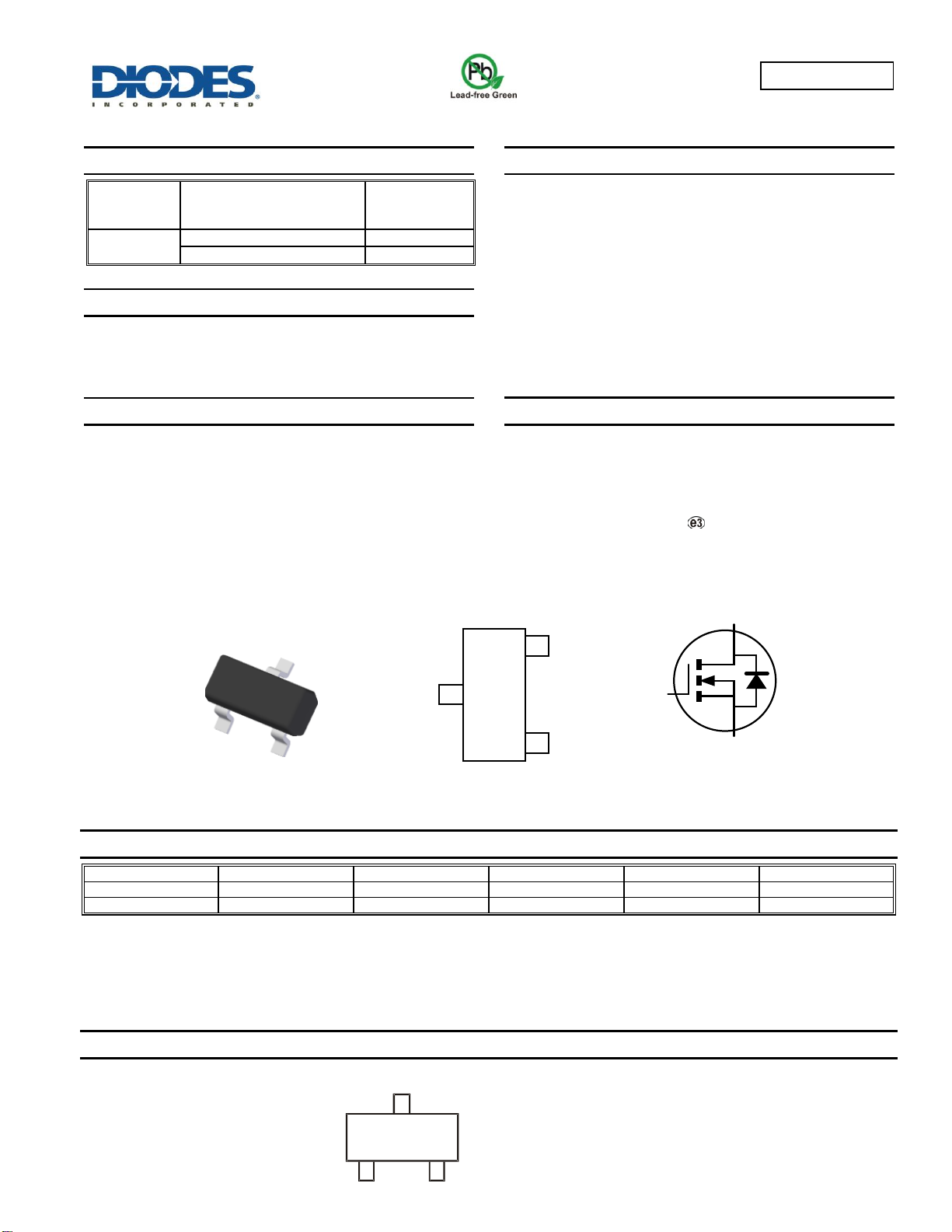

ZXMN6A07F
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(ON)
Max I
D
T
A
= +25°C
(Note 7)
60V
250mΩ @ V
GS
= 10V
1.4A
350mΩ @ V
GS
= 4.5V
1.2A
Description
This MOSFET utilizes a unique structure that combines the benefits
of low on-resistance with a fast switching speed, making it ideal for
high-efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Relay And Solenoid Driving
Motor Control
Features
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Charge
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound,
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.008 grams (Approximate)
Ordering Information (Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN6A07FTA
AEC-Q101
7N6
7
8
3,000
ZXMN6A07FQTA
Automotive
7N6
7
8
3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-Free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Top View
Equivalent Circuit
7N6 = Product Type Marking Code
Top View
Pin Out
D
S
G
SOT23
D
S
G
7N6
