ZXMN10A11G
Document Number DS32056 Rev. 6 - 2
1 of 8
www.diodes.com
January 2010
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
ZXMN10A11G
ADVANCE INFORMATION
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25°C
100V
350mΩ @ V
GS
= 10V
2.4A
450mΩ @ V
GS
= 6.0V
2.1A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
• Motor control
• DC-DC Converters
• Power management functions
• Uninterrupted power supply
Features and Benefits
• Fast switching speed
• Low gate drive
• Low input capacitance
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
• Weight: 0.112 grams (approximate)
Ordering Information
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXMN10A11GTA See below 7 12 1,000
Marking Information

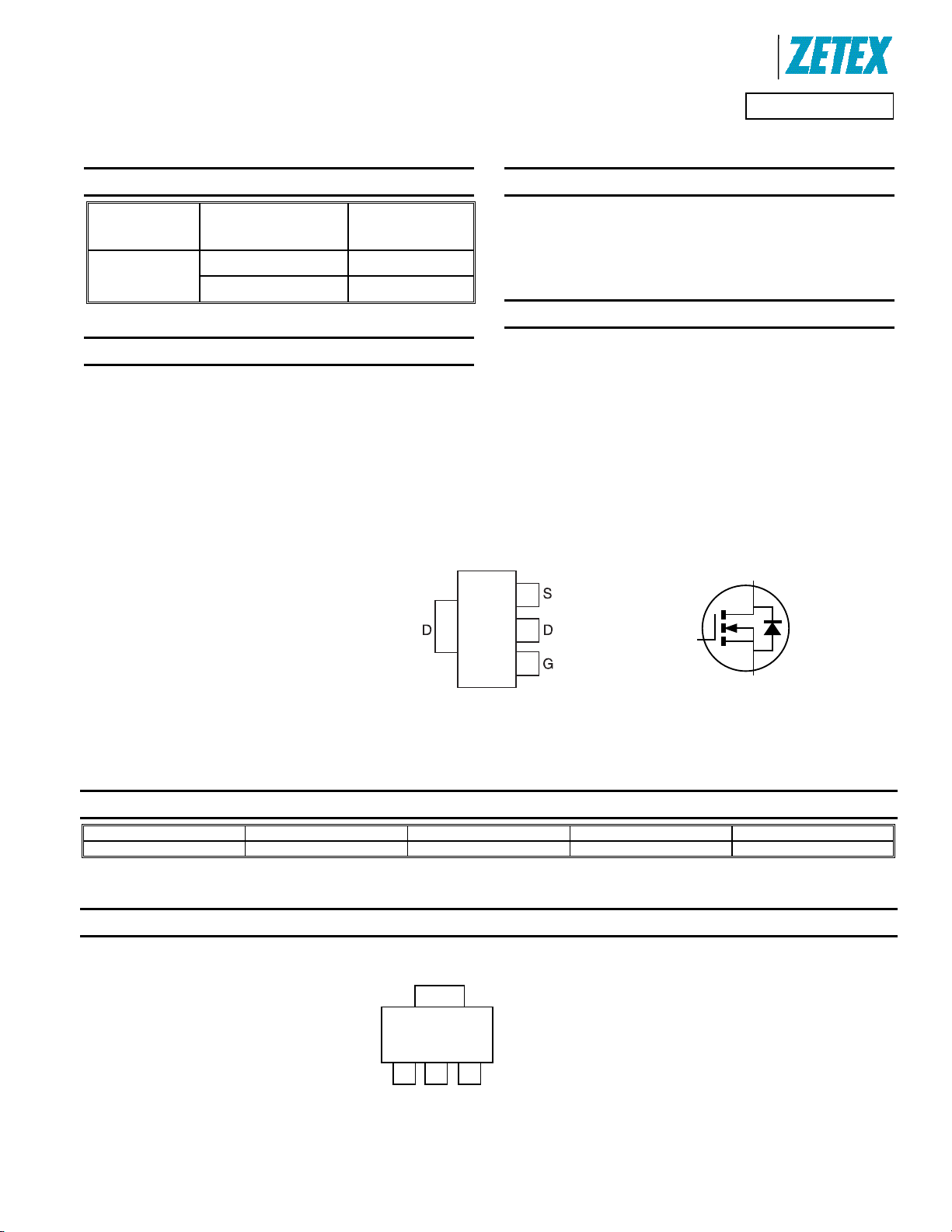

Top View
SOT223
ZXMN = Product Type Marking Code, Line 1
10A11 = Product Type Marking Code, Line 2
ZXMN
10A11
Equivalent Circuit
D
S
G
Pin Out - Top View
