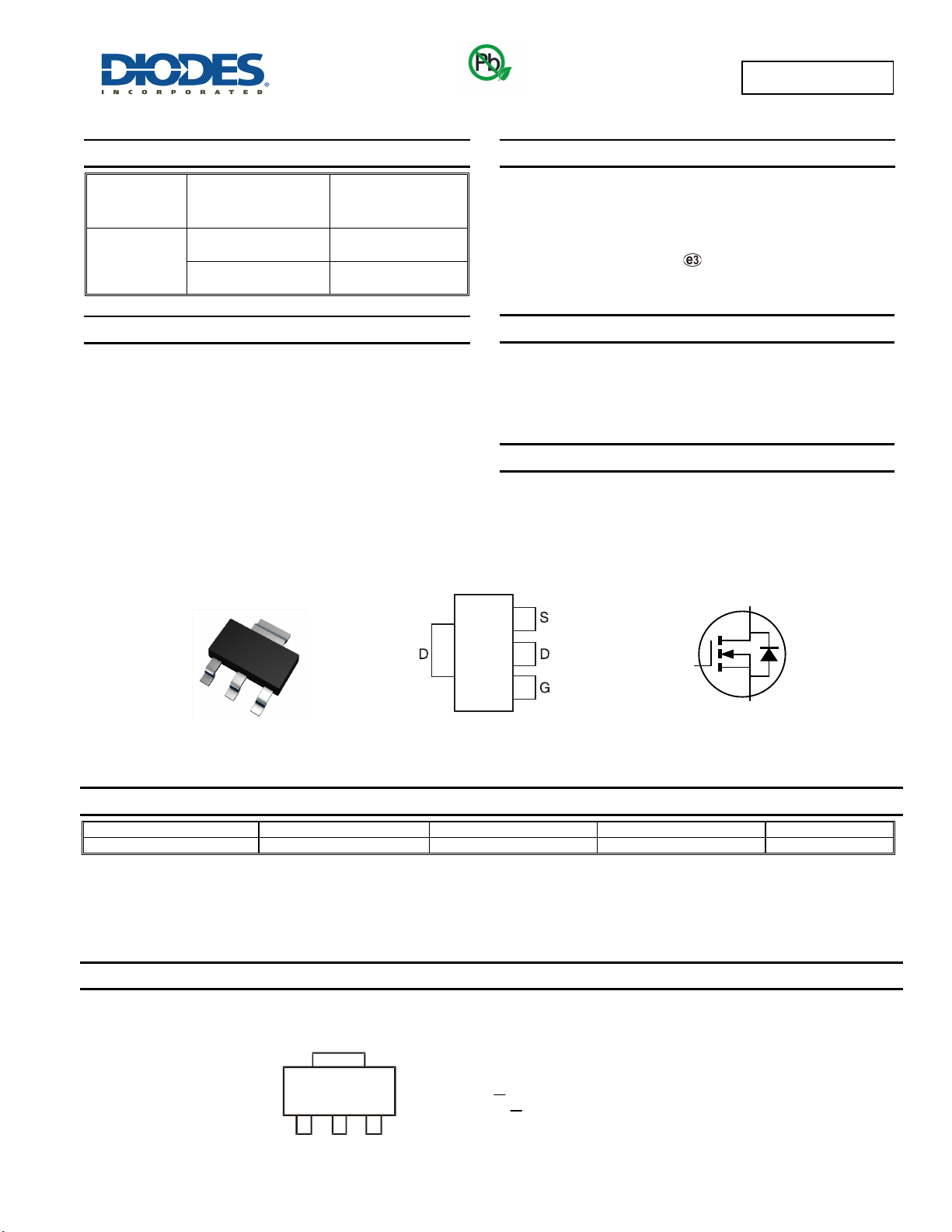

ZXMN10A08G
Document number: DS33567 Rev. 2 - 2
1 of 7
www.diodes.com
March 2015
© Diodes Incorporated
ZXMN10A08G
100V SOT223 N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25°C
100V
250mΩ @ V
GS
= 10V
2.9A
300mΩ @ V
GS
= 6V
2.6A
Features and Benefits
• Low On-Resistance
• Fast Switching Speed
• Low Threshold
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish
• Weight: 0.112 grams (Approximate)
Description
This new generation trench MOSFET from Zetex features a unique
structure, combining the benefits of low on-resistance and fast
switching, making it ideal for high-efficiency, power management
applications.
Applications
• DC-DC Converters
• Power Management Functions
• Disconnect Switches
• Motor Control
Ordering Information
(Note 4)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN10A08GTA ZXMN10A08 7 12 1,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Equivalent Circuit
D
S
G
Pin Out - Top
View
Top View
SOT223
Green
ZXMN10A08 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
SOT223
4310
YWW
ZVN
ZXM
N
10A08
