ZXMP10A17E6
Document Number DS32027 Rev. 3 - 2
1 of 8
www.diodes.com
December 2009
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
ZXMP10A17E6
ADVANCE INFORMATION
100V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25°C
-100V
350mΩ @ V
GS
= -10V
-1.6
450mΩ @ V
GS
= -6.0V
-1.4
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
• Motor control
• DC-DC Converters
• Power management functions
• Uninterrupted power supply
Features and Benefits
• Fast switching speed
• Low gate drive
• Low input capacitance
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT23-6
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
• Weight: 0.018 grams (approximate)
Ordering Information
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXMP10A17E6TA See below 7 8 3,000
Marking Information

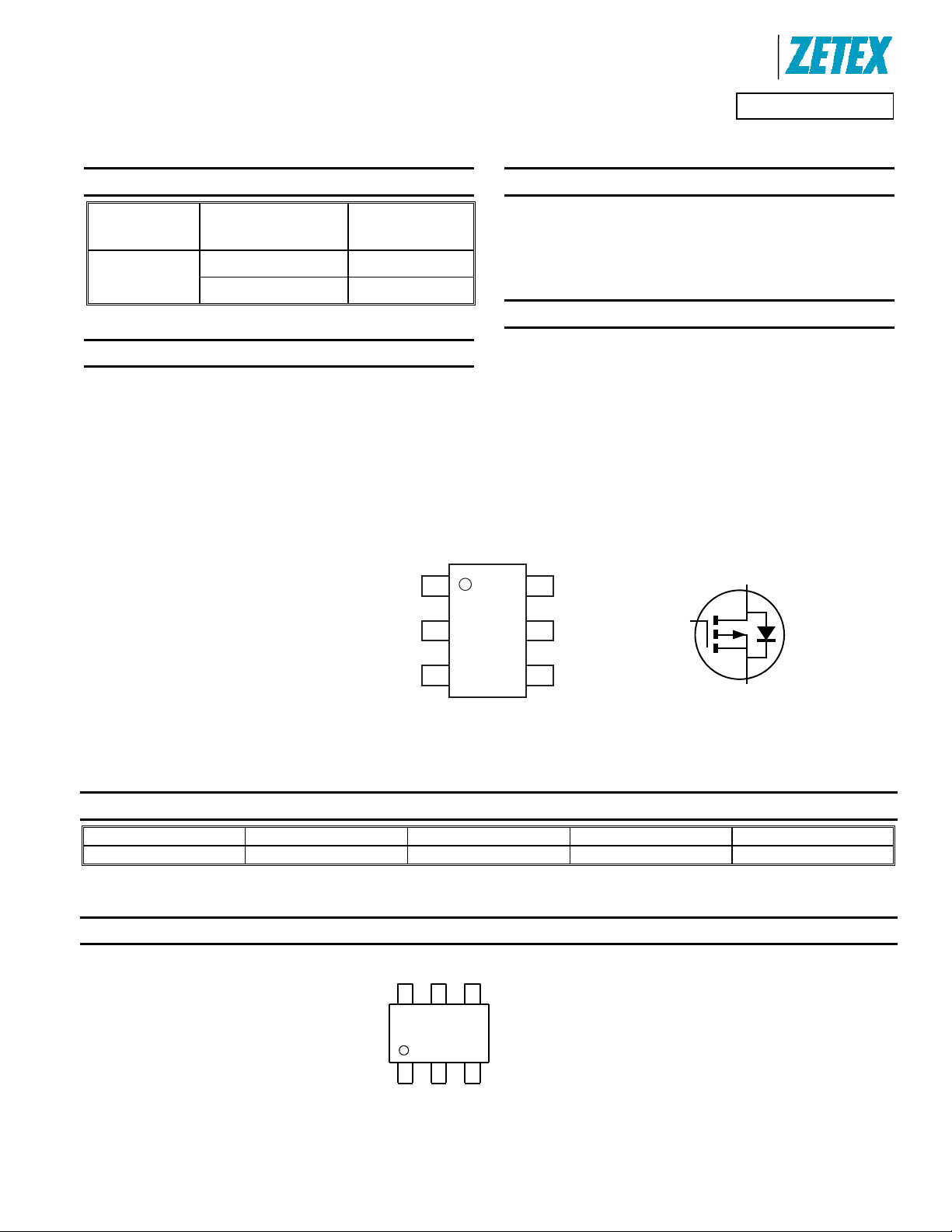

Pin Out - Top View
Equivalent Circuit
D
S
G
D
D
G
D
D
S
Top View
SOT23-6
1A17 = Product Type Marking Code
1A17
Please click here to visit our online spice models database.
