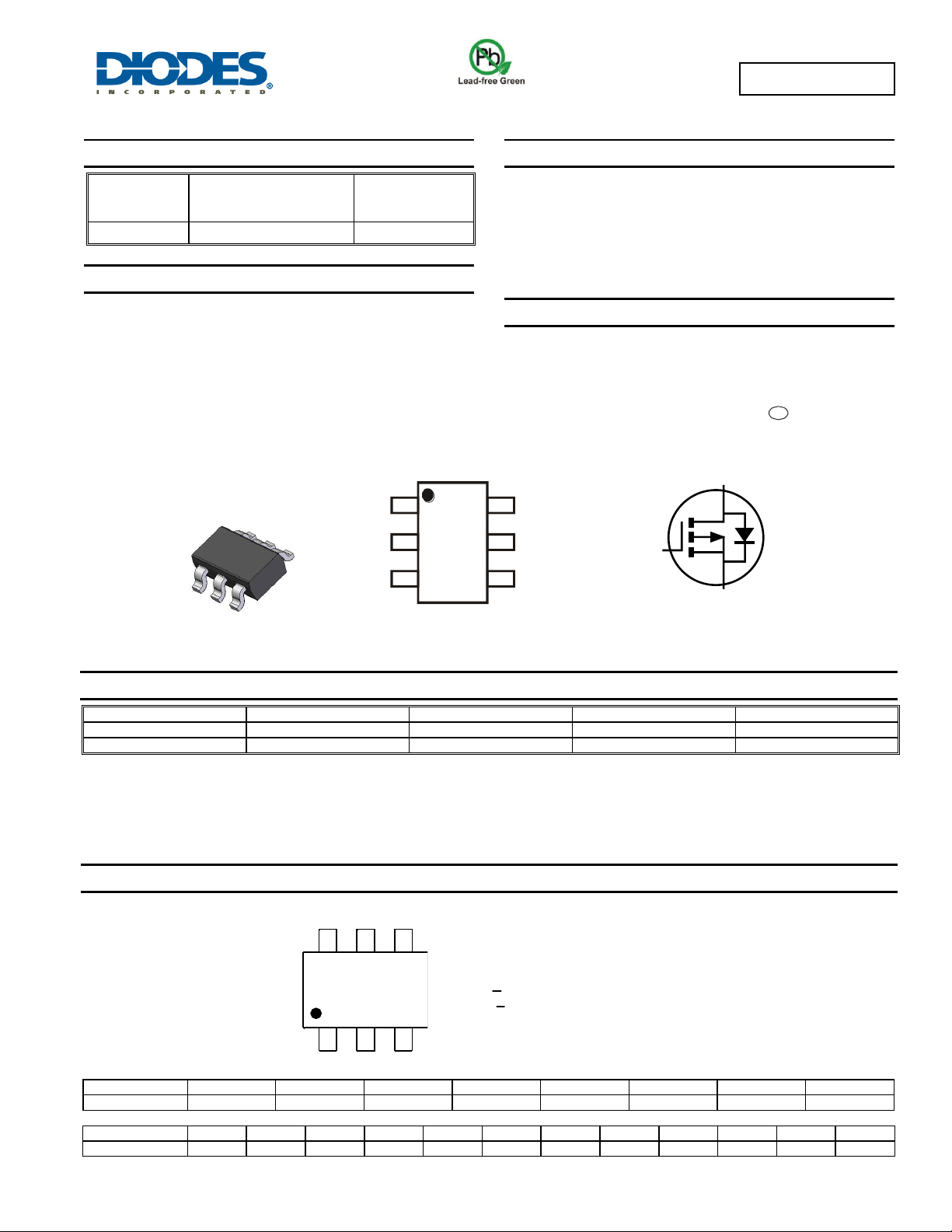

ZXMP3A17E6
Datasheet Number: DS33578 Rev. 3 - 2
1 of 7
www.diodes.com
March 2015
© Diodes Incorporated
ZXMP3A17E6
NEW PROD UCT
D
S
G
30V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(ON)
Max I
D
T
A
= +25C
(Note 6)
-30V
70m @ V
GS
= -10V
-4A
Description and Applications
This new generation of TRENCH MOSFETs from Zetex utilizes a
unique structure that combines the benefits of low on-resistance with
fast switching speed. This makes them ideal for high efficiency, low
voltage, power management applications.
DC - DC Converters
Power Management Functions
Disconnect Switches
Motor Control
Features and Benefits
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Drive
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.016 grams (Approximate)
Ordering Information (Note 4)
Part Number
Marking
Reel Size (inch)
Tape Width (mm)
Quantity Per Reel
ZXMP3A17E6TA
317
7
8
3000
ZXMP3A17E6TC
317
13
8
10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2015
2016
2017
2018
2019
2020
2021
2022
Code
C
D
E
F
G
H
I
J
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
317 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: C = 2015)
M or M = Month (ex: 9 = September)
YM
317
e3
Top View
SOT26
Pin-Out (Top View)
Equivalent Circuit
D
D
G
D
D
S
1
2
3
6
5
4
