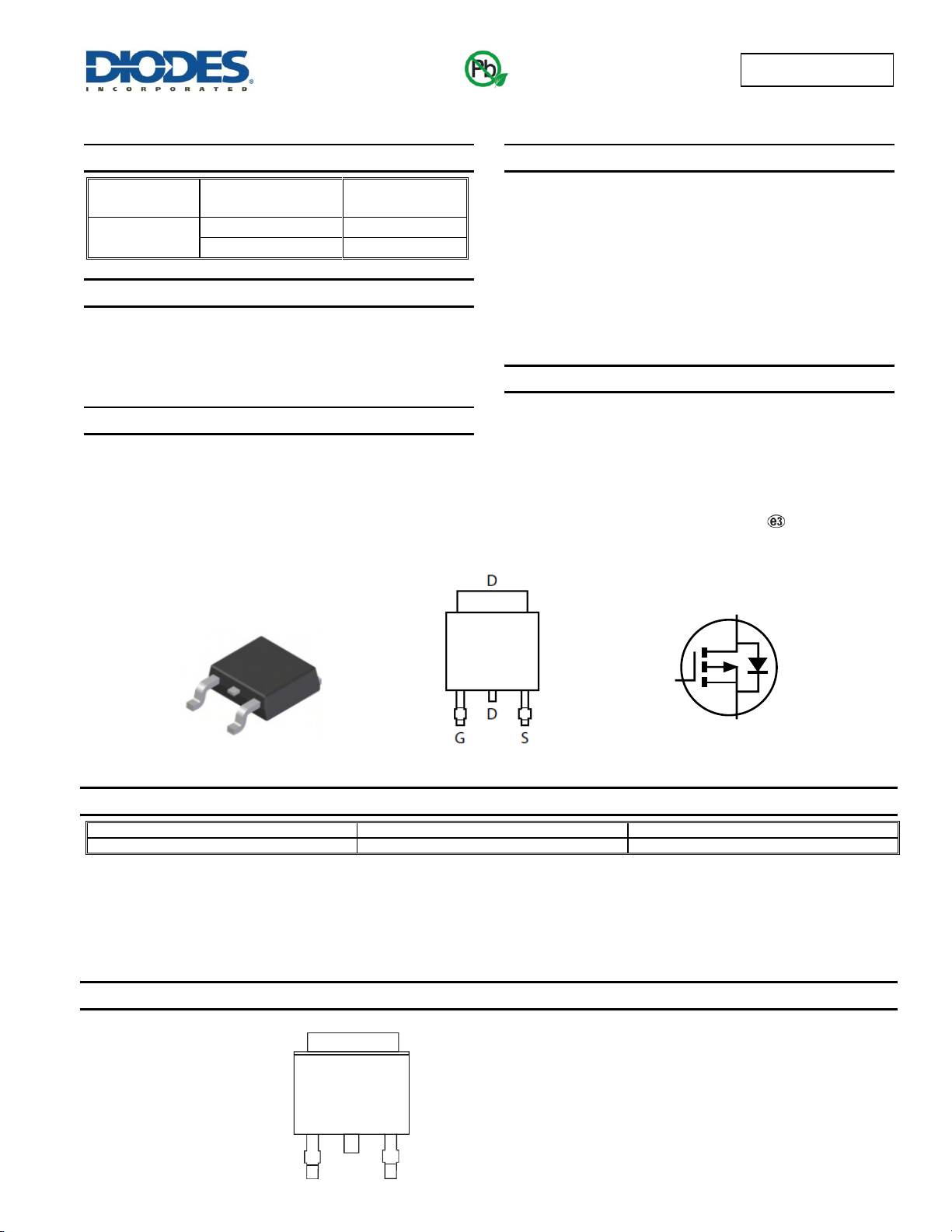

ZXMP7A17KQ
Document Number DS38015 Rev. 1 - 2
1 of 7
www.diodes.com
June 2015
© Diodes Incorporated
ADVANCE INFO R MA T I O N
ZXMP7A17KQ
D
S
G
70V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(on)
max
I
D
T
A
= +25°C
-70V
160mΩ @ V
GS
= -10V
-5.7A
250mΩ @ V
GS
= -4.5V
-5.3A
Description
This new generation of trench MOSFETs utilizes a unique structure
that combines the benefits of low on-resistance with fast switching
speed. The ZXMP7A17KQ is ideal for high efficiency, low voltage
power management applications.
Applications
DC-DC Converters
Power Management Functions
Disconnect Switches
Motor Control
Class D Audio Output Stages
Features and Benefits
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Drive
DPAK Package
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.315 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
ZXMP7A17KQTC
TO252
2,500/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Green
Top View
TO252
Top View
Pin Out
Equivalent Circuit
ZXMP7A17 = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 10 = 2010)
WW = Week (01 - 53)
YYWW
7A17
ZXMP
TO252
