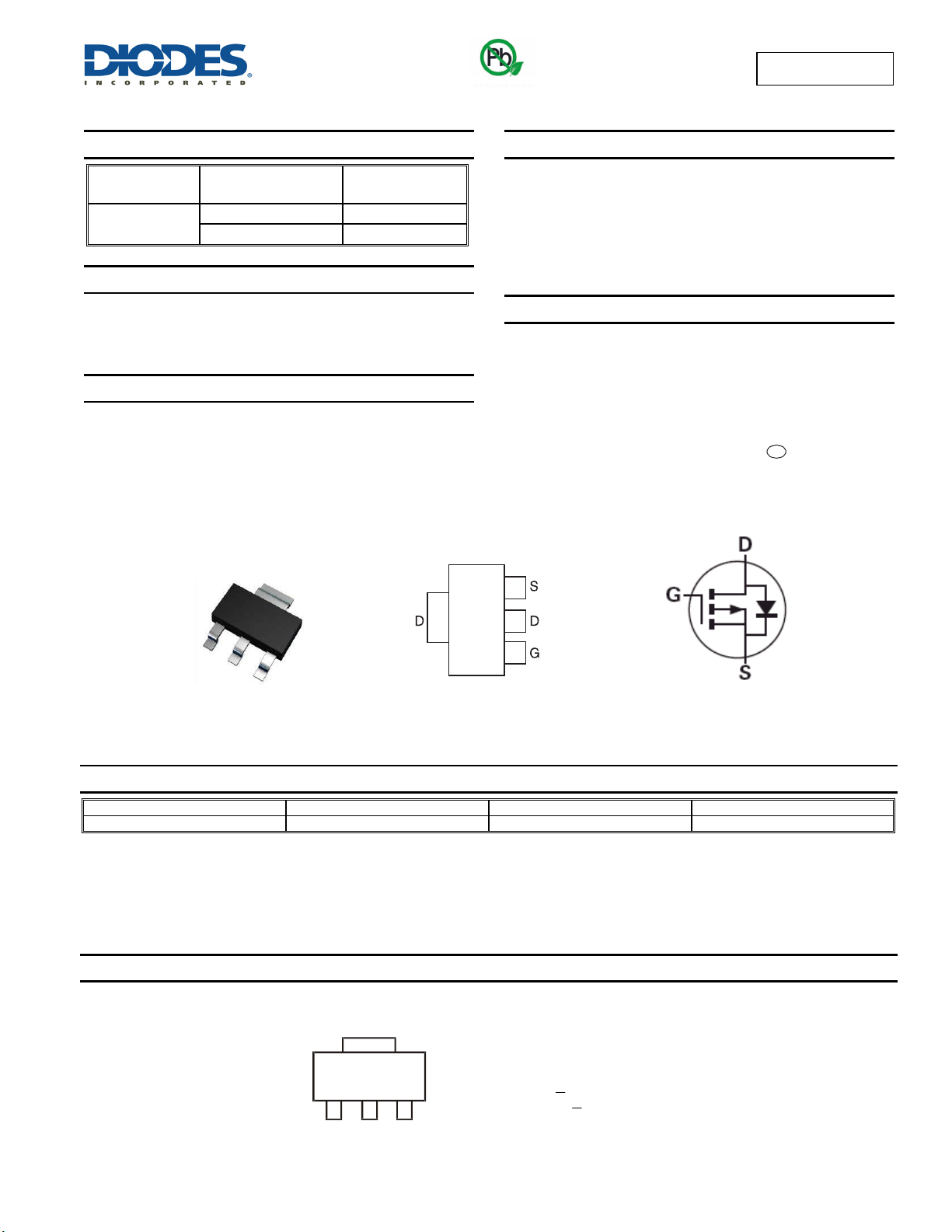

ZXMP7A17G
Document Number DS33594 Rev. 5 - 2
1 of 6
www.diodes.com
March 2015
© Diodes Incorporated
ADVANCE INFO R MA T I O N
ZXMP7A17G
70V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-70V
160mΩ @ V
GS
= -10V
-2.6A
250mΩ @ V
GS
= -4.5V
-1.6A
Description
This MOSFET is designed to minimize the on-state resistance
and yet
maint
ain superior switching performance, making it ideal for high
efficiency power management applications.
Applications
• Motor Control
• Transformer Driving Switch
• DC-DC Converters
• Power Management Functions
• Uninterrupted Power Supply
Features and Benefits
• 100% Unclamped Inductive Switch (UIS) Test in Production
• Low On-Resistance
• Fast Switching Speed
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals Connections: See Diagram Below
• Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
• Weight: 0.112 grams (Approximate)
Ordering Information
(Note 4)
Part Number
Qualification
Case
Packaging
ZXMP7A17GTA Commercial SOT223 1,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Pin Out - Top View
Top View
SOT223
ZXMP
7A17
YWW
ZXMP7A17 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
e3
Green
Equivalent Circuit
SOT223
