AD2S1200/AD2S1205 User Guide
UG-365
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the AD2S1200/AD2S1205 Resolver-to-Digital Converters
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. D | Page 1 of 24
FEATURES
Full-featured evaluation board for the AD2S1200 and
AD2S1205
On-board excitation buffer
On-board power supplies
Standalone capability
PC control in conjunction with system demonstration
platform (EVAL-SDP-CB1Z)
PC software for control and data analysis
EVALUATION BOARD DESCRIPTION
The EVA L -AD2S1200/05SDZ is a full-featured evaluation board
designed to allow the user to easily evaluate all features of the
AD2S1200 and the AD2S1205 resolver-to-digital converters.
To evaluate the AD2S1200, order the EVAL -AD2S1200SDZ,
and to evaluate the AD2S1205, order the EVA L -AD2S1205SDZ
(see Table 7). The evaluation board can be controlled via the
SDP connector (J2). The SDP board allows the evaluation board
to be controlled through the USB port of a PC using the E VA L -
AD2S1200/05SDZ software.
On-board components include: the AD8664 precision rail-to-rail
quad op amp, the ADP1621 current mode step-up converter, the
ADM1185 4-channel voltage monitor and sequencer, the
ADP3303 high accuracy 200 mA low dropout linear regulator,
the ADP2301 step-down switching regulator, the ADP190 high-
side power switch, the ADM811 voltage supervisory device, and
the ADG3304 and ADG3308 bidirectional logic level translators.
The evaluation board features a high current driver with user
configurable gain that amplifies and biases the excitation
outputs, which allows the evaluation board to be connected
directly to a resolver. This high current driver circuit is
described in detail in Circuit Note CN-0192, available from
Analog Devices, Inc.
EVAL-AD2S1200/05SDZ CONTENTS
Evaluation board hardware
Evaluation software CD for the AD2S1200/AD2S1205
Mains power supply adapter
ADDITIONAL EQUIPMENT NEEDED
System demonstration platform (EVAL-SDP-CB1Z) when
using evaluation software
Resolver or resolver simulator

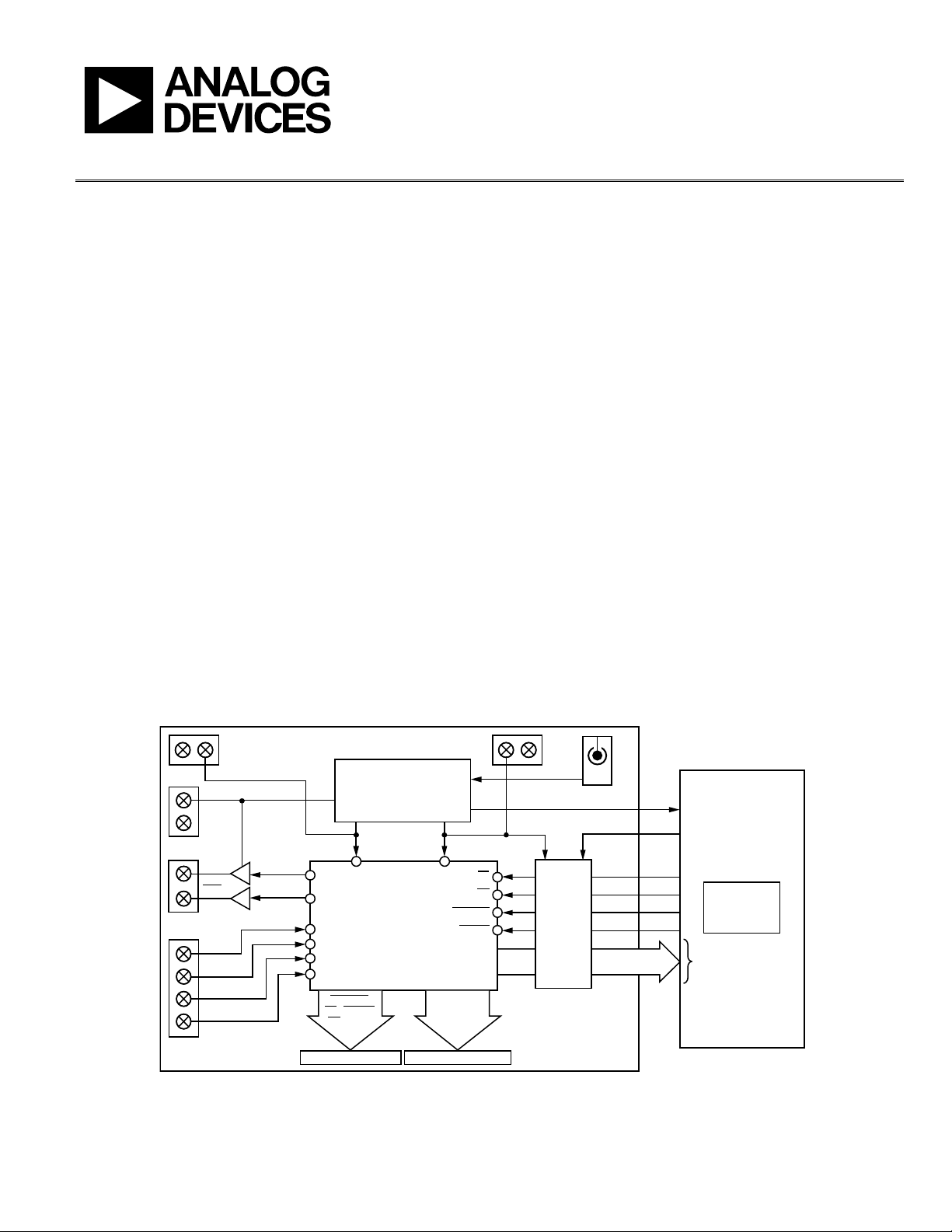

FUNCTIONAL BLOCK DIAGRAM
Figure 1. EVAL-AD2S1200/05SDZ Block Diagram
LEVEL
SHIFTERS
AV
DD
, DV
DD
, +12V
DC
JACK
ON-BOARD
POWER SUPPLIES
DVDDAVDD
+12V
EXC
EXC
Sin
SinLO
CosLO
Cos
AD2S1200/
AD2S1205
SDP BOARD
CS
RD
SAMPLE
RDVEL
PARALLEL
5V
VDRIVE 3.3V
10442-001
AV
DD
DATA BUS
D0 TO D11
DV
DD
D0 TO D11,
A,B,NM, DIR,
DOS, LOT
26-WAY CONNECTOR
SAMPLE,
CS, RDVEL,
RD, SCLK,
SDO
8-WAY CONNECTOR
ADSP-BF527
DSP
LEVEL
SHIFTERS
