Dual, 16-/12-Bit nanoDAC+
with 2 ppm/°C Reference, SPI Interface
Data Sheet
AD5689R/AD5687R
FEATURES
High relative accuracy (INL): ±2 LSB maximum at 16 bits
Low drift 2.5 V reference: 2 ppm/°C typical
Tiny package: 3 mm × 3 mm, 16-lead LFCSP
TUE: ±0.1% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.1% of FSR maximum
High drive capability: 20 mA, 0.5 V from supply rails
User-selectable gain of 1 or 2 (GAIN pin)
Reset to zero scale or midscale (RSTSEL pin)
1.8 V logic compatibility
50 MHz SPI with readback or daisy chain
Low glitch: 0.5 nV-sec
Robust 4 kV HBM and 1.5 kV FICDM ESD ratings
Low power: 3.3 mW at 3 V
2.7 V to 5.5 V power supply
−40°C to +105°C temperature range
APPLICATIONS
Optical transceivers
Base station power amplifiers
Process control (PLC I/O cards)
Industrial automation
Data acquisition systems

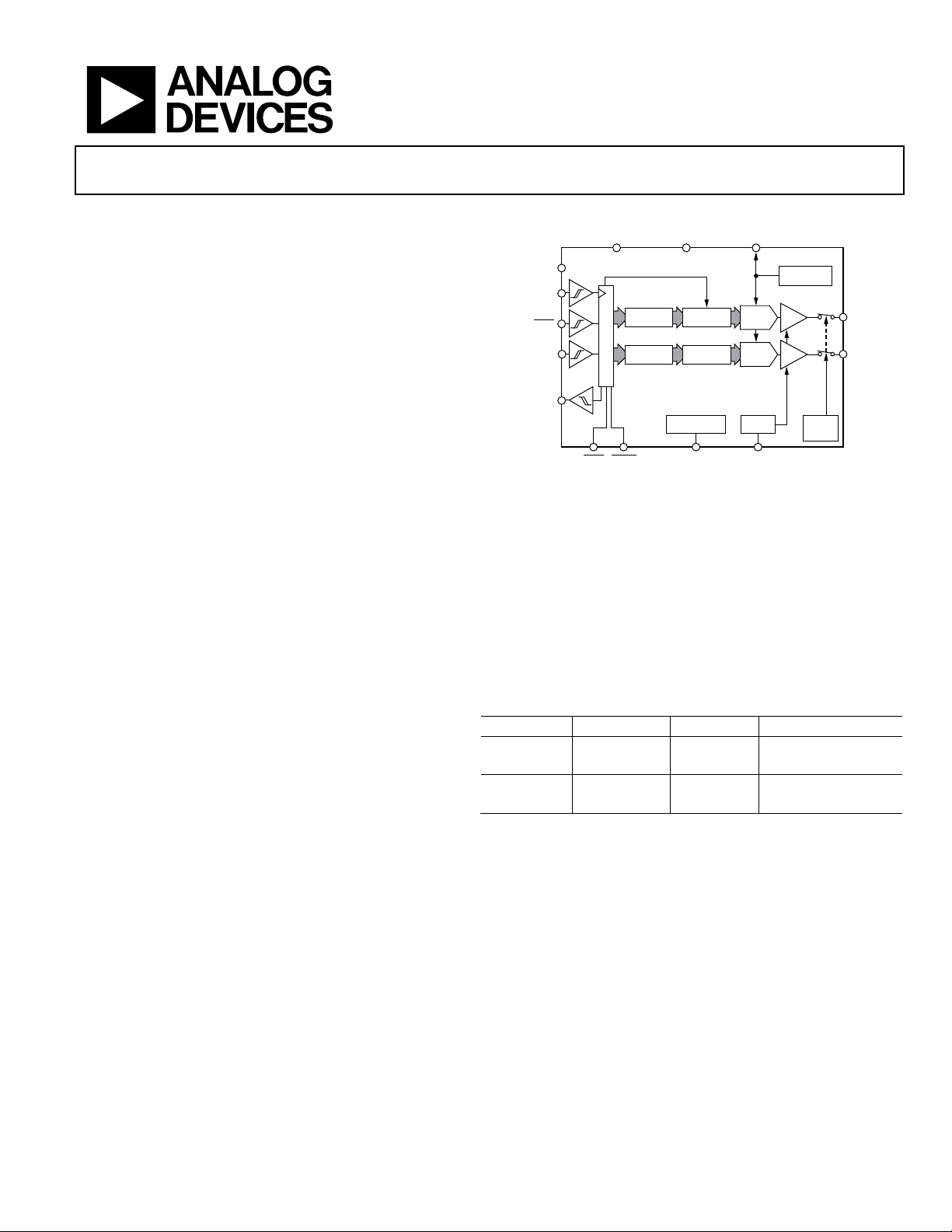

FUNCTIONAL BLOCK DIAGRAM
Figure 1.
GENERAL DESCRIPTION
The AD5689R/AD5687R members of the nanoDAC+™
family are low power, dual, 16-/12-bit buffered voltage output
digital-to-analog converters (DACs). The devices include
a 2.5 V, 2 ppm/°C internal reference (enabled by default)
and a gain select pin giving a full-scale output of 2.5 V
(gain = 1) or 5 V (gain = 2). The devices operate from
a single 2.7 V to 5.5 V supply, are guaranteed monotonic
by design, and exhibit less than 0.1% FSR gain error and
1.5 mV offset error performance. Both devices are available
in a 3 mm × 3 mm LFCSP and a TSSOP package.
The AD5689R/AD5687R also incorporate a power-on reset
circuit and a RSTSEL pin that ensure that the DAC outputs
power up to zero scale or midscale and remain there until
a valid write takes place. Each part contains a per channel
power-down feature that reduces the current consumption
of the device to 4 µA at 3 V while in power-down mode.
The AD5689R/AD5687R use a versatile serial peripheral
interface (SPI) that operates at clock rates up to 50 MHz.
and both devices contain a V
LOGIC
pin that is intended for
1.8 V/3 V/5 V logic.
Table 1. Dual nanoDAC+ Devices
Interface
Reference
16-Bit
12-Bit
SPI Internal AD5689R AD5687R
External
AD5689
AD5687
I
2
C Internal N/A AD5697R
External N/A N/A
PRODUCT HIGHLIGHTS
1. High Relative Accuracy (INL).
AD5689R (16-bit): ±2 LSB maximum
AD5687R (12-bit): ±1 LSB maximum
2. Low Drift 2.5 V On-Chip Reference.
2 ppm/°C typical temperature coefficient
5 ppm/°C maximum temperature coefficient
3. Two Package Options.
3 mm × 3 mm, 16-lead LFCSP
16-lead TSSOP
SCLK
V
LOGIC
SYNC
SDIN
SDO
INPUT
REGISTER
DAC
REGISTER
STRING
DAC A
BUFFER
V
OUT
A
INPUT
REGISTER
DAC
REGISTER
STRING
DAC B
BUFFER
V
OUT
B
V
REF
GND
V
DD
POWER-
DOWN
LOGIC
POWER-ON
RESET
GAIN =
×1/×2
INTERFACE LOGIC
RSTSEL GAIN
LDAC RESET
AD5689R/AD5687R
2.5V
REFERENCE
11256-001
