EVAL-ADAU1452MINIZ User Guide
UG-636
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADAU1452 SigmaDSP Audio Processor
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 40
FEATURES
4 analog inputs
8 analog outputs
Stereo S/PDIF input and output
Self-boot EEPROM memory
EVALUATION KIT CONTENTS
EVAL-ADAU1452MINIZ evaluation board
EVAL-ADUSB2EBZ (USBi) communications adapter
USB cable with Mini-B plug
6 V ac-to-dc power supply
ADDITIONAL EQUIPMENT NEEDED
2 audio cables
2 optical cables
PC running Windows XP, Windows Vista, or Windows 7
DOCUMENTS NEEDED
ADAU1452 data sheet
AD1938 data sheet
AN-1006 Applications Note, Using the EVAL-ADUSB2EBZ
GENERAL DESCRIPTION
This user guide explains the design, setup, and operation of the
EVA L-ADAU1452MINIZ evaluation board.
This evaluation board provides access to the digital serial audio
ports of the ADAU1452, as well as some of its general-purpose
I/Os. An analog I/O is provided by the included AD1938 codec.
The ADAU1452 core is controlled by Analog Devices, Inc.,
SigmaStudio™ software, which interfaces to the board via a USB
connection. The board is powered by a 6 V dc supply, which is
regulated to the voltages required on the board. The printed
circuit board (PCB) is a 4-layer design, with a single ground
plane and a single power plane on the inner layers. The board
contains connectors for external analog inputs and outputs and
optical S/PDIF interfaces. The master clock is provided by the
integrated oscillator circuit and the on-board 12.288 MHz
passive crystal.
For more information about the ADAU1452 device, see the
ADAU1452 data sheet, which should be used in conjunction
with this user guide.

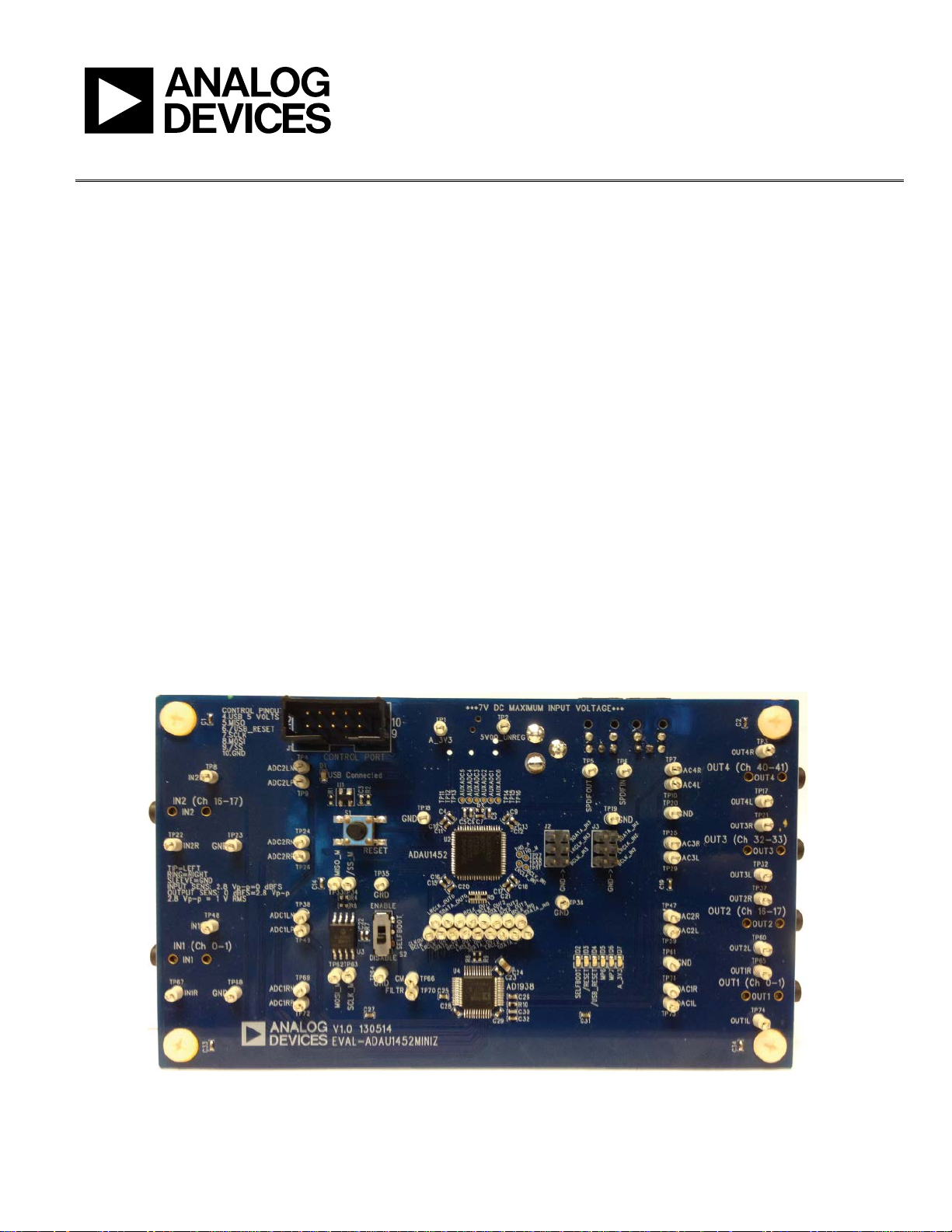

PHOTOGRAPH OF THE EVAL-ADAU1452MINIZ EVALUATION BOARD
11926-001
Figure 1. Evaluation Board Top Side Photograph
