Evaluation Board User Guide
UG-477
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADAU1772 Four ADC, Two DAC Low Power Codec
with Audio Processor
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 28
EVAL-ADAU1772Z PACKAGE CONTENTS
EVAL-ADAU1772Z evaluation board
EVAL-ADUSB2EBZ (USBi) communications adapter
USB cable with Mini-B plug
Evaluation board/software quick start guide
DOCUMENTS NEEDED
ADAU1772 data sheet
AN-1006 Applications Note, Using the EVAL-ADUSB2EBZ
GENERAL DESCRIPTION
This user guide explains the design and setup of the EVAL-
ADAU1772Z evaluation board.
This evaluation board provides full access to all analog and digital
I/Os on the ADAU1772. The ADAU1772 core is controlled by
Analog Devices, Inc., SigmaStudio™ software, which interfaces to
the board via a USB connection. The EVAL -ADAU1772Z can be
powered by a single AAA battery, by the USB bus, or by a single
3.8 V to 6 V supply; any of these are regulated to the voltages
required on the board. The printed circuit board (PCB) is a 4-layer
design, with a single ground plane and a single power plane on the
inner layers. The board contains connectors for external micro-
phones and speakers. The master clock can be provided externally
or by the on-board 12.288 MHz passive crystal.

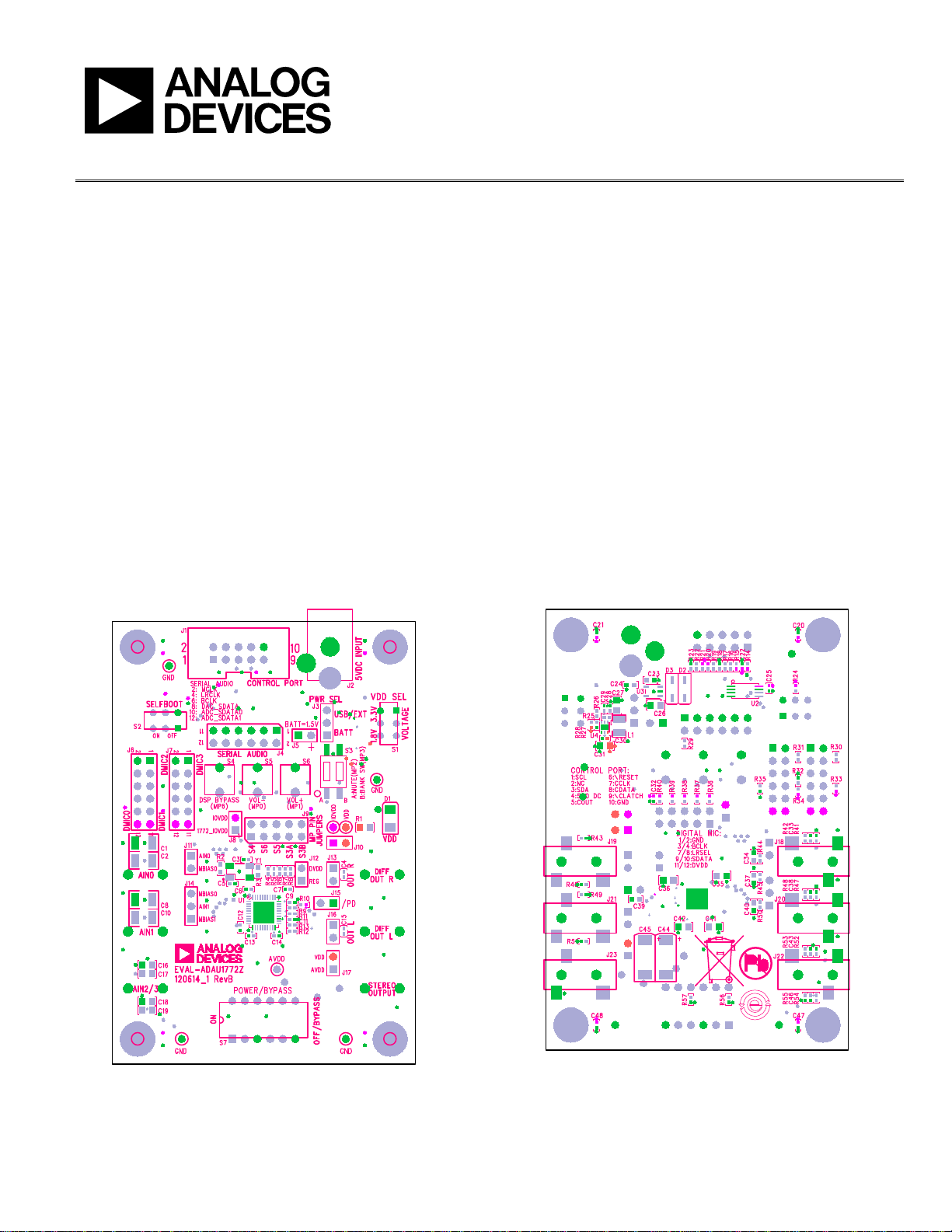

EVAL-ADAU1772Z EVALUATION BOARD TOP SIDE AND BOTTOM SIDE
11023-001
Figure 1. EVAL-ADAU1772Z Evaluation Board Top Side
11023-002
Figure 2. EVAL-ADAU1772Z Evaluation Board Bottom Side
