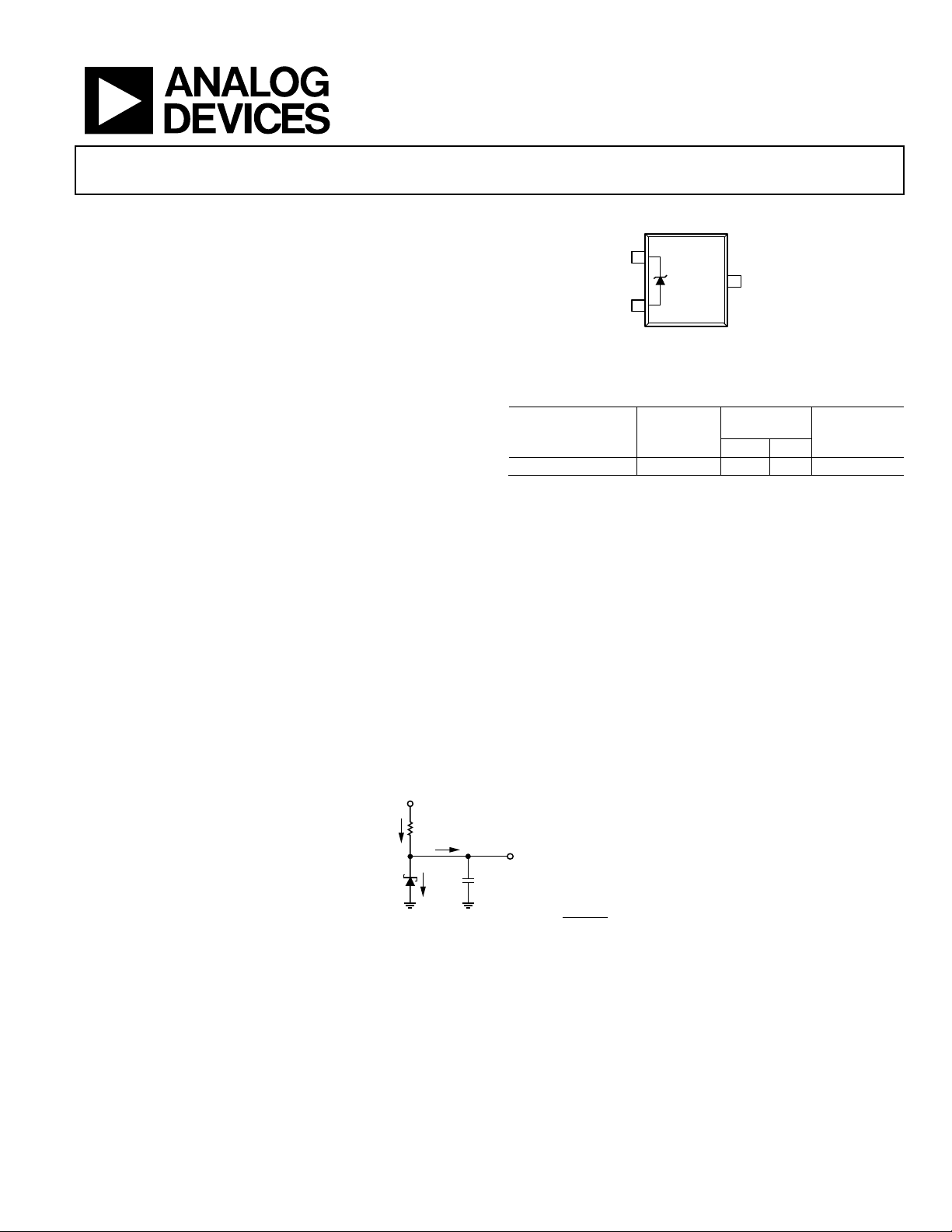

1.2 V Precision Low Noise
Shunt Voltage Reference
Data Sheet
ADR512
Rev. A Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2003–2012 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Precision 1.200 V Voltage Reference
Ultracompact 3 mm × 3 mm SOT-23 Package
No External Capacitor Required
Low Output Noise: 4 µV p-p (0.1 Hz to 10 Hz)
Initial Accuracy: ±0.3% Max
Temperature Coefficient: 60 ppm/°C Max
Operating Current Range: 100 µA to 10 mA
Output Impedance: 0.3 Ω Max
Temperature Range: −40°C to +85°C
APPLICATIONS
Precision Data Acquisition Systems
Battery-Powered Equipment:
Cellular Phone, Notebook Computer, PDA,
and GPS
3 V/5 V, 8-/12-Bit Data Converters
Portable Medical Instruments
Industrial Process Control Systems
Precision Instruments
PIN CONFIGURATION
NC = NO CONNECT. DO NOT
CONNECT TO THIS PIN.
V+
1
V–
2
TRIM/NC
3
ADR512
TOP VIEW
(Not to Scale)
03700-001
Figure 1. 3-Lead SOT-23
Table 1.
Output
Voltage (V
O
)
Initial
Accuracy
Temperature
Coefficient
(ppm/°C)
Model (mV) (%)
ADR512ARTZ-REEL7 1.200 3.5 0.3 60
GENERAL DESCRIPTION
Designed for space critical applications, the ADR512 is a low
voltage (1.200 V), precision shunt-mode voltage reference in the
ultracompact (3 mm × 3 mm) SOT-23 package. The ADR512
features low temperature drift (60 ppm/°C), high accuracy
(±0.30%), and ultralow noise (4 µV p-p) performance.
The ADR512’s advanced design eliminates the need for an
external capacitor, yet it is stable with any capacitive load. The
minimum operating current increases from a scant 100 µA to a
maximum of 10 mA. This low operating current and ease of use
make the ADR512 ideally suited for handheld battery-powered
applications.
A TRIM terminal is available on the ADR512 to provide
adjustment of the output voltage over ±0.5% without affecting
the temperature coefficient of the device. This feature provides
users with the flexibility to trim out any system errors.
ADR512
V
OUT
= 1.2V
I
Q
I
L
+ I
Q
R
BIAS
V
S
I
L
C
OUT
(OPTIONAL)
R
BIAS
=
V
S
– V
OUT
I
L
+ I
Q
03700-002
Figure 2. Typical Operating Circuit
