FEATURES
● PROVIDES FAST AND EASY
PERFORMANCE TESTING FOR
ADS830/831
● AC- OR DC-COUPLED INPUTS
● SINGLE-ENDED OR DIFFERENTIAL
INPUT CONFIGURATION
● EXTERNAL REFERENCE OPTION
DESCRIPTION

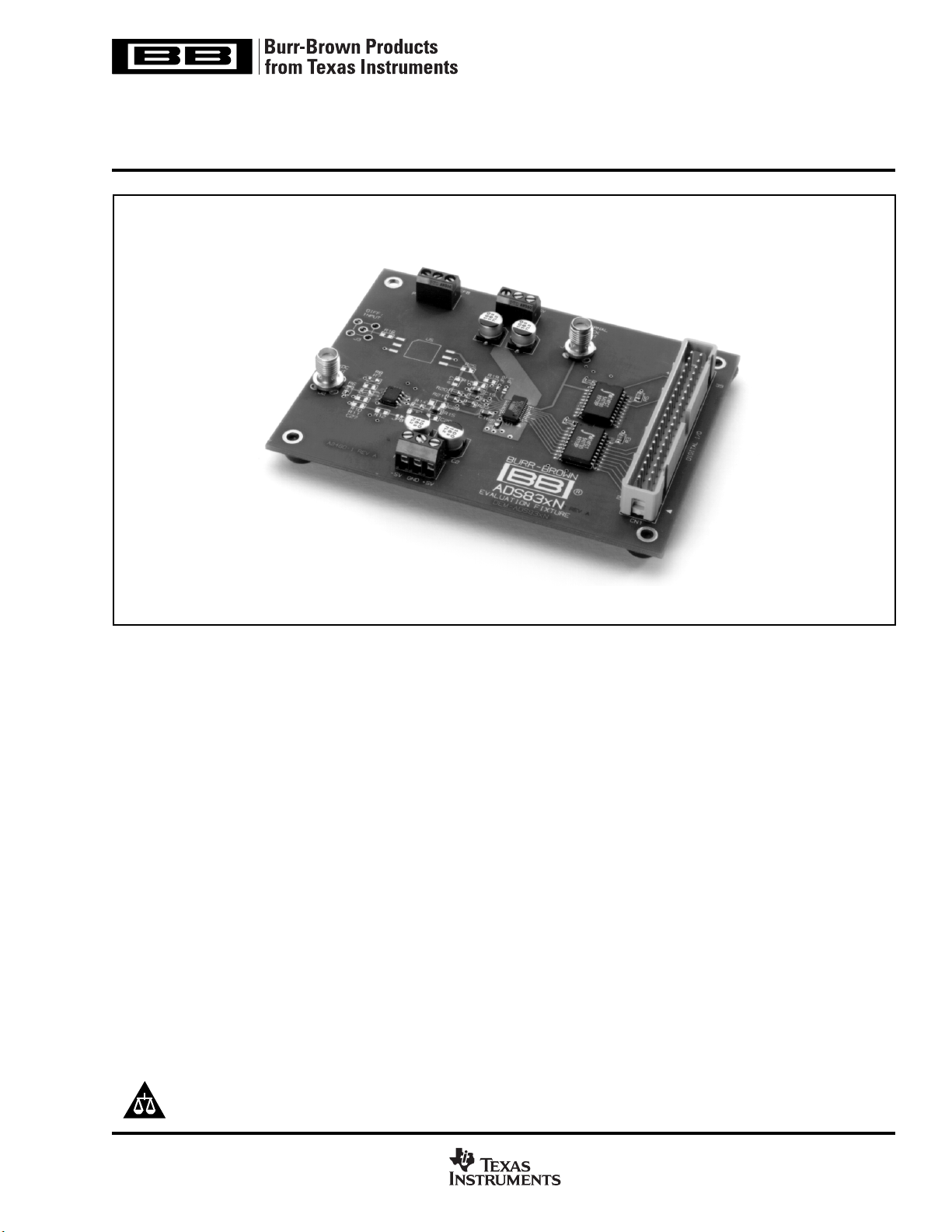

The DEM-ADS83xE evaluation fixture is designed for ease
of use when evaluating the 8-bit high speed Analog-to-
Digital (A/D) converter ADS830 or ADS831. The ADS830
operates with a 60Msps maximum sampling rate while the
ADS831 run up to 80Msps. Because of its flexible design,
the user can evaluate the converter in many different con-
figurations: either with DC-coupled or ac-coupled inputs,
single-ended, or differential inputs. The data output of the
ADS83x-E converter are decoupled from the connector by
CMOS octal logic buffer.
DEM-ADS83xE
SBAU072 – SEPTEMBER 2001
Copyright © 1998, Texas Instruments Incorporated
