EVAL-ADuM3123EBZ User Guide
UG-918
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the ADuM3123 iCoupler, 4.0 A, Isolated Precision Gate Driver
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 6
FEATURES
4.0 A peak output current
High frequency operation: 1 MHz maximum
CMOS input logic levels
4.5 V to 18 V output drive
Supports TO-263 or TO-252 IGBT/MOSFETs
REQUIRED DOCUMENTS
ADuM3123 data sheet
SUPPORTED iCoupler MODELS
ADuM3123ARZ
ADuM3123BRZ
ADuM3123CRZ
GENERAL DESCRIPTION
The EVAL-ADuM3123EBZ supports the ADuM3123 isolated
precision gate driver. Because the evaluation board has footprints
for isolated gate bipolar transistors (IGBTs) and MOSFETs in
TO-263 or TO-252 packages, respectively, the ADuM3123 can
be evaluated with many different power devices.
The ADuM3123ARZ model represents a superset of the
ADuM3123 models because it has the lowest minimum output
voltage (4.4 V). The ADuM3123BRZ and ADuM3123CRZ models
have minimum output voltages of 7.4 V and 11.1 V, respectively.
Complete information about the ADuM3123 is available in the
ADuM3123 data sheet, which should be consulted in conjunction
with this user guide when using the evaluation board.

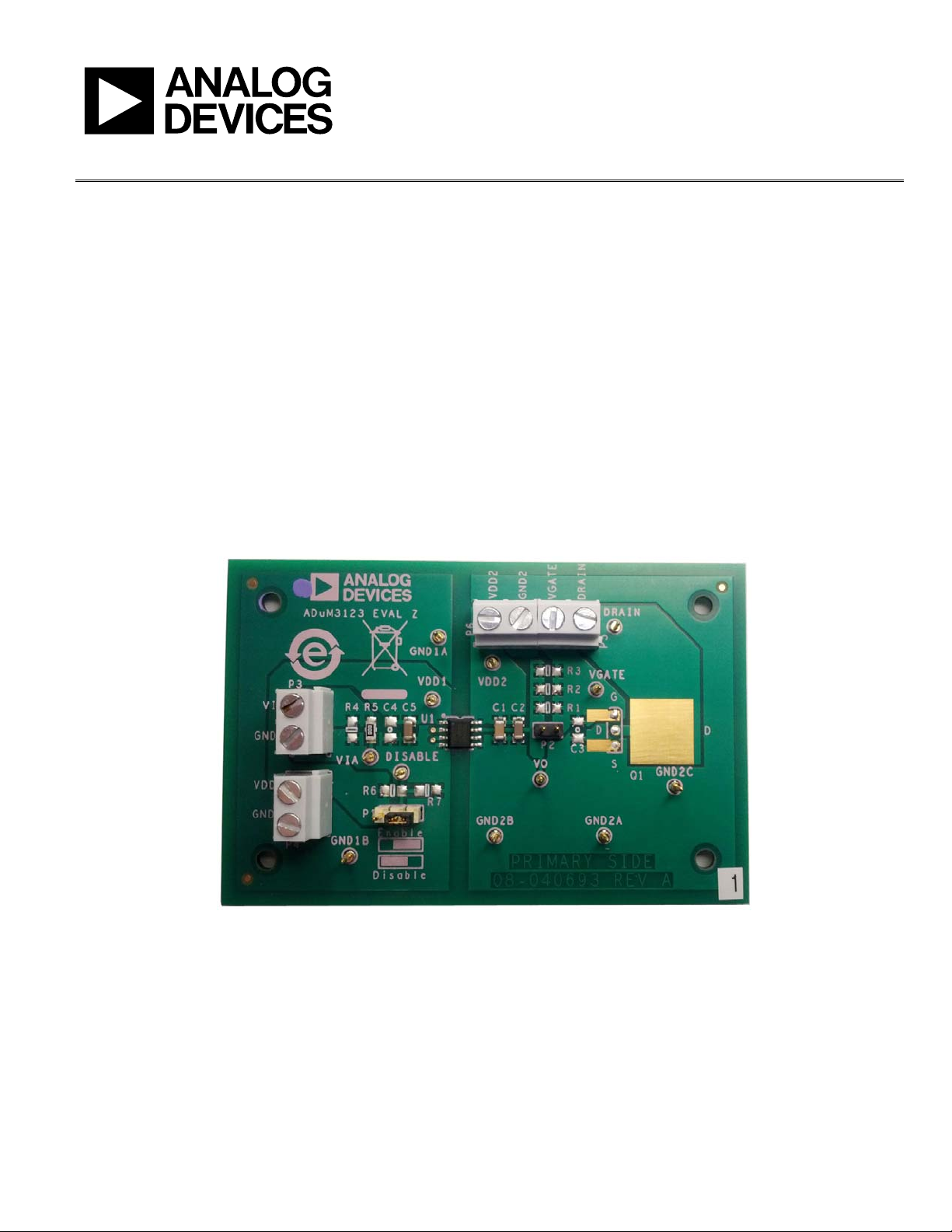

ADUM3123 EVALUATION BOARD
14069-001
Figure 1.
