AP7361
Document number: DS33626 Rev. 9 - 2
1 of 22
www.diodes.com
March 2014
© Diodes Incorporated
A
P7361
1A LOW DROPOUT ADJUSTABLE AND FIXED-MODE REGULATOR WITH ENABLE
Description
The AP7361 is a 1A, adjustable and fixed output voltage, ultra-low
dropout linear regulator with enable. The device includes pass
element, error amplifier, band-gap reference, current limit and thermal
shutdown circuitry. The device is turned on when EN pin is set to logic
high level.
The characteristics of the low dropout voltage and low quiescent
current make it suitable for low to medium power applications, for
example, laptop computers, audio and video applications, and battery
powered devices. The typical quiescent current is approximately
70µA. Built-in current-limit and thermal-shutdown functions prevent
IC from damage in fault conditions.
The AP7361 is available in U-DFN3030-8, SOT89-5, SOT223, TO252
and SO-8EP package.
Features
• Wide input voltage range: 2.2V - 6V
• 150mV Very Low Dropout at 300mA Load
• 500mV Very Low Dropout at 1A Load
• Low Quiescent Current (I
Q
): 70µA Typical
• Adjustable Output Voltage Range: 1V to 5.0V
• Fixed Output Options: 1V to 3.3V
• Very Fast Transient Response
• High PSRR
• Accurate Voltage Regulation
• Current Limiting and Short Circuit Protection
• Thermal Shutdown Protection
• Stable with Ceramic Output Capacitor ≥ 2.2µF
• Ambient Temperature Range -40°C to +85°C
• U-DFN3030-8, SOT89-5, SOT223/SOT223R, TO252/TO252R
and SO-8EP
• Available in “Green” Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

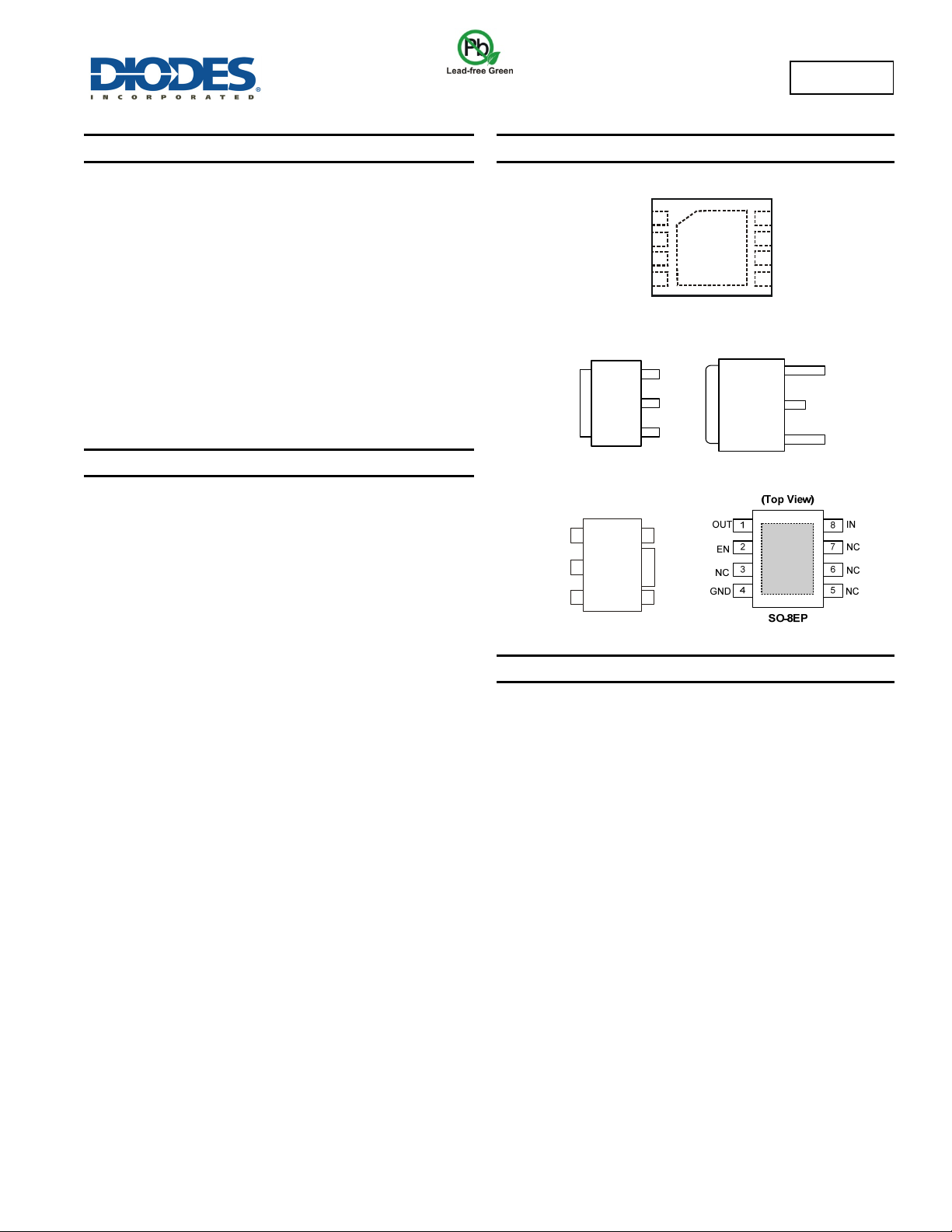

Pin Assignments
SOT223/SOT223R
( Top View )
3
2
1
2
3
2
1
TO252/TO252R
( Top View )
Applications
• Servers and Laptops
• FPGA and DSP Core or I/O Power
• TV, and Home Electrical Appliances
• Battery-Powered Devices
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
GND
OUT
IN
NC
EN
NC
NC
U-DFN3030-8
ADJ/NC
GND
(Top View)
1
2
3
4
8
7
6
5
(Top View)
EN
GND
IN
OUT
ADJ/NC
GND
SOT89-5
5
43
2
1
