AT97SC3205T-SDK2
AT97SC3205P-SDK2
Atmel TPM I
2
C/SPI Development Kit
USER GUIDE
Atmel I
2
C/SPI Demonstration Kit
Introduction
The Atmel
®
TPM™ Development Kit includes examples of how to use the Trusted Platform Module
(TPM) in an embedded and PC application. Source code is provided to enable an embedded designer to
make quick progress in understanding and utilizing the TPM.
The TPM Development Kits are based on the Atmel SAM4S ARM
®
with an added I
2
C or SPI TPM
device. The TPM demonstration code and evaluation software are included on a USB flash drive which

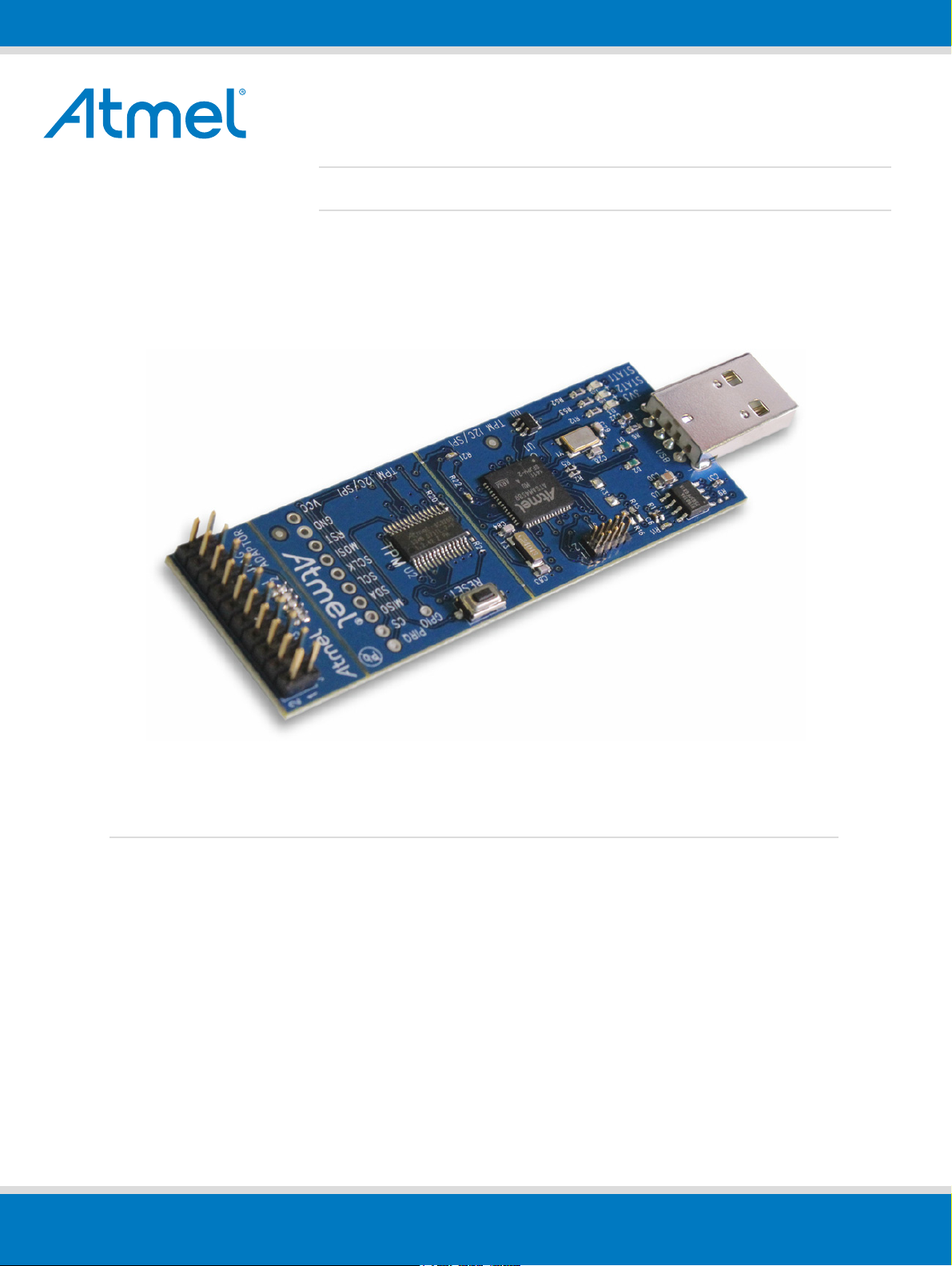

comes with the kits. The board includes a SPI or I
2
C TPM, a SAMS4 processor, a board reset button, a
JTAG connector, and detachable segments to allow for engineering system integration as shown in
Figure 1.
Complete SAM4S ARM documentation can be found on the Atmel web site at the following link:
http://www.atmel.com/Images/Atmel_11100_32-bit-Cortex-M4-Microcontroller_SAM4S_Datasheet.pdf
This TPM Development Kit User Guide documents the features specific to the TPM and references the
SAM4S ARM documentation where appropriate.
Atmel-8528D-TPM-I2C-SPI-Development-Kit-UserGuide_052014
