1 EB-AT91SAM3U-LCD Overview
The EB-AT91SAM3U-LCD is an extension board for the EM-AT91SAM3U Development Board (see Figure 1).

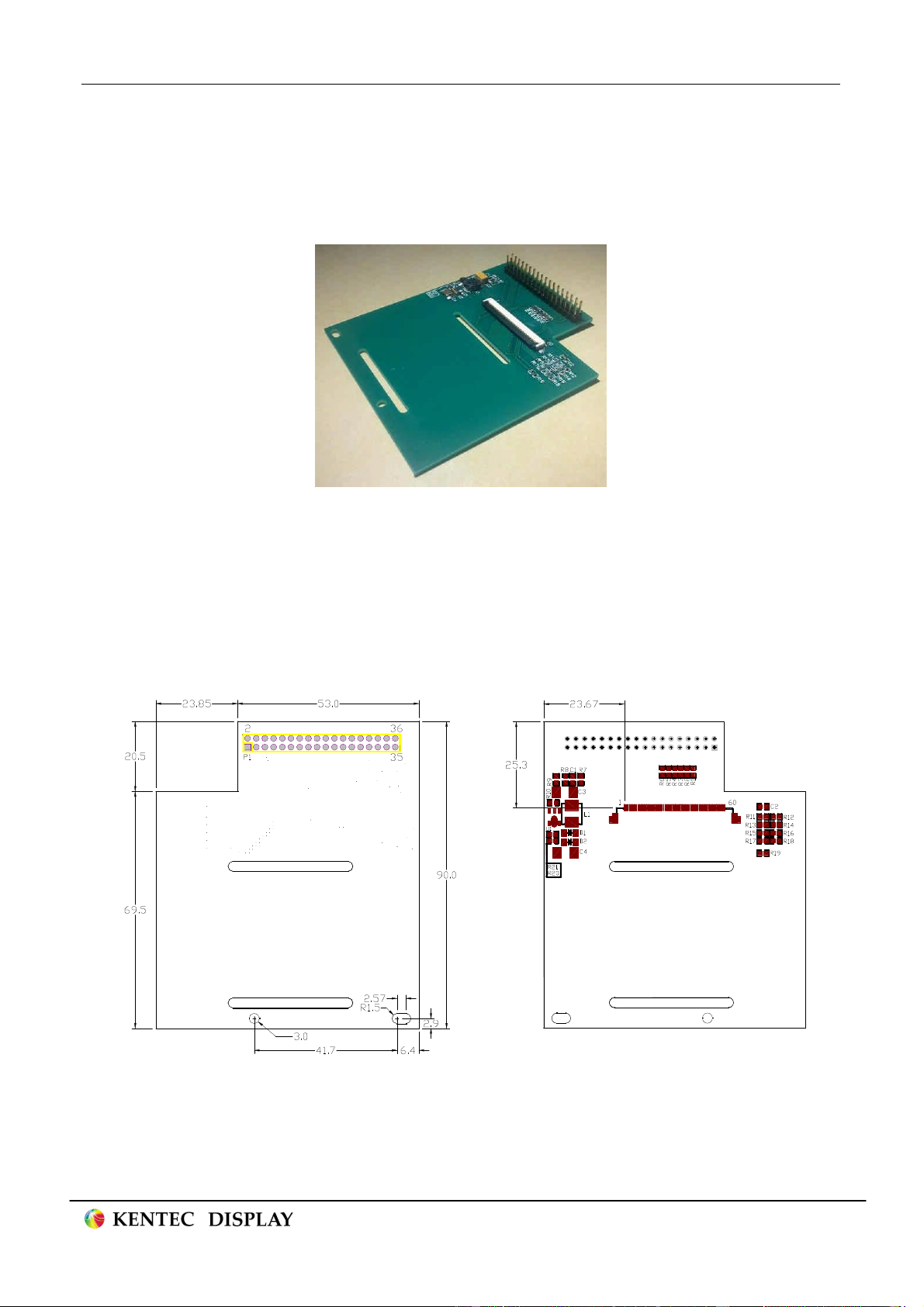

Figure 1. LCD connector expansion board for EM-AT91SAM3U
The expansion board has build in LED backlight driver circuit and 60pin FPC connector for the Kentec LCDs
(3.5 inch: K350QVG-V2-F; 4.3 inch: K430WQC-V3-FF; 5.0 inch: K50DWN2-V1-FF; 7.0 inch: K70DWN2-V1-FF;
9.0 inch: K90DWN2-V1-FF).
2 EB-AT91SAM3U-LCD Dimensions
Figure 2. Outline Dimensions (Top) Figure 2. LCD connector Location (Bottom)
EM-AT91SAM3U LCD Interface Expansion Board
(EB-AT91SAM3U-LCD) User Guide
