Rev. 0.1 5/14 Copyright © 2014 by Silicon Laboratories C8051F970DK-UG
C8051F970DK-UG
C8051F970 DEVELOPMENT KIT USER’S GUIDE
1. Introduction
The C8051F970 Development Kit provides an evaluation and development platform for the C8051F97x MCUs.
The board has a particular focus on capacitive sensing to highlight the 43 Capacitive Sense input channels
available on the C8051F970 MCU.
1.1. Key Features
The key features of the C8051F970 Development Kit are:
Silicon Labs EFM32 C8051F970 microcontroller with 32 kB flash and 8 kB RAM.
Capacitive sensing 4 x 5 button matrix and slider highlight the unique Capacitive Sense module.
Isolated power domains for the LEDs and the MCU to enable easy power measurement.
Port headers for prototyping of custom hardware.

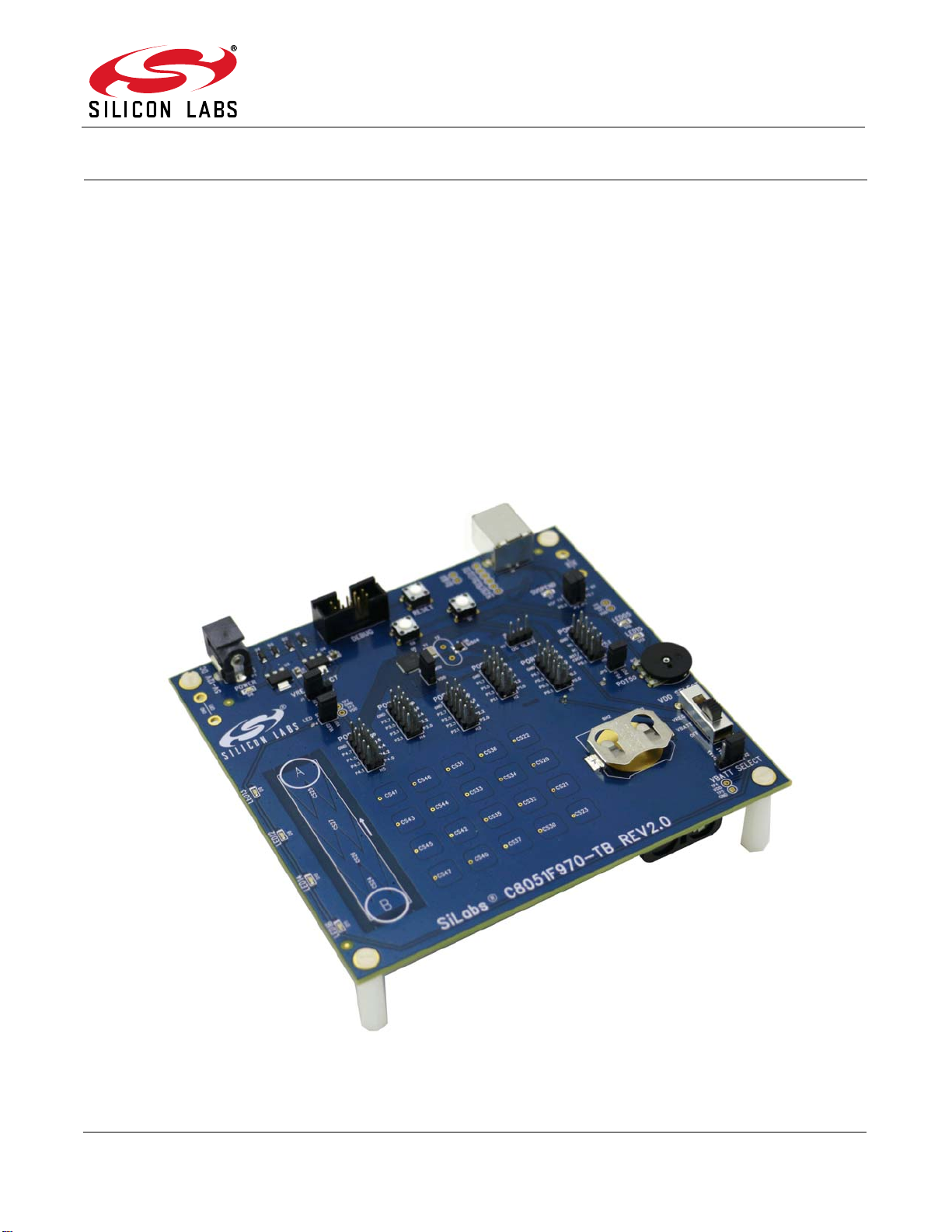

Figure 1. C8051F970 Target Board
