1
2
3
4
8
7
6
5
V
O
V
IN
L
1
D
1
C
1
C
2
R
2
R
1
C
3
R
3
C
5
C
4
User's Guide
SNVA261A–June 2007–Revised April 2013
AN-1667 LM2735X 8-Pin MSOP-PowerPAD Demo Board
1 Introduction
This demo board converts 3V to 5.5V input to 12V output for up to 500mA load current using the
LM2735X 1.6MHz DC-DC switching converter in the 8-Pin MSOP-PowerPAD package. This is a 2-layer
board using the bottom layer as a ground plane.
A bill of materials describes the parts used on this demo board. A schematic and layout have also been
included, along with measured performance characteristics. The above restrictions for the input voltage
are valid only for the demo board as shipped with the demo board schematic shown in Figure 1.
2 Operating Conditions
• V
IN
= 3V to 5.5V
• V
O
= 12V
• I
O
= 500mA

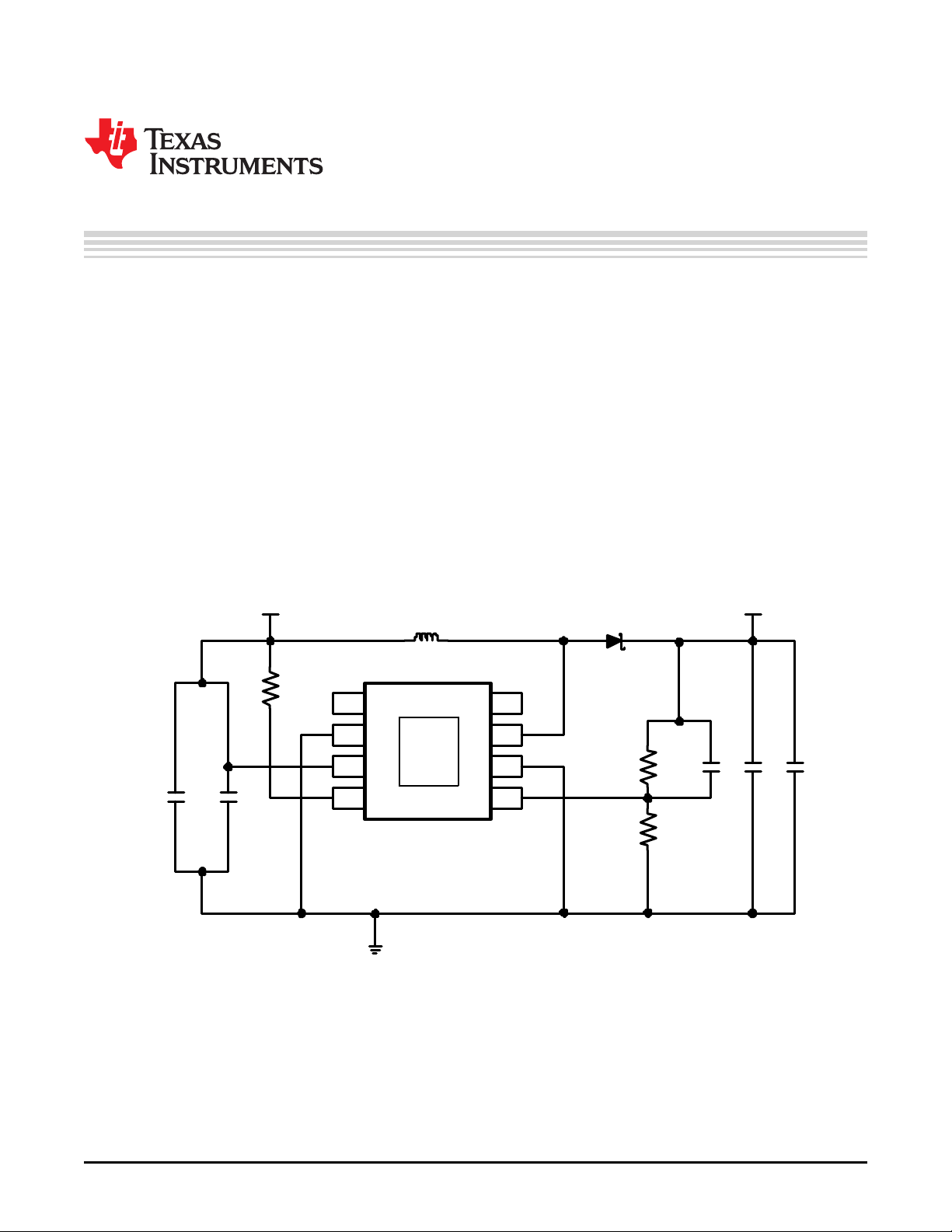

Figure 1. LM2735X 8-Pin MSOP-PowerPAD Schematic
All trademarks are the property of their respective owners.
1
SNVA261A–June 2007–Revised April 2013 AN-1667 LM2735X 8-Pin MSOP-PowerPAD Demo Board
Submit Documentation Feedback
Copyright © 2007–2013, Texas Instruments Incorporated
