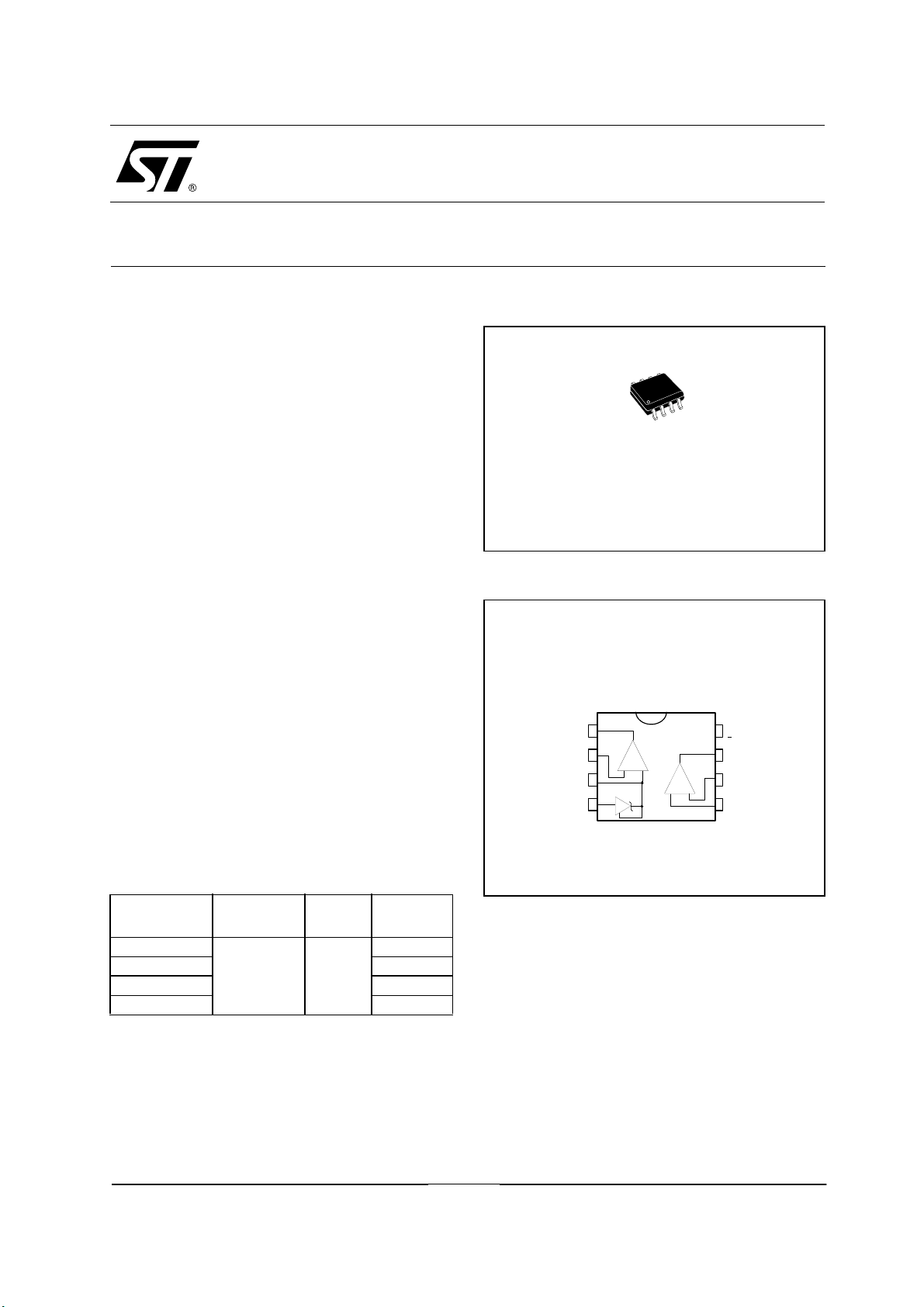

April 2004 1/7
OPERATIONAL AMPLIFIER
■ LOW INPUT OFFSET VOLTAGE : 0.5mV
typ.
■ LOW SUPPLY CURRENT : 350µA/op.
(@ V
CC
= 5V)
■ MEDIUM BANDWIDTH (unity gain) : 0.9MHz
■ LARGE OUTPUT VOLTAGE SWING : 0V to
(V
CC
- 1.5V)
■ INPUT COMMON MODE VOLTAGE RANGE
INCLUDES GROUND
■ WIDE POWER SUPPLY RANGE : 3 to 32V
±1.5 TO ±16V
■ 1.5kV ESD PROTECTION
■ VOLTAGE REFERENCE
■ FIXED OUTPUT VOLTAGE REFERENCE
2.5V
■ ±0.4% OR ±0.7% VOLTAGE PRECISION
■ SINK CURRENT CAPABILITY : 1 to 100mA
■ TYPICAL OUTPUT IMPEDANCE : 0.2Ω
DESCRIPTION
The TSM103W is a monolithic IC that includes
one independent op-amp and another op-amp for
which the non-inverting input is wired to a 2.5V
fixed Voltage Reference. This device offers both
space and cost savings in many applications such
as power supply management or data acquisition
systems.
ORDER CODE
PIN CONNECTIONS (top view)
Part Number
Temperature
Range
Package Packaging
TSM103WID
-40, +105°C SO-8
Tube
TSM103WIDT Tape & Ree
TSM103WAID Tube
TSM103WAIDT Tape & Reel
D
SO-8
(Plastic Micropackage)
1
2
3
4
5
6
7
8
Output 1
V
CC
+
Non-inverting Input 1
Inverting Input 1
Output 2
Non-inverting Input 2
Inverting Input 2
V
CC
-
OP1
OP2
+
+
-
-
VRef
TSM103W
Dual Operational Amplifier and Voltage Reference
Revision 3
