LM4121
www.ti.com
SNVS073C –APRIL 2000–REVISED APRIL 2013
LM4121 Precision Micropower Low Dropout Voltage Reference
Check for Samples: LM4121
1
FEATURES (LM4121-1.2)
DESCRIPTION
2
• Small SOT23-5 Package
The LM4121 is a precision bandgap voltage
• Low Voltage Operation
reference available in a fixed 1.25V and adjustable
• High Output Voltage Accuracy: 0.2%
version with up to 5 mA current source and sink
capability.
• Source and Sink Current Output: ±5 mA
• Supply current: 160 μA Typ.
This series reference operates with input voltages as
low as 1.8V and up to 12V consuming 160 µA (Typ.)
• Low Temperature Coefficient: 50 ppm/°C
supply current. In power down mode, device current
• Enable Pin
drops to less than 2 μA.
• Output Voltages: 1.25V and Adjustable
The LM4121 comes in two grades A and Standard.
• Industrial Temperature Range: −40°C to +85°C
The best grade devices (A) have an initial accuracy of
• (For Extended Temperature Range, −40°C to
0.2%, while the standard have an initial accuracy of
125°C, Contact Texas Instruments)
0.5%, both with a tempco of 50ppm/°C ensured from
−40°C to +125°C.
APPLICATIONS
The very low operating voltage, low supply current
and power-down capability of the LM4121 makes this
• Portable, Battery Powered Equipment
product an ideal choice for battery powered and
• Instrumentation and Process Control
portable applications.
• Automotive & Industrial
The device performance is ensured over the industrial
• Test Equipment
temperature range (−40°C to +85°C), while certain
• Data Acquisition Systems
specs are ensured over the extended temperature
range (−40°C to +125°C). Please contact Texas
• Precision Regulators
Instruments for full specifications over the extended
• Battery Chargers
temperature range. The LM4121 is available in a
• Base Stations
standard 5-pin SOT-23 package.
• Communications
• Medical Equipment

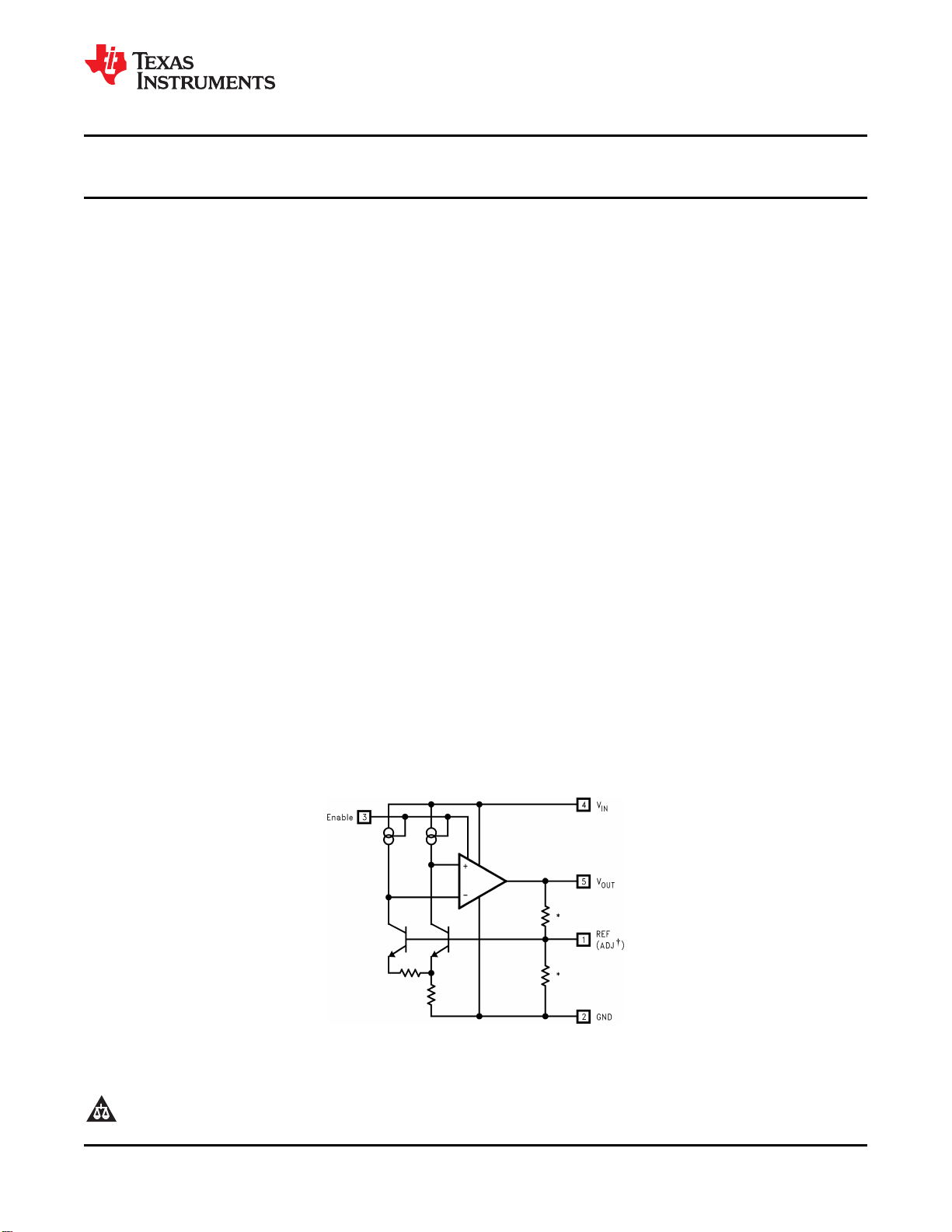

Block Diagram
* Resistors are removed on the LM4121-ADJ
†LM4121-ADJ only
Figure 1. LM4121-1.2 Block Diagram
