User's Guide
SNVA283A–September 2007–Revised May 2013
AN-1697 LM4510 Evaluation Board
1 Introduction
The LM4510 is a current mode synchronous step-up DC/DC converter designed for organic LED
applications. The evaluation board is designed to provide adjustable output voltage from a single Li-Ion
battery. By default, output voltage is set to 16 V. Output voltage can be configured by choosing R
F1
and
R
F2
. Loop compensation is achieved by R
C
, C
C1
and C
C2
. R
D
provides the option of enabling LM4510 from
V
IN
or external signal. For more details on the application information, see the device-specific data sheet.
2 Operating Conditions
• V
IN
range: 2.7 V ≤ V
IN
≤ 5.5 V
• 10 Pin WSON package
• Ambient temperature (T
A
) range: -40°C to +85°C
• Junction temperature (T
J
) range: -40°C to +125°C
3 Schematic

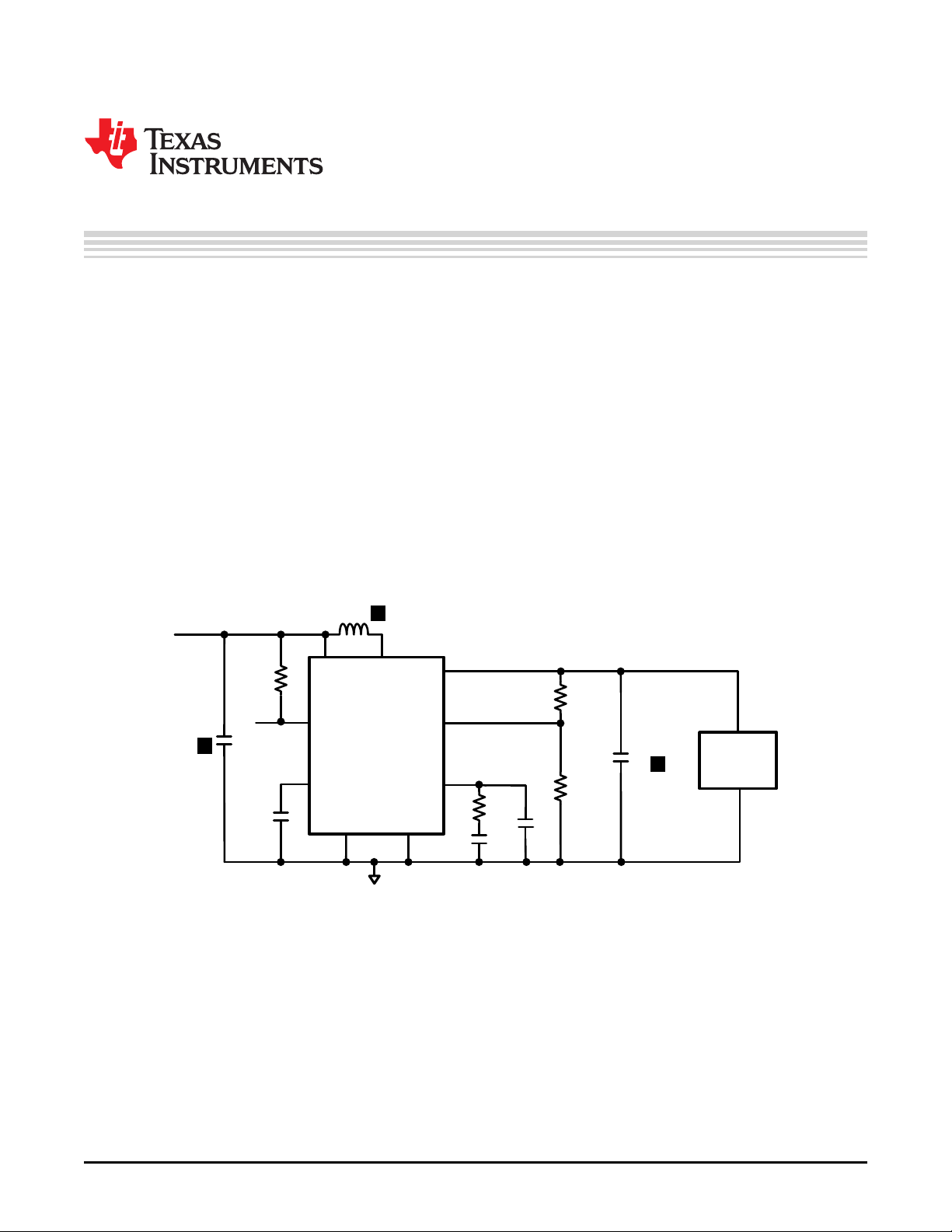

Figure 1. LM4510 Circuit Schematic
All trademarks are the property of their respective owners.
1
SNVA283A–September 2007–Revised May 2013 AN-1697 LM4510 Evaluation Board
Submit Documentation Feedback
Copyright © 2007–2013, Texas Instruments Incorporated
