EVAL-AD7293SDZ User Guide
UG-817
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the AD7293 12-Bit Power Amplifier Current Controller with ADC, DACs,
Temperature and Current Sensors
Rev. 0 | Page 1 of 40
FEATURES
Full featured evaluation board for AD7293
Graphical user interface (GUI) software with USB control
Various link options
EVALUATION KIT CONTENTS
AD7293 evaluation board
AD7293 evaluation board software CD
EQUIPMENT NEEDED
EVAL-SDP-CB1Z
Bench top power supply and connector cables
APPLICATIONS
GaN and GaAs power amplifier (PA) monitoring and controls
Base station power amplifiers
General-purpose system monitoring and controls
ONLINE RESOURCES
Documents Needed
AD7293 data sheet
AD7293 evaluation board software
Design and Integration Files
Schematics, layout files, bill of materials
GENERAL DESCRIPTION
This user guide describes the evaluation board for the AD7293,
which is a 12-bit monitoring device with a multichannel ADC,
DACs, and temperature and current sensors.
For full details on the AD7293, see the AD7293 data sheet and
consult it when using the EVAL-AD7293SDZ. The configuration
of the various link options is explained in the Evaluation Board
Hardware section.
The EVAL-AD7293SDZ requires the EVAL-SDP-CB1Z board.
The EVAL-AD7293SDZ interfaces to the USB port of the PC via
the EVAL-SDP-CB1Z. Software that allows the user to easily
program the AD7293 is available with the EVAL-AD7293SDZ.

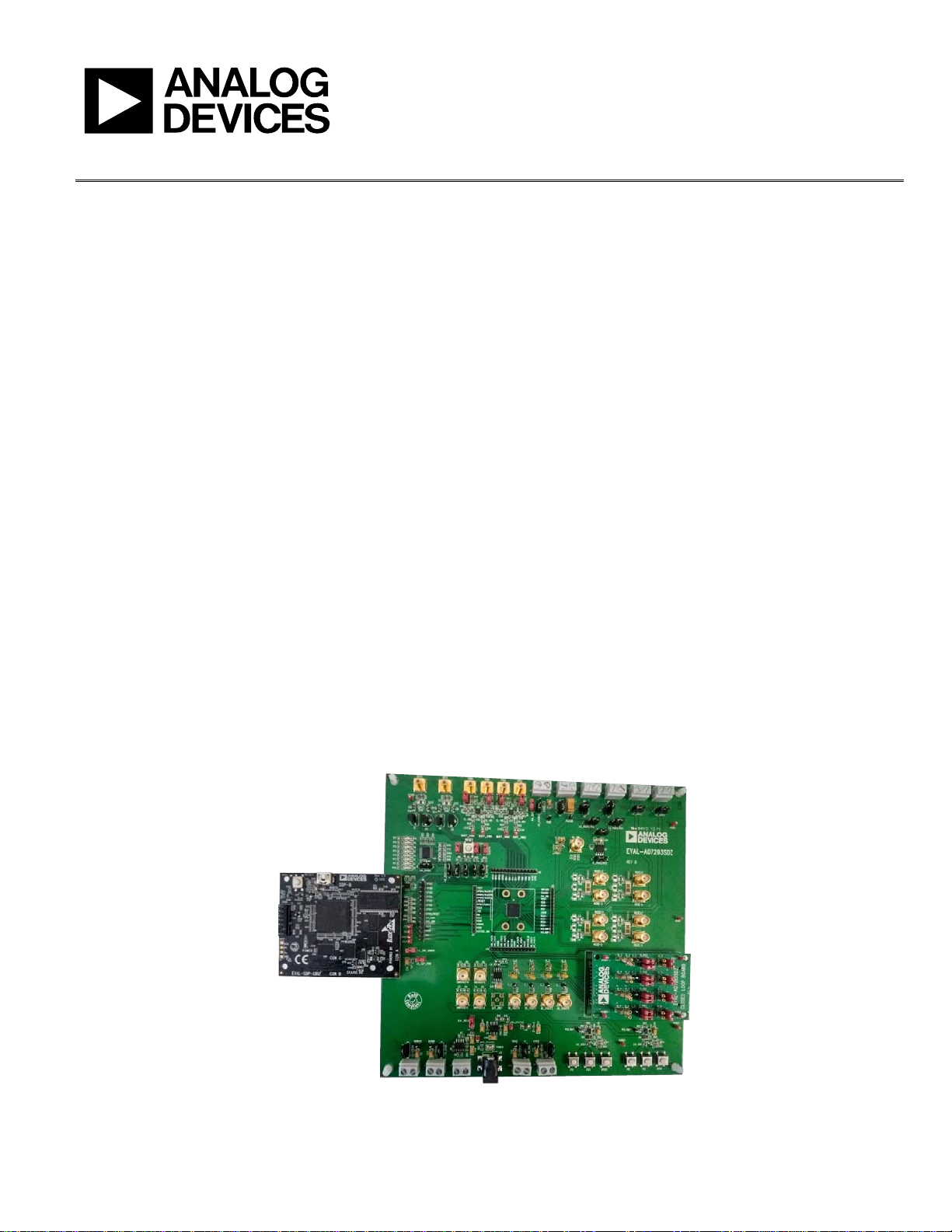

EVAL-AD7293SDZ AND EVAL-SDP-CB1Z CONNECTION PHOTOGRAPH
12998-001
Figure 1.
