User's Guide
SLLU212B–January 2015–Revised July 2015
TUSB211RPTR Evaluation Module
The TUSB211 is a High-Speed signal conditioner designed to compensate for ISI signal loss in a
transmission channel. The TUSB211RPTREVM is designed to provide a simple means of demonstrating
the signal conditioning capability of the TUSB211. The EVM is pre-configured and simply connects the
Type B connector on the EVM to the Type A receptacle found on a Host PC with a standard USB cable, a
USB device plugs into the Type A receptacle of the EVM board. The TUSB211RPTREVM requires no
external power as the EVM will be powered from VBUS sourced from the Host port. Two LEDs indicate
when a device is connected as well as when a high-speed connection is made and the TUSB211 is
enabled.

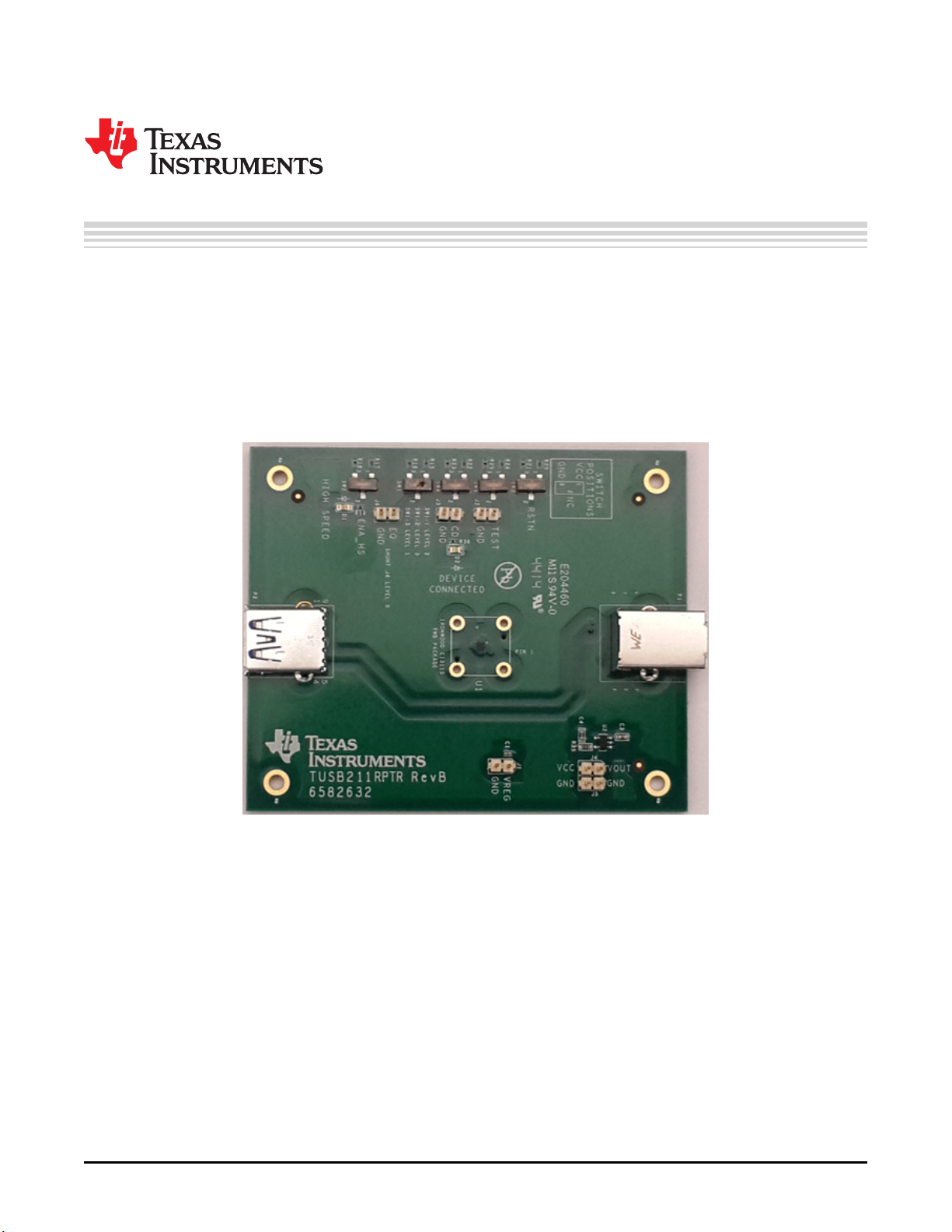

Figure 1. TUSB211RPTREVM Top View
Contents
1 Configuration Switches...................................................................................................... 2
2 Test Headers................................................................................................................. 2
3 EVM Operation............................................................................................................... 3
4 USB 2.0 High-Speed Eye Diagram Testing.............................................................................. 3
List of Figures
1 TUSB211RPTREVM Top View ............................................................................................ 1
