ZXCT1008Q
Document number: DS36890 Rev. 2 - 2
1 of 9
www.diodes.com
June 2015
© Diodes Incorporated
ZXCT1008Q
Q
A Product Line of
Diodes Incorporated
AUTOMOTIVE GRADE 20V HIGH-SIDE CURRENT MONITOR
Description
The ZXCT1008Q is a high side current sense monitor. Using this
device eliminates the need to disrupt the ground plane when sensing a
load current.
It takes a high side voltage developed across a current shunt resistor
and translates it into a proportional output current. A user defined
output resistor scales the output current into a ground-referenced
voltage.
The wide input voltage range of 20V down to as low as 2.5V makes it
suitable for a range of applications. The ability to withstand high
voltage transients and reverse polarity connection makes this part very
suitable for automotive and other transient rich environment.
The ZXCT1008Q has been qualified to AEC-Q100 Grade 1 and is
Automotive Grade supporting PPAPs.
Features
Low Cost, Accurate High-Side Current Sensing
-40 to +125°C Temperature Range
Up to 500mV Sense Voltage
2.5V to 20V Supply Range
1% Typical Accuracy
SOT23
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Automotive Grade
Qualified to AEC-Q100 Standards for High Reliability
PPAP Capable (Note 4)
Applications
Automotive Current Measurement
Automotive DC Motor Stall Detection
Over Current Monitor

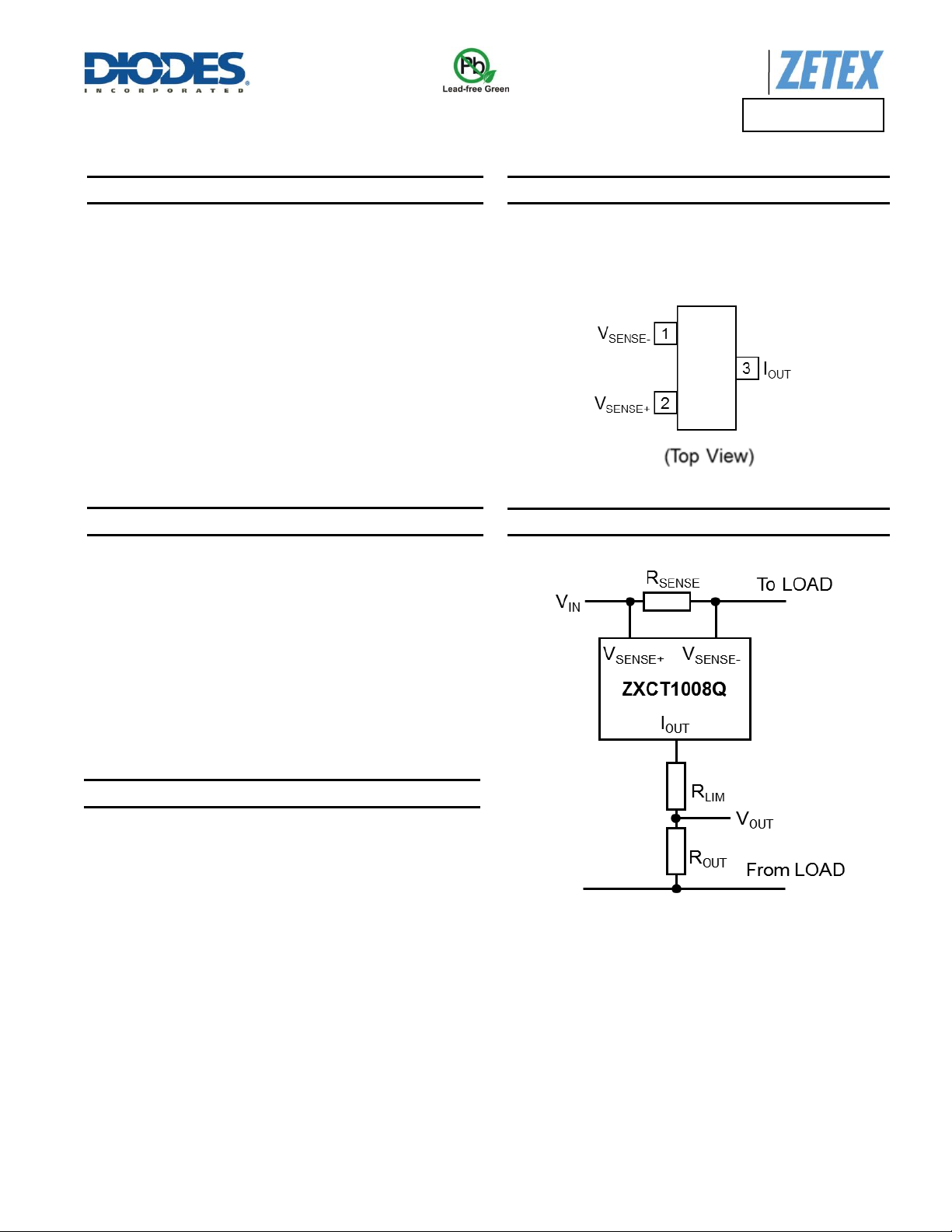

Pin Assignments
SOT23
Application Circuit
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. - and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q100 qualified and are PPAP capable. Automotive, AEC-Q100 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
