256-Position, One-Time Programmable,
Dual-Channel, I
2
C Digital Potentiometers
Data Sheet
AD5172/AD5173
Rev. I Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2003–2013 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
2-channel, 256-position potentiometers
One-time programmable (OTP) set-and-forget resistance
setting provides a low cost alternative to EEMEM
Unlimited adjustments prior to OTP activation
OTP overwrite allows dynamic adjustments with user-
defined preset
End-to-end resistance: 2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ
Compact 10-lead MSOP: 3 mm × 4.9 mm
Fast settling time: t
S
= 5 μs typical on power-up
Full read/write of wiper register
Power-on preset to midscale
Extra package address decode pins: AD0 and AD1 (AD5173 )
Single supply: 2.7 V to 5.5 V
Low temperature coefficient: 35 ppm/°C
Low power: I
DD
= 6 μA maximum
Wide operating temperature: −40°C to +125°C
APPLICATIONS
Systems calibration
Electronics level setting
Mechanical trimmers replacement in new designs
Permanent factory PCB setting
Transducer adjustment of pressure, temperature, position,
chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment

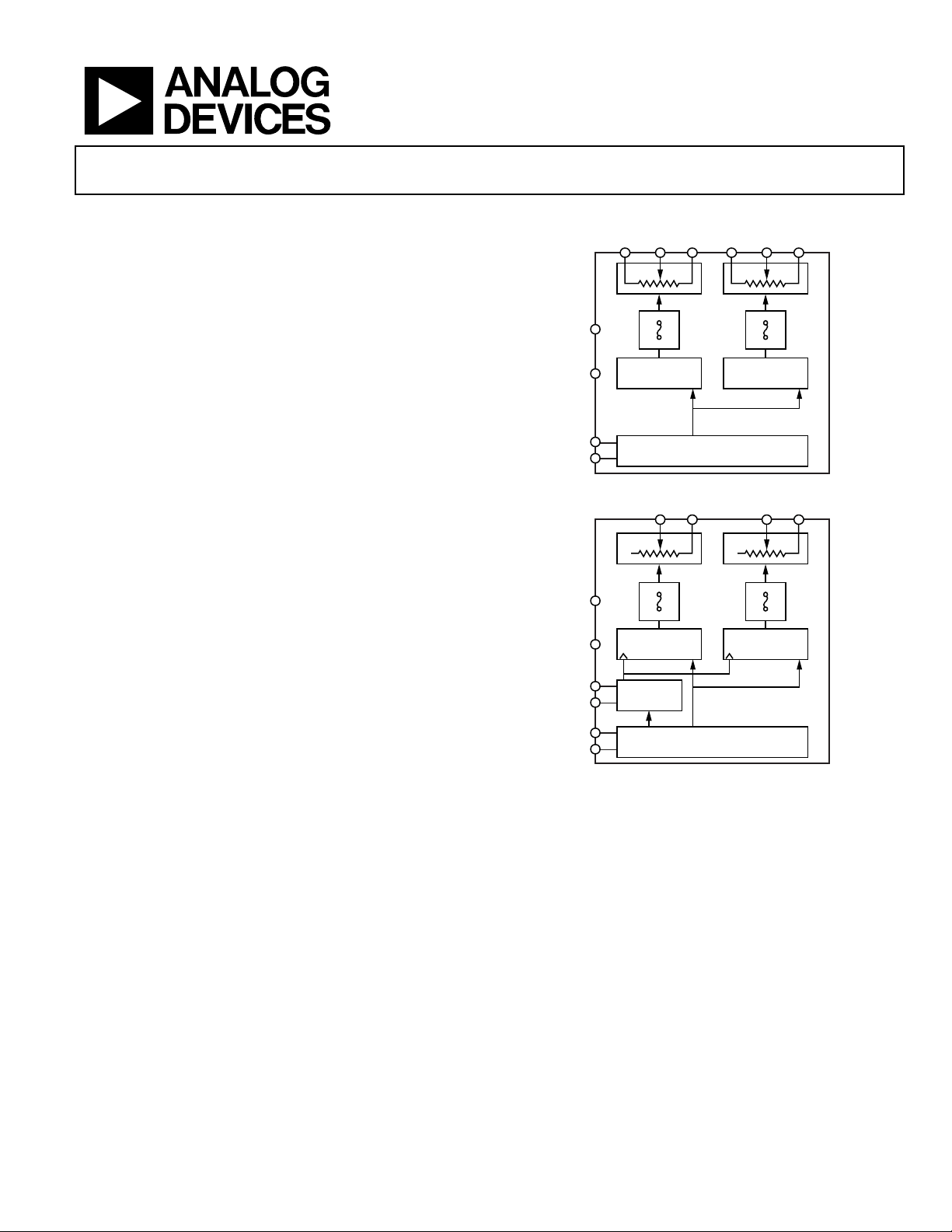

FUNCTIONAL BLOCK DIAGRAMS
A
1
V
DD
GND
SDA
SCL
W1
RDAC
REGISTER 1
SERIAL INPUT
REGISTER
B1 A2 W2
RDAC
REGISTER 2
B2
FUSE
LINKS
12
/
8
0
4103-001
Figure 1. AD5172 Functional Block Diagram
V
DD
GND
SDA
SCL
AD0
AD1
W1
RDAC
REGISTER 1
ADDRESS
DECODE
SERIAL INPUT
REGISTER
B1 W2
RDAC
REGISTER 2
B2
FUSE
LINKS
12
/
8
04103-002
Figure 2. AD5173 Functional Block Diagram
GENERAL DESCRIPTION
The AD5172/AD5173 are dual-channel, 256-position, one-time
programmable (OTP) digital potentiometers
1
that employ fuse
link technology to achieve memory retention of resistance
settings. OTP is a cost-effective alternative to EEMEM for users
who do not need to program the digital potentiometer setting
in memory more than once. These devices perform the same
electronic adjustment function as mechanical potentiometers or
variable resistors but with enhanced resolution, solid-state reliabil-
ity, and superior low temperature coefficient performance.
The AD5172/AD5173 are programmed using a 2-wire, I
2
C®-
compatible digital interface. Unlimited adjustments are allowed
before permanently setting the resistance value. During OTP
activation, a permanent blow fuse command freezes the wiper
position (analogous to placing epoxy on a mechanical trimmer).
Unlike traditional OTP digital potentiometers, the AD5172/
AD5173 have a unique temporary OTP overwrite feature that
allows for new adjustments even after a fuse is blown. However,
the OTP setting is restored during subsequent power-up condi-
tions. This allows users to treat these digital potentiometers as
volatile potentiometers with a programmable preset.
1
The terms digital potentiometer, VR, and RDAC are used interchangeably.
