Programmable Frequency Sweep and
Output Burst Waveform Generator
Data Sheet
AD5930
Rev. C Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2005–2015 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Programmable frequency profile
No external components necessary
Output frequency up to 25 MHz
Burst and listen capability
Preprogrammable frequency profile minimizes number of
DSP/µcontroller writes
Sinusoidal/triangular/square wave outputs
Automatic or single pin control of frequency stepping
Waveform starts at known phase
Increments at 0° phase or phase continuously
Power-down mode: 20 µA
Power supply: 2.3 V to 5.5 V
Automotive temperature range: −40°C to +125°C
20-lead pb-free TSSOP
APPLICATIONS
Frequency sweeping/radar
Network/impedance measurements
Incremental frequency stimulus
Sensory applications
Proximity and motion
BFSK
Frequency bursting/pulse trains
GENERAL DESCRIPTION
The AD5930
1
is a waveform generator with programmable
frequency sweep and output burst capability. Utilizing
embedded digital processing that allows enhanced frequency
control, the device generates synthesized analog or digital
frequency-stepped waveforms. Because frequency profiles
are preprogrammed, continuous write cycles are eliminated
and thereby free up valuable DSP/µcontroller resources.
Waveforms start from a known phase and are incremented
phase continuously, which allows phase shifts to be easily
determined. Consuming only 8 mA, the AD5930 provides a
convenient low power solution to waveform generation.
The AD5930 can be operated in a variety of modes. In
continuous output mode, the device outputs the required
frequency for a defined length of time and then steps to the
next frequency. The length of time the device outputs a
particular frequency is either preprogrammed and the device
increments the frequency automatically, or, alternatively, is
incremented externally via the CTRL pin. In burst mode, the
device outputs its frequency for a length of time and then
returns to midscale for a further predefined length of time
before stepping to the next frequency. When the MSBOUT pin
is enabled, a digital output is generated.
(continued on Page 3)

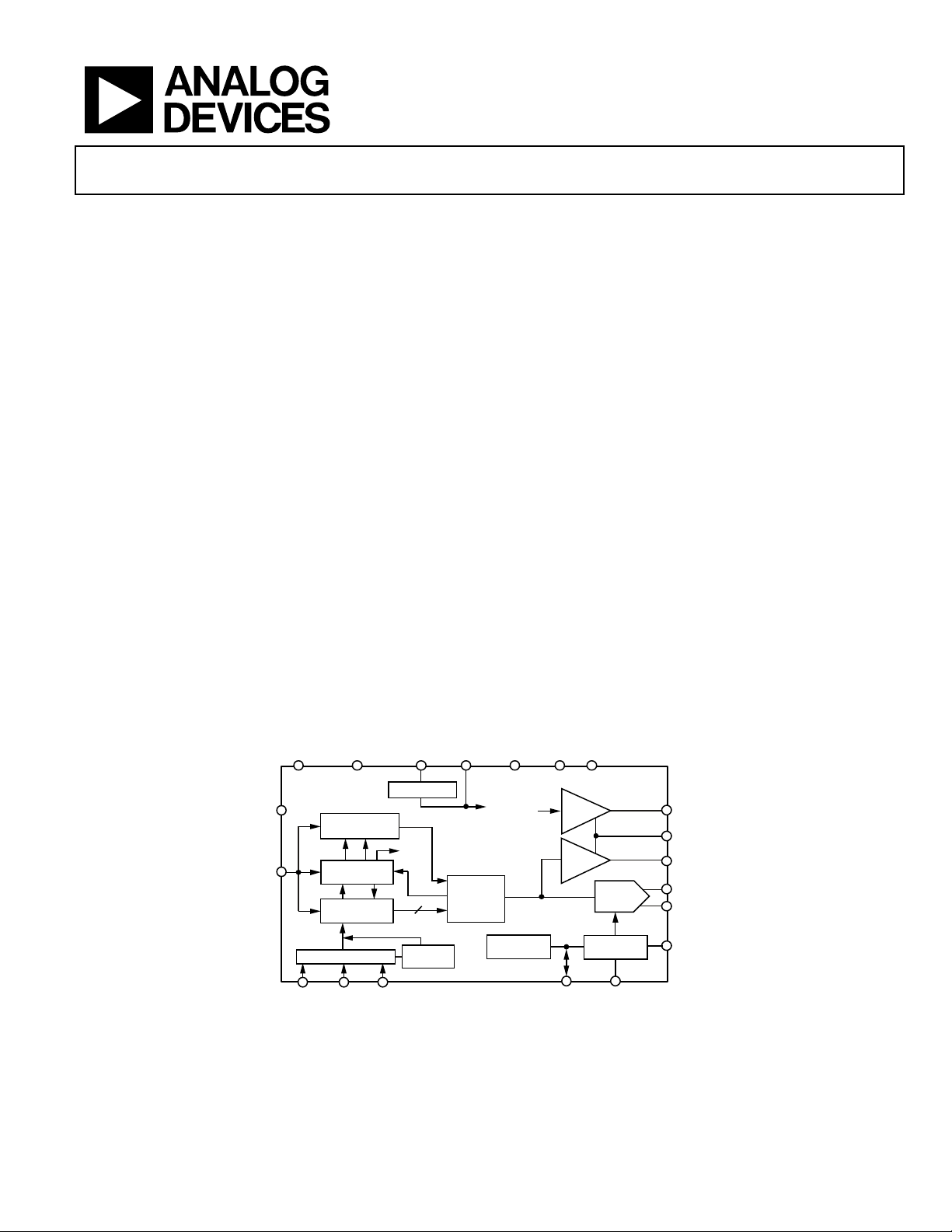

FUNCTIONAL BLOCK DIAGRAM
CONTRO
L
REGISTER
D
ATA
24
INCR
SYNC
AND CONTROL
SYNCOUT
DGND O/P
MSBOUT
IOUTB
IOUT
COMP
MCLK
CTRL
INCREMENT
CONTROLLER
FREQUENCY
CONTROLLER
SERIAL INTERF
ACE
OUTPUT BURST
CONTROLLER
INTERRUPT
AD5930
S
TANDBY
DVDD CAP/2.5V DGND AGND AVDD
REF FSADJUST
24-BIT
PIPELINED
DDS CORE
DAT
A
DATA
SYNC
BUFFER
BUFFER
10-BIT
DAC
FSYNC SCLK SDATA
FULL-SCALE
CONTROL
ON-BOARD
REFERENCE
REGULAT
OR
VCC
2.5V
05333-001
Figure 1.
1
Protected by US Patent Number 6747583.
