CY22800
Universal Programmable Clock Generator
(UPCG)
Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600
Document Number: 001-07704 Rev. *G Revised December 10, 2014
Universal Programmable Clock Generator (UPCG)
Features
■ Spread spectrum, VCXO, and frequency select
■ Input frequency range:
❐ Crystal: 8–30 MHz
❐ CLKIN: 0.5–100 MHz
■ Output frequency:
❐ Commercial: 1–200 MHz
❐ Industrial: 1–166 MHz
■ Integrated phase-locked loop
■ Low jitter, high accuracy outputs
■ 3.3 V operation
■ 8-pin SOIC package
Functional Description
The CY22800 is a multi-function clock generator that supports
various applications in consumer and communications markets.
The device uses the Cypress proprietary PLL along with spread
spectrum and VCXO technology to make it one of the most
versatile clock synthesizers in the marketplace. The CY22800 is
a field-programmable synthesizer that can be programmed using
an easy-to-use programmer dongle, CY36800, with one of many
predefined configuration files for fast sample generation of
prototype builds. The CY22800 is a reprogrammable device that
can be programmed up to 100 times. The latest configurations
available for this device are summarized in CY22800
Configurations on page 5.
For a complete list of related documentation, click here.
XOUT
PLL
OSC
Q
P
VCO
VDD
VSS
CLKC
FS1
FS0
OUTPUT
DIVIDER
CLKB
(with modulation control)
XIN/CLKIN
CLKA
FS2
VCXO

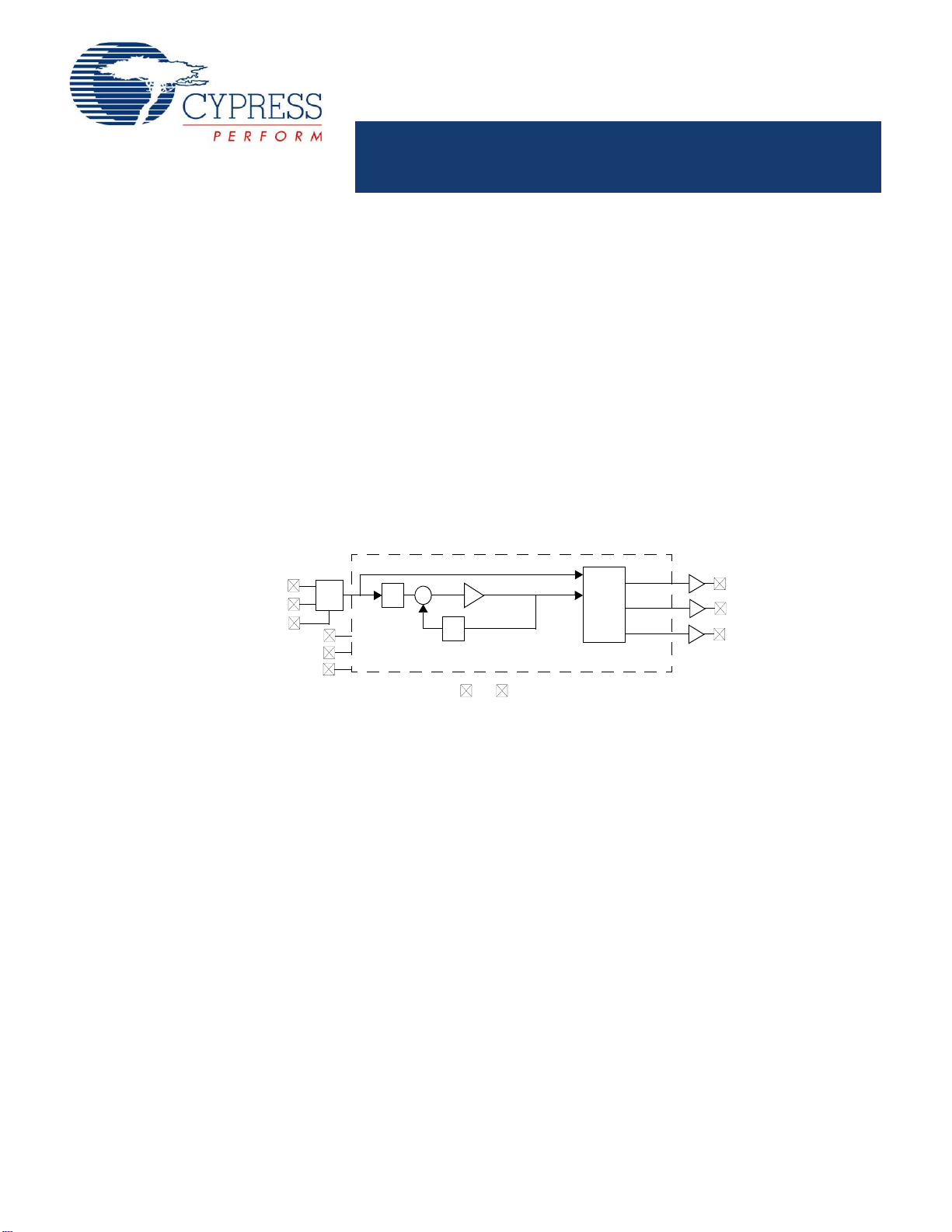

Logic Block Diagram
