CY2292
Three-PLL General-Purpose
EPROM-Programmable Clock Generator
Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600
Document Number: 38-07449 Rev. *M Revised December 7, 2017
Three-PLL General -Purpose EPROM- Programmable Clo ck Generator
Features
■ Three integrated phase locked loops (PLLs)
■ Erasable programmable read only memory (EPROM)
programmability
■ Factory programmable (CY2292) or field programmable
(CY2292F) device options
■ Low-skew, low-jitter, high accuracy outputs
■ Power management options (shutdown, OE, suspend)
■ Frequency select option
■ Smooth slewing on CPUCLK
■ Configurable 3.3 V or 5 V operation
■ 16-pin small-outline integrated circuit (SOIC) package
(CY2292F also in TSSOP)
Benefits
■ Generates up to three custom frequencies from one external
source
■ Easy customization and fast turnaround
■ Programming support available for all opportunities
■ Supports low power applications
■ Eight user selectable frequencies on CPU PLL
■ Allows downstream PLLs to stay locked on CPUCLK output
■ Industry standard packaging saves on board space
Functional Description
For a complete list of related documentation, click here.
Selector Guide
Part Number Input Frequency Range Output Frequency Range Specifics
CY2292SC, SL, SXC, SXL 10 MHz to 25 MHz (external crystal)
1 MHz to 30 MHz (reference clock)
76.923 kHz to 100 MHz (5 V)
76.923 kHz to 80 MHz (3.3 V)
Factory programmable
Commercial temperature
CY2292SI, SXI 10 MHz to 25 MHz (external crystal)
1 MHz to 30 MHz (reference clock)
76.923 kHz to 90 MHz (5 V)
76.923 kHz to 66.6 MHz (3.3 V)
Factory programmable
Industrial temperature
CY2292F, FXC, FZX 10 MHz to 25 MHz (external crystal)
1 MHz to 30 MHz (reference clock)
76.923 kHz to 90 MHz (5 V)
76.923 kHz to 66.6 MHz (3.3 V)
Field programmable
Commercial temperature
CY2292FXI, FZXI 10 MHz to 25 MHz (external crystal)
1 MHz to 30 MHz (reference clock)
76.923 kHz to 80 MHz (5 V)
76.923 kHz to 60.0 MHz (3.3 V)
Field programmable
Industrial temperature

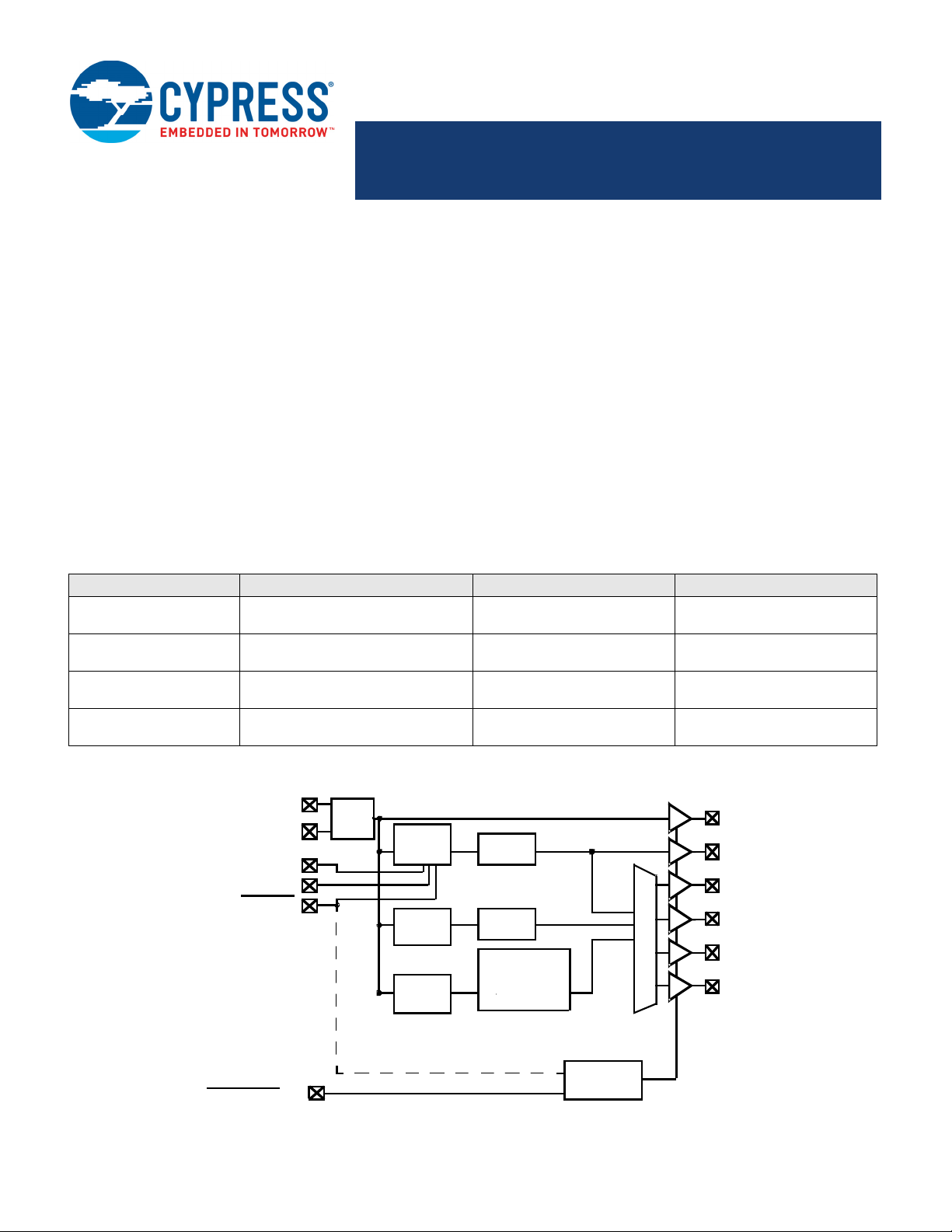

Logic Block Diagram
XTALIN
XTALOUT
S2 /
SUSPEND
S1
S0
SHUTDOWN
/
CONFIG
EPROM
OSC.
XBUF
CPLL
SPLL
UPLL
CPUCLK
CLKA
CLKB
CLKC
CLKD
MUX
OE
/1,2,4
/1,2,3,4,5,6
/8,10,12,13
/20,24,26,40
/48,52,96,104
/1,2,4,8
(8 BIT)
(8 BIT)
( 10 BIT)
